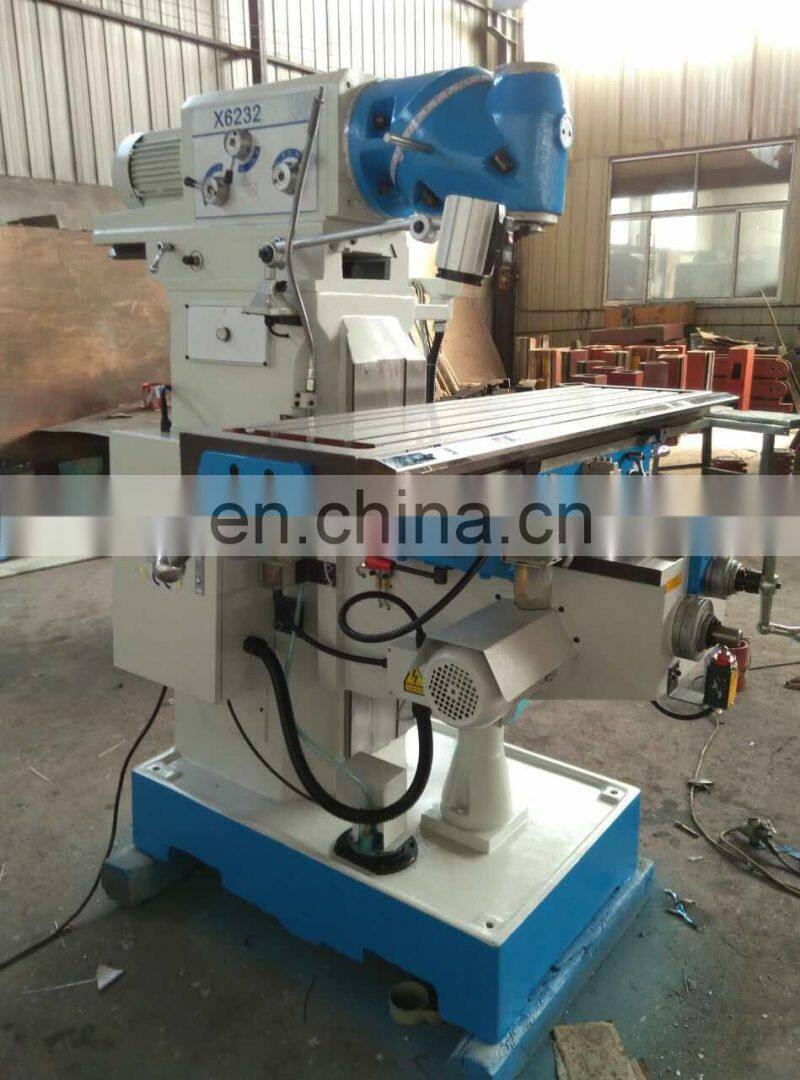

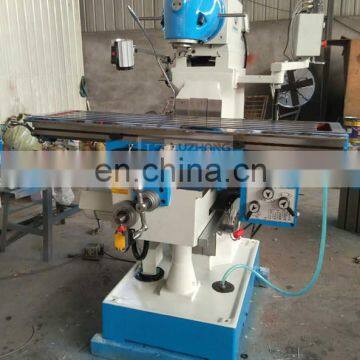

X6232 Universal Swivel Rotary Head Milling Machine price
The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two grade rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing mold and shell;
4.Table X,Y axis motorized feed
Product main technical parameters:
Specifications |
Units |
X6232 |
Spindle taper |
|
7:24 ISO40 |
Distance from spindle nose to table surface |
mm |
120-490 |
Distance from spindle axis to column surface |
mm |
0-500 |
Spindle speed range(steps) |
rpm |
35-1660 |
Vertical milling head rotary angle |
° |
360 |
Table size |
mm |
1250x250 |
Table travel |
mm |
600x320x370 |
Table motorized feed speed (longitudinal /cross) |
Mm/min |
(8 steps)22-555 (fast 810) |
Table vertical lifting speed |
Mm/min |
560 |
T slot |
|
3-14-70 |
Main motor power |
KW |
2.2 |
Motorized feed motor power |
KW |
0.75 |
Lifting motor power |
KW |
0.75 |
Coolant pump motor power |
W |
90 |
Coolant pump liquid |
L/min |
25 |
Overall dimensions |
mm |
1700x1560x1750 |
N.W./G.W. |
Kg |
1320/1420 |
|
|
|
| X5032 Vertical Milling Machine | X6432 Swivel Head Milling | 5HW Turret Milling Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
