lathe maching price CW6163E Heavy duty lathe maching
- 100 Set / Sets per Month
- Any Port of China
- T/T Credit Card
- Chinese metal lathe CW61100L Heavy duty lathe
- lathe milling machine C61160G Heavy duty lathe
- High quality standard X5032 vertical milling machine with table size 320*1325mm
- Horizontal Milling Machine X6132BH Milling Machine Manufacturer
- Metal Milling Machine X5036B Universal Vertical Mill Machine
- High quality horizontal milling machine X6132 Universal milling machine price
Product Details
Brand Name: | LUZHONG | Place of Origin: | China | Model Number: | CW6163E, CW6163E |
Year: | 2019 | Condition: | Used |
Product Description
CW6163E/CW6180E/CW61100E Heavy duty lathe

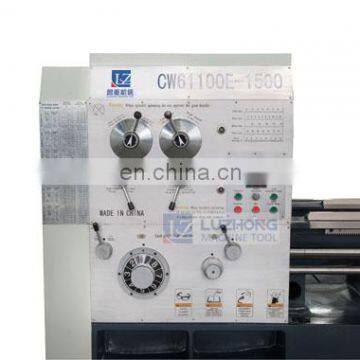

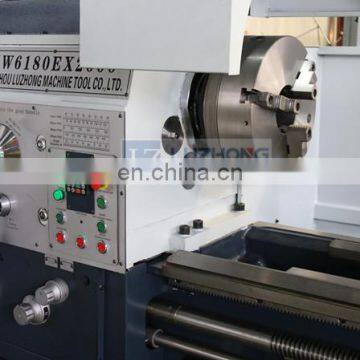

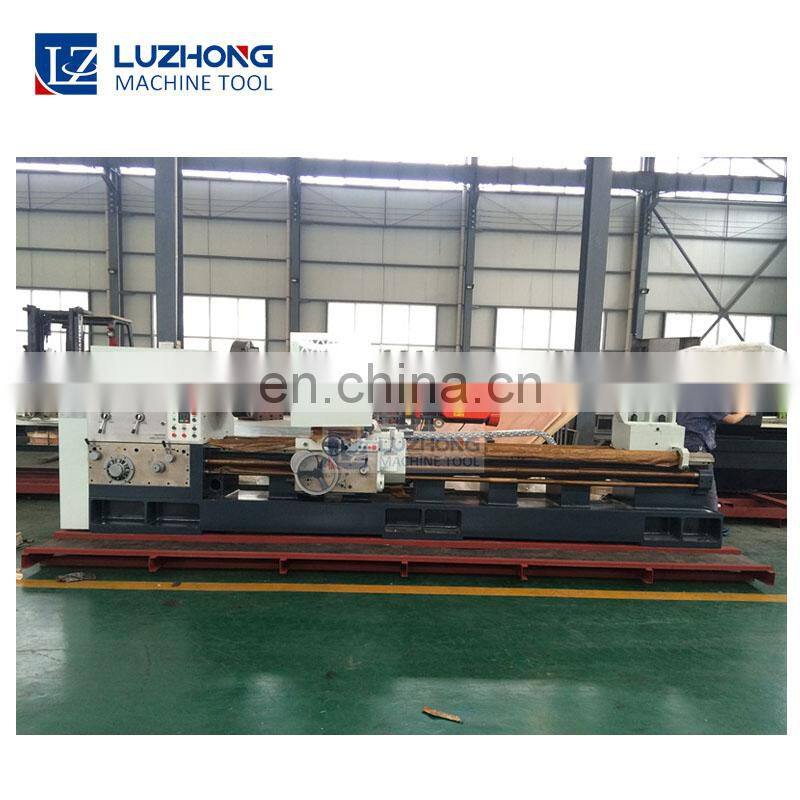

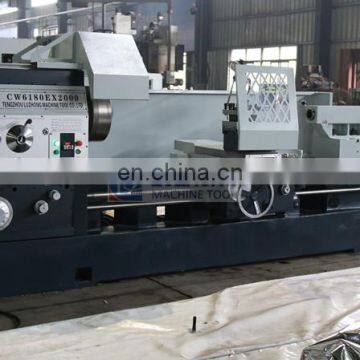

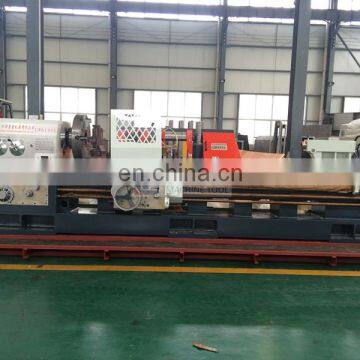

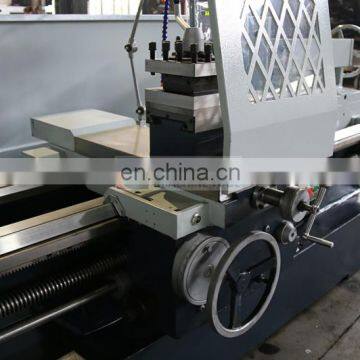

Product picture:
Product main features and uses:
1.This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
2.The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
3.The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
4.This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.
Product main technical specification:
Item | Specifications | Units | CW6163E | CW6180E | CW61100E |
Machining range | Max.swing over bed | mm | 630 | 800 | 1000 |
Max.swing over cross slide | mm | 350 | 500 | 700 | |
Max.turning length | mm | 1000-12000 | 1000-12000 | 1000-12000 | |
Bed width | mm | 550 | 550 | 550 | |
Spindle | Spindle nose code |
| C11(D11) | C11(D11) | C11(D11) |
Diameter of the spindle | mm | 105 | 105 | 105 | |
Spindle inside taper | mm | Metric 120 1:20 | Metric 120 1:20 | Metric 120 1:20 | |
Range of spindle speeds | r/min | 10-700 | 10-700 | 10-700 | |
Spindle speed series |
| four gears to change speed ,no grade to change frequency | four gears to change speed ,no grade to change frequency | four gears to change speed ,no grade to change frequency | |
Feeding system | Longitudinal and transverse feeding number range | mm/r | 56;0.1-12 | 56;0.1-12 | 56;0.1-12 |
Screw pitch |
| 12 | 12 | 12 | |
Number range of the thread under Metric system | mm | 44;1-120 | 44;1-120 | 44;1-120 | |
Number range of the thread under British system | mm | 26;14-1 inch | 26;14-1 inch | 26;14-1 inch | |
Number range of the module thread | mm | 45;M0.5-M60 | 45;M0.5-M60 | 45;M0.5-M60 | |
Number range of the diametric thread | mm | 24 28-1 | 24 28-1 | 24 28-1 | |
Slide fast moving speed | mm/ min | 4000 | 4000 | 4000 | |
Knife rest | Max cross travel of turret | mm | 420 | 420 | 420 |
Max travel of compound slide | mm | 200 | 200 | 200 | |
Tool section size | mm | 32*32 | 32*32 | 32*32 | |
Tailstock | Sleeve diameter of tailstock | mm | 100 | 100 | 100 |
Sleeve trip of tailstock | mm | 250 | 250 | 250 | |
Cone hole taper tailstock’s sleeve | Morse | Morse 6 | Morse 6 | Morse 6 | |
Main motor power | kw | 11 | 11 | 11 | |
Size | L*W*H | mm | 4000*1320*1500 | 4000*1320*1500 | 4000*1320*1500 |
Weight | Net weight | kg | 4050 | 4050 | 4050 |
