Metal Universal CJM250 Small Lathe Machine

Metal Universal CJM250 Small Lathe Machine photo-1
Metal Universal CJM250 Small Lathe Machine photo-2
Metal Universal CJM250 Small Lathe Machine photo-3
Metal Universal CJM250 Small Lathe Machine photo-4
Metal Universal CJM250 Small Lathe Machine photo-5
Metal Universal CJM250 Small Lathe Machine photo-6
Metal Universal CJM250 Small Lathe Machine photo-7
US$ 1,050 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Luzhong Machine
Place of Origin:
Shandong, China
After-sales Service Provided:
No overseas service provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Luzhong Machine
Place of Origin Shandong, China
After-sales Service Provided No overseas service provided
Condition New

Metal universal CJM250 Small lathe machine

Product Description

 Metal universal CJM250 Small lathe machine

1..Most economial,widely useful hobby lathe.
2.Power longitudinal  feed allows threading.
3.V-way a dpot double triangle and rectangle slideway.
4.Easy access to safety switches.
5.Spindle is suppported by precision tapered roller bearing.

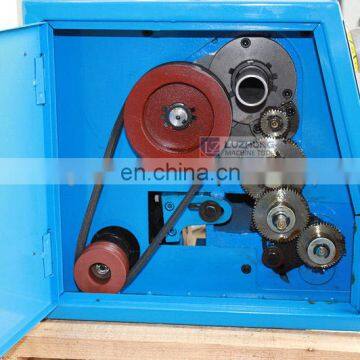

6.Headstock be gear drive power.
7.Large MT4 spindle bore.

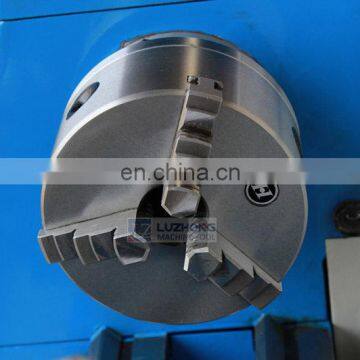

8.High precision chuck.
9.Induction cuts withcross & longitudinal powerfeed

Product main technical Specifications:

Specifications

Units

CJM250

Lathe bed maximum turning diameter

mm

250

Skateboard largest workpiece turning diameter

mm

500

Maximum workpiece diameter rotary table

mm

150

Spindle hole diameter

mm

26

Taper of spindle

mm

No.4

Spindle

mm

80—1600r.p.m   12

The maximum horizontal stroke of cutter

mm

130

The knife frame maximum longitudinal travel

mm

75

Processing metric thread number

mm

15

Processing range of metric threads

mm/r

0.25-2.5

Longitudinal feed spindle turret at every turn

mm

0.03-0.275

The transverse feed amount per turn spindle turret

mm

0.015-0.137

The maximum amount of movement of the tailstock sleeve

mm

60

Taper the tailstock sleeve

mm

No.3

Electric machinery

w

750W/380V/50HZ

Gross / net weight

kg

180/163

Dimensions (length * width * height)

mm

1130×550×405

Packing size (length * width * height)

mm

1200×620×600

Detail diplay

Metal universal CJM250 Small lathe machine







Related Products

Metal universal CJM250 Small lathe machine



Metal universal CJM250 Small lathe machine
Mini LatheCombination Lathe milling machine
Horizontal type latheGAP BED Metal lathe
Company Information

 Metal universal CJM250 Small lathe machine

    Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.

    Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .

Metal universal CJM250 Small lathe machine

Machine Model:CJM250  Small lathe

Type of package: Plywood case

Packaging size: 120*62*60CM(one set in one case)

N.W./G.W.: 163/180KGS

Certifications

Metal universal CJM250 Small lathe machine

FAQ

Metal universal CJM250 Small lathe machine

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
