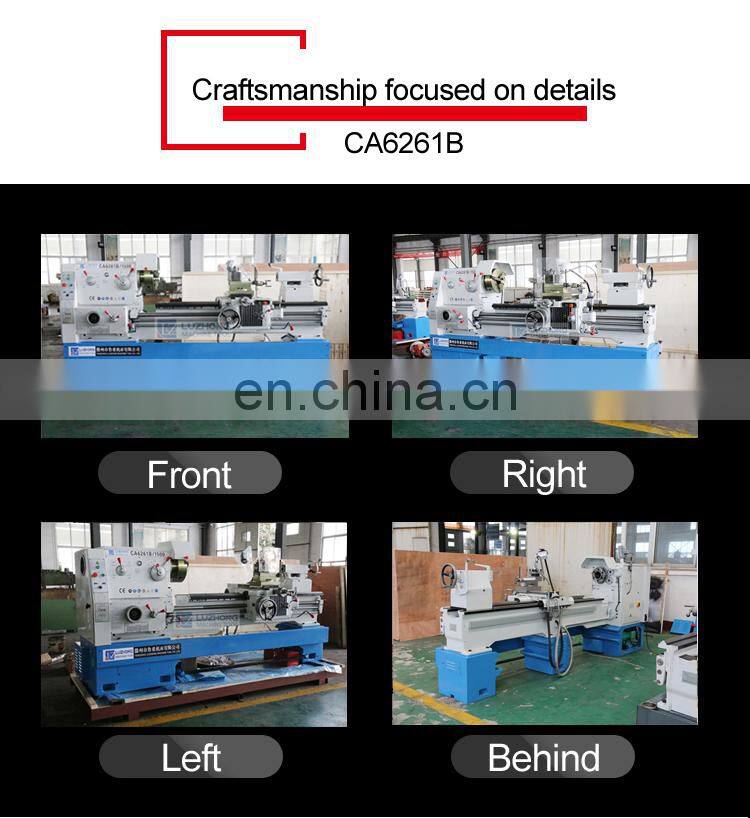

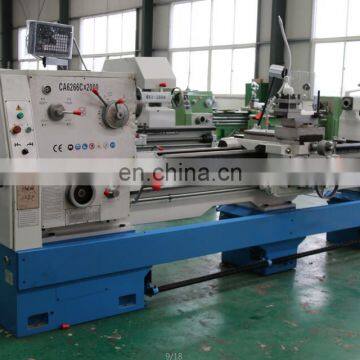

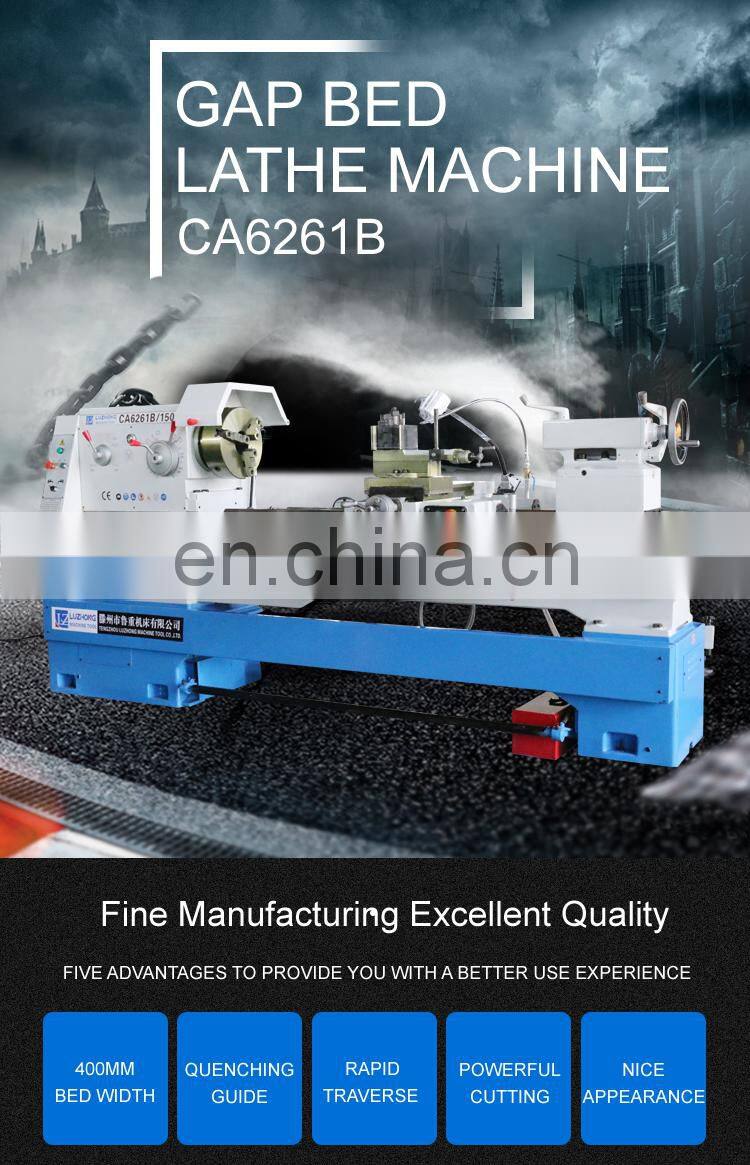

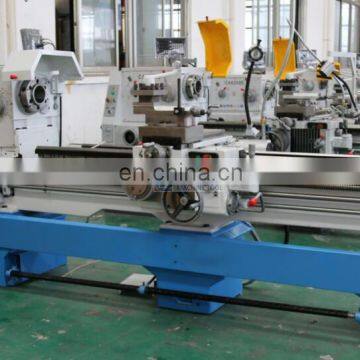

Gap Bed Lathe Machine CA6140CA6150CA6250CA6161CA6261CA6266Lathe Turning

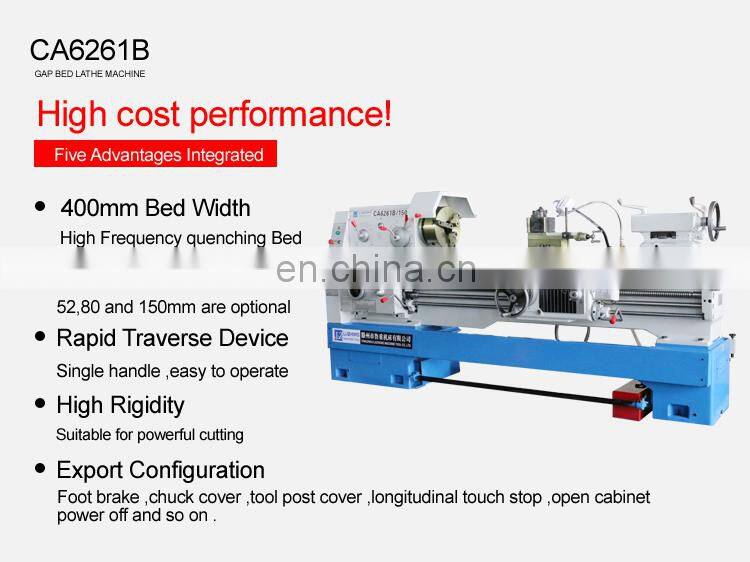

The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application:
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.

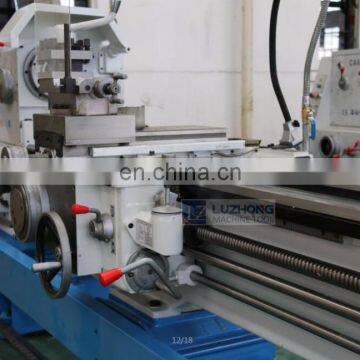

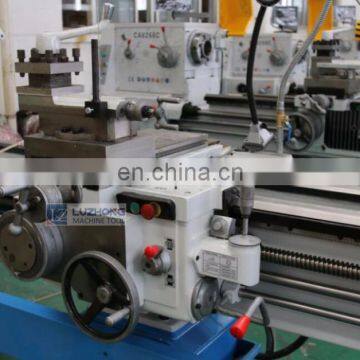

3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Product main technical parameters:
Specifications | CA6140 CA6140B | CA6240 CA6240B | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C | CA6161 CA6161B CA6161C | CA6261 CA6261B CA6261C | CA6166 CA6166B CA6166C | CA6266 CA6266B CA6266C | |
Max. Swing over bed | 400mm | 500mm | 610mm | 660mm | |||||
Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | |||||
Max. swing in gap | -- | 630mm | -- | 720mm | -- | 830mm | -- | 880mm | |
Effective gap length | -- | 210mm | -- | 210mm | -- | 210mm | -- | 210mm | |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||||||||
Width of bed | 400mm | ||||||||
Section of turning tool | 25x25mm | ||||||||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |||||||
Hole through spindle | 52mm. (80mm). [105mm] | ||||||||
Spindle taper | MT6(Φ90 1:20)[Φ113 1:20] | ||||||||
Feed | Number of feeds | 64 kinds(for each) | |||||||
Range of metric threads(kinds) | (1-96mm)44kinds | ||||||||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||||||||
Range of module threads(kinds) | 0.25-48(Moduie39kinds) | ||||||||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||||||||
Tailstock | Max. tail stock spindle travel | 150mm | |||||||
Tail stock spindle diameter | 75mm | ||||||||
Taper of tail stock spindle center hole | MT5 | ||||||||
Main motor | 7.5KW(10HP) | ||||||||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | 2550x1140x1750 | 2550x1140x1750 | 2550x1140x1750 | ||||
Overall dimensions for1000mm | 2700x1140x1750 | 2700x1140x1750 | 2700x1140x1750 | 2700x1140x1750 | |||||
Overall dimensions for1500mm | 3200x1140x1750 | 3200x1140x1750 | 3200x1140x1750 | 3200x1140x1750 | |||||
Overall dimensions for2000mm | 3700x1140x1750 | 3700x1140x1750 | 3700x1140x1750 | 3700x1140x1750 | |||||
Overall dimensions for2200mm | 4030x1140x1750 | 4030x1140x1750 | 4030x1140x1750 | 4030x1140x1750 | |||||
Overall dimensions for3000mm | 4850x1140x1750 | 4850x1140x1750 | 4850x1140x1750 | 4850x1140x1750 | |||||
Overall dimensions for4000mm | 5800x1140x1750 | 5800x1140x1750 | 5800x1140x1750 | 5800x1140x1750 | |||||
Weight (kg) | Length | G.W N.W. | G.W N.W. | G.W N.W. | G.W N.W. | ||||
Weight for 750mm | 2100 1990 | 2170 2061 | 2300 2180 | 2380 2260 | |||||
Weight for 1000mm | 2190 2070 | 2260 2140 | 2380 2250 | 2570 2450 | |||||
Weight for 1500mm | 2350 2220 | 2420 2290 | 2577 2437 | 2810 2640 | |||||
Weight for 2000mm | 2720 2570 | 2790 2640 | 2940 2787 | 3050 2880 | |||||
Weight for 2200mm | 2800 2600 | 2940 2790 | 3120 2970 | 3390 3180 | |||||
Weight for 3000mm | 3300 3200 | 3450 3300 | 3600 3450 | 3930 3687 | |||||
Weight for 4000mm | 3500 3400 | 3750 3600 | 3950 3800 | 4580 4200 | |||||
Standard random accessories:
NO. | Name | Size and model | Units | Number | Remarks |
1 | Cooling system | CA6150-14 | set | 1 | |
2 | lighting device | JC11 | set | 1 |
|
3 | Three jaw chuck | φ250 K11250/ | set | 1 |
|
4 | Center | Ⅱ5 S25-2 | piece | 1 |
|
5 | Anchor bolt | M20x400 GB/T799-88 | set | 6 |
|
6 | Tool post wrench | 17 S92-5 | piece | 1 |
|
7 | Double ended spanner | 12x14 S91-1 | piece | 1 |
|
8 | Double ended spanner | 17x19 S91-1 | piece | 1 |
|
9 | Double ended spanner | 22x24 S91-1 | piece | 1 |
|
10 | Double ended spanner | 27x30 S91-1 | piece | 1 |
|
11 | Inner hexagon spanner | 6 S91-7 | piece | 1 |
|
12 | Inner hexagon spanner | 8 S91-7 | piece | 1 |
|
13 | Inner hexagon spanner | 10 S91-7 | piece | 1 |
|
14 | Inner hexagon spanner | 12 S91-7 | piece | 1 |
|
15 | Hook plate | 135-140 S93-1 | piece | 1 |
|
16 | Screwdriver | 9x12 S81-1 | piece | 1 |
|
17 | Circle pliers | 2 S94-1 | piece | 1 |
|
18 | Oil gun | piece | 1 |
| |
19 | Instruction manual | share | 1 |
| |
20 | Certificate of conformity | share | 1 | ||
21 | Packing list | share | 1 |
|
| | | |
| C6136 C6140 Lathe Machine Price | C6261 Gap Bed Lathe Price | CW6180E Heavy Duty Lathe Price |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
