CA6240 CA6240B Engine Mini Metal Machine Tool Lathe with Price
- 100 Set / Sets per Month
- Any port in china
- T/T Credit Card
- C6136 C6140 C6150 C6160 C6170 Horizontal Engine Metal Lathe Mini Tool Lathe Machine
- CJ0618 Horizontal Small Mini Metal Lathe Machine Price
- C6170 Heavy Duty Horizontal Lathe Machine for Sale with Cheap Price
- China Engine Lathe C6132 C6140 C6150 Lathe Machine
- C6132 Small Mini Horizontal Cue Repair Lathe Machine for Steel
- CZ1337G Universal Mini Metal Kirloskar Lathe Machine
Product Details
Brand Name: | Luzhong Machine | Place of Origin: | Shandong, China | After-sales Service Provided: | No overseas service provided |
Condition: | New |
Product Description

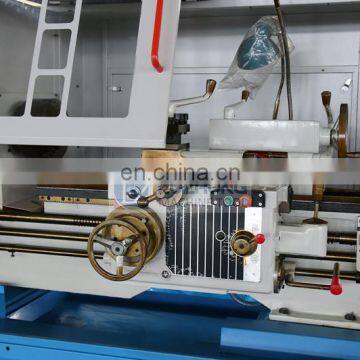

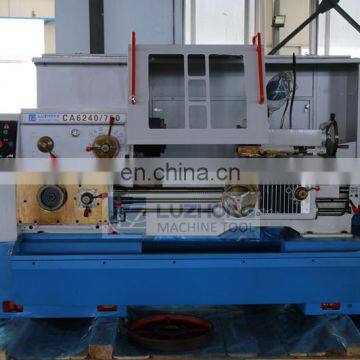

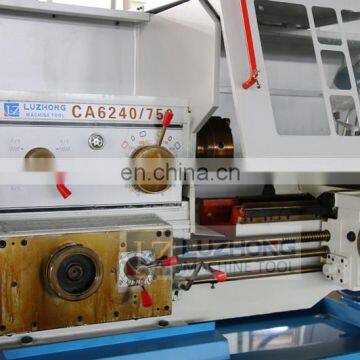

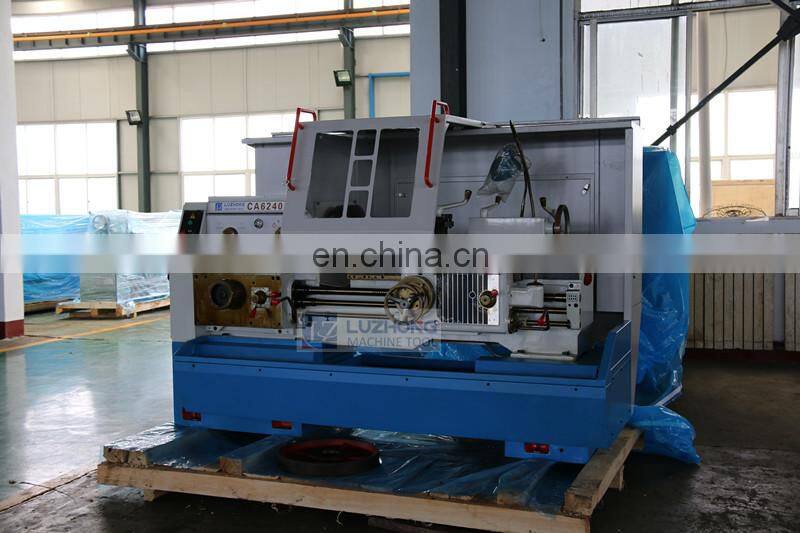

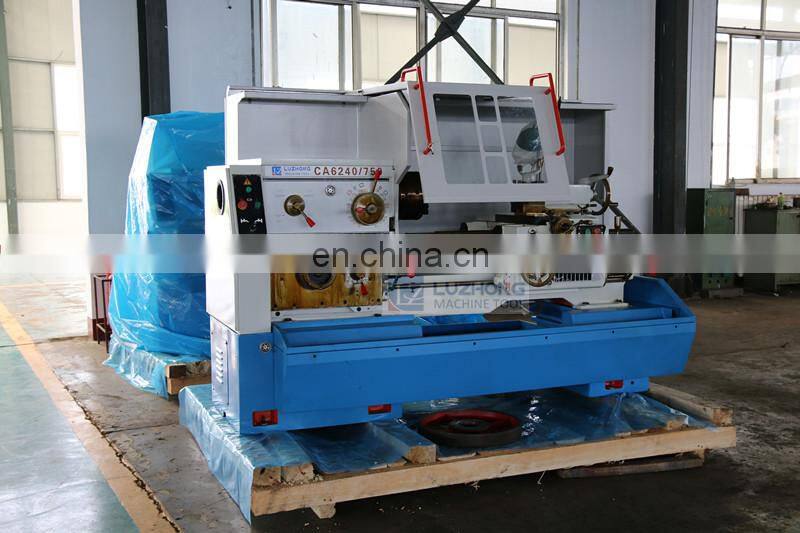

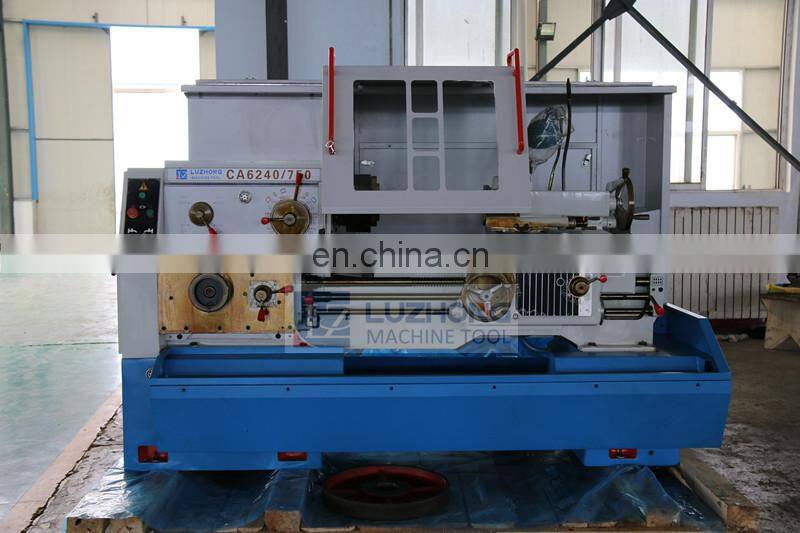

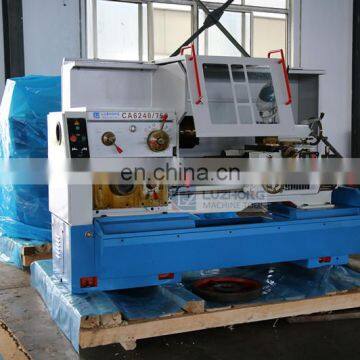

CA6240 CA6240B Engine Mini Metal Machine Tool Lathe with Price
The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application:
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Product main technical parameters:
Specifications | CA6140 CA6140B | CA6240 CA6240B | |
Max. Swing over bed | 400mm | ||
Max. Swing over carriage | 210mm | ||
Max. swing in gap | -- | 630mm | |
Effective gap length | -- | 210mm | |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||
Width of bed | 400mm | ||
Section of turning tool | 25x25mm | ||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |
Hole through spindle | 52mm. (80mm) | ||
Spindle taper | NO.6(Φ90 1:20)[Φ113 1:20] | ||
Feed | Number of feeds | 64 kinds(for each) | |
Range of metric threads(kinds) | (1-96mm)44kinds | ||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||
Range of module threads(kinds) | 0.25-48 (Moduie39kinds) | ||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||
Tailstock | Max. tail stock spindle travel | 150mm | |
Tail stock spindle diameter | 75mm | ||
Taper of tail stock spindle center hole | NO.5 | ||
Main motor | 7.5KW(10HP) | ||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |
Overall dimensions for1000mm | 2700x1140x1750 | ||
Overall dimensions for1500mm | 3200x1140x1750 | ||
Overall dimensions for2000mm | 3700x1140x1750 | ||
Overall dimensions for2200mm | 4030x1140x1750 | ||
Overall dimensions for3000mm | 4850x1140x1750 | ||
Overall dimensions for4000mm | 5800x1140x1750 | ||
Weight (kg) | Length | G.W N.W. | |
Weight for 750mm | 2100 1990 | ||
Weight for 1000mm | 2190 2070 | ||
Weight for 1500mm | 2350 2220 | ||
Weight for 2000mm | 2720 2570 | ||
Weight for 2200mm | 2800 2600 | ||
Weight for 3000mm | 3300 3200 | ||
Weight for 4000mm | 3500 3400 |
C series Lathe Machine | CA Series Lathe Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
