CW61100L CW61125L Big Bore Heavy Duty Metal Lathe Machine
- 100 Set / Sets per Month
- Any port in china
- T/T Credit Card
- Mini Lathe Machine Price CJ0618 Lathe
- Mini Lathe Machine CQ6230B/CQ6232B Bench Lathe Machine For Sale
- Gap Bed Lathe CA6150 CA6250 Metal Hobby Lathe Machine Price
- Mini Lathe Machine C6132 Small Metal Lathe Machines for Sale
- Portable Mini Metal Lathe Machine CJ0618
- Lathe Machine CZ1224 CZ1237 China Mini Bench Lathe For Sale
Product Details
Brand Name: | Luzhong Machine | Place of Origin: | Shandong, China | After-sales Service Provided: | No overseas service provided |
Condition: | New |
Product Description

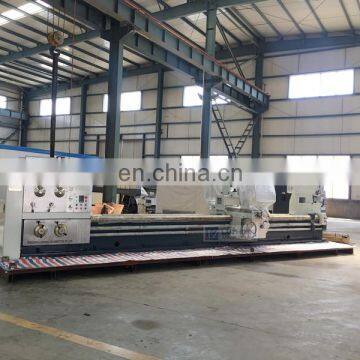

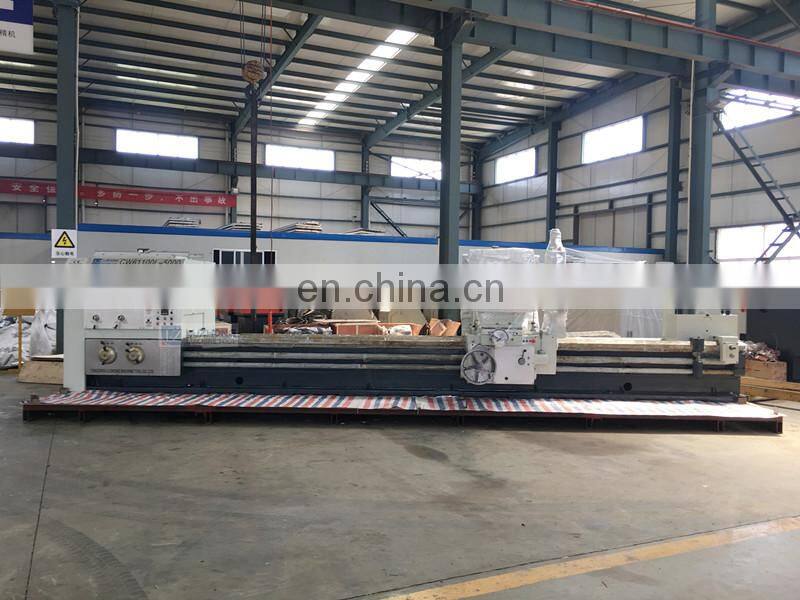

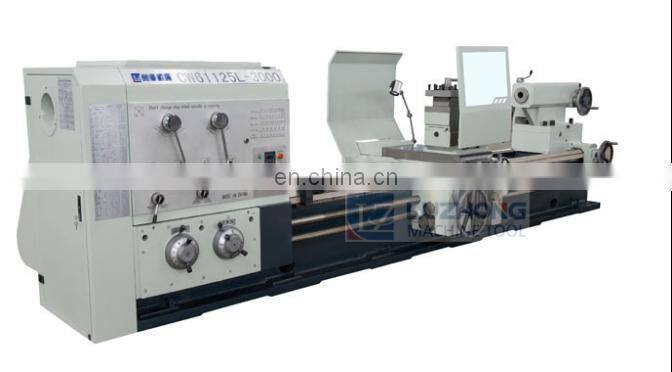

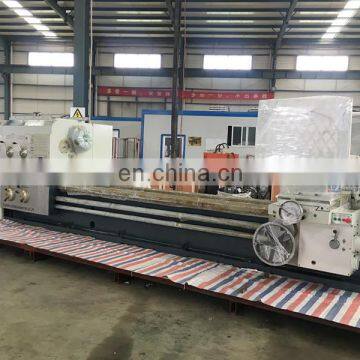

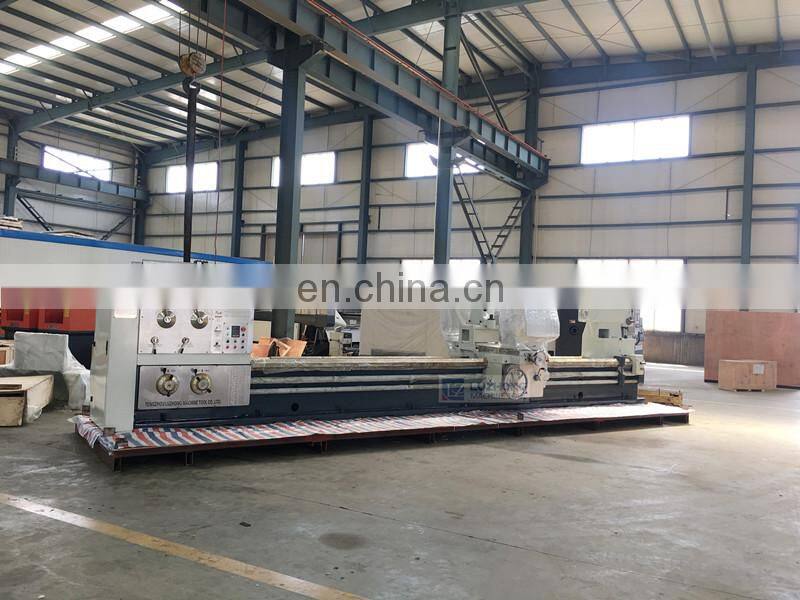

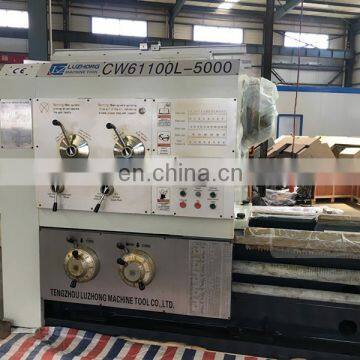

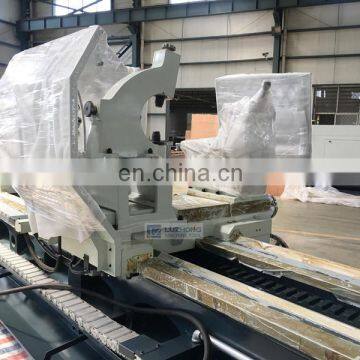

CW61100L CW61125L Big Bore Heavy Duty Metal Lathe Machine
Product main features and uses:
1. This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
2. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
3. This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.

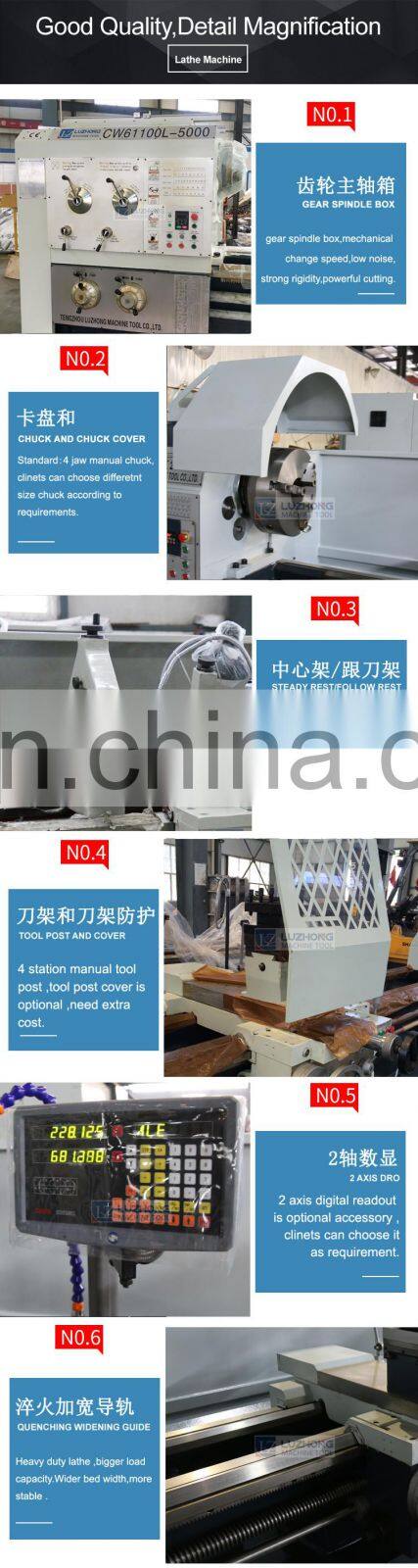

4. Size precision machined parts in the machine tool to achieve of IT7 level surface roughness up Ra3.2.It has the following characteristics:
1)Bed large width sidewall double tendons, the inner ribs board using the box-shaped and oblique tendon composite structures, and overall high rigidity.
2)Manipulation concentrated slipped board has fast transfer institutions, with a single handle visualize manipulation.
3)Lathe structural stiffness and transmission stiffness, high accuracy and stability, and powerful cutting.
4)Bed rail with VHF hardening ,movement, light and flexible, long service life, improve the machining accuracy.
5)Overall appearance, easy to wipe and maintenance.
Product main technical specification:
Item | Specification | Units | CW61100L | CW61125L | CW61140L | CW61160L |
Machining range | Max. swing over bed | mm | 1000 | 1250 | 1400 | 1600 |
Max. swing over cross slid | mm | 600 | 850 | 1000 | 1200 | |
Max. turning length | mm | 1500-12000 | ||||
Bed width | mm | 755 | ||||
Max. work piece weight | T | 6T(8T) | ||||
Spindle | Spindle nose code |
| A2-15 | |||
Diameter of the spindle | mm | 130(145) | ||||
Spindle inside taper | mm | Metric140 1:20 | ||||
Range of spindle speeds | r/min | 4-330 | ||||
Spindle speed series |
| four step variable speed | ||||
Feeding system | Longitudinal and transverse feeding number range | mm/r | 56;0.05-6.0 | |||
Screw pitch | mm | 12 | ||||
Number range of the thread under Metric system | mm | 44;1-120 | ||||
Number range of the thread under British system | mm | 40;30-1/2 | ||||
Number range of the module thread | mm | 46;M0.5-M60 | ||||
Number range of the diametric pitch | mm | 48 30-1/2 | ||||
Slide fast moving speed | mm/min | 3750 | ||||
Knife rest | Max. cross travel of turret | mm | 650 | |||
Max. travel of compound slide | mm | 250 | ||||
Length of section of knife handle | mm | 45*45 | ||||
Tailstock | Sleeve diameter of tailstock | mm | 160 | |||
Sleeve trip of tailstock | mm | 300 | ||||
Cone hole taper tailstock’s sleeve | Morse | Morse6# | ||||
Main motor power | KW | 22KW(30KW) | ||||
Machine appearance | L*W*H | mm | 6200*1900*1800(3m) | |||
Size, weight | Net weight | kg | 13000(3m) |
C series Lathe Machine | CA Series Lathe Machine |
CJM320B Mini Lathe Machine | CW6180E Lathe Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
