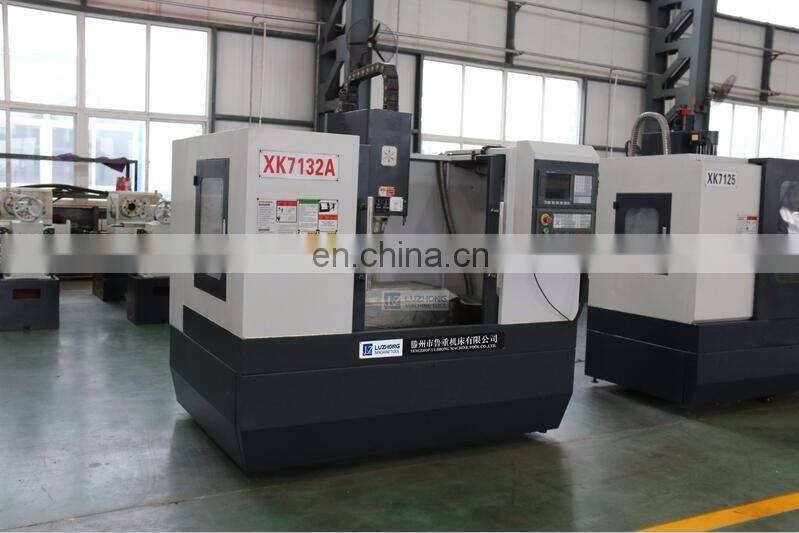

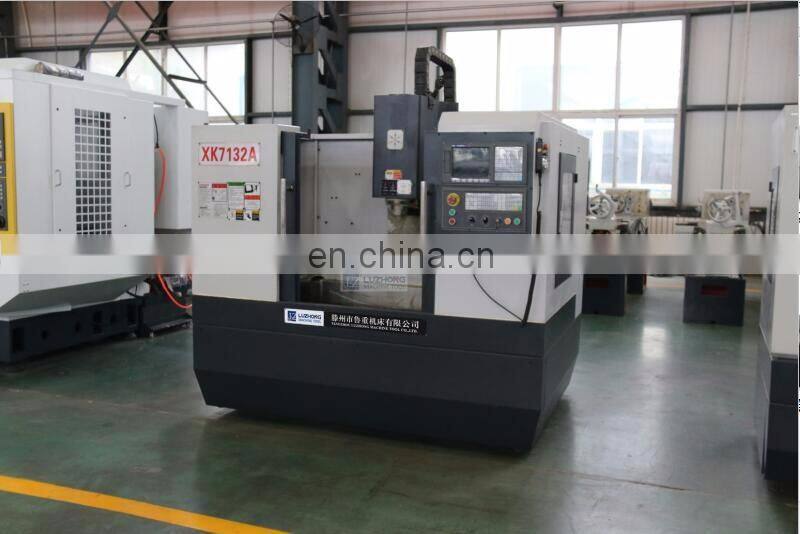

CNC Milling Machine Price / CNC Milling Drilling Machine XK7125 XK7124
- 800 Set / Sets per Month
- any port of China CNC Milling Machine Price / CNC Milling Drilling Machine XK7125 XK7124
- T/T Credit Card
- High Speed CNC Metal Engraving and Milling Machine DX1010 DX1310
- XK5040 China Knee Type 3 Axis Vertical CNC Milling Machines
- 3 Axis Machining Center for metal VMC850 vertical CNC milling machine
- Vertical Machining Center VMC650 5 Axis CNC china cnc milling machine
- VMC855 linear guide rail milling machine CNC Vertical machining center
- Vertical Machining Center XH715 XK715 Metal CNC Milling Machine
Product Details
Brand Name: | Luzhong Brand | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description
CNC Milling Machine Price / CNC Milling Drilling Machine XK7125 XK7124
The main performance characteristics:
1, The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2, The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3, The pre tension precision ball screw drive
4, The high speed, high precision, high rigidity spindle unit
5, The intermittent automatic lubrication
6, Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Product main technical specifications:
ITEM | XK7124 |
Size of worktable(length×width) | 800mm×250mm |
T slot (width x qty x spaces) | 16mm×3×60mm |
Max loading weight on worktable | 60Kg |
X-Axis travel | 400mm |
Y-Axis travel | 300mm |
Z-Axis travel | 400mm |
Distance between spindle nose and table | 105-500mm |
Distance between spindle center and column | 297mm |
Spindle taper | BT30 |
Max. spindle speed | 4500r/min |
Spindle motor power | 2.2Kw |
Feeding Motor power: X Axis | 1Kw |
Y Axis | 1Kw |
Z Axis | 1Kw |
Rapid feeding speed: X,Y,Z axis | 6m/min |
Feeding speed | 0-2000mm/min |
Min. set unit | 0.001mm |
Max. size of tool | φ60×175mm |
Loosing and clamping way for tool | Clamp by disc spring |
Loose manually | |
Clamp by disc spring. | |
Loose pneumatically | |
Max. loading weight of Tool | 3.5Kg |
N.W (include machine stand) | 900Kg |
Packing size( L X W X H) | 1220×1380×1650mm |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
