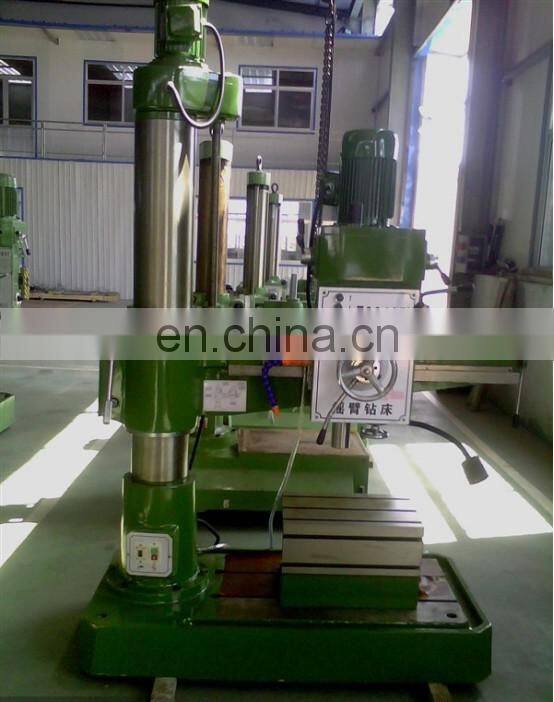

Chinese radial manual drilling machine price ZQ3040
1.specifications
Items | Z3040×13 |
Max drilling diameter (mm) | 40 |
Distance between spindle center line and column(mm) | 300-1300 |
Distance between spindle nose and work table(mm) | 250-1200 |
Distance of headstock horizontal movement (mm) | 1000 |
Elevating distance of rocker(mm) | 670 |
Spindle taper | MT4 |
Spindle speed series | 6 |
Spindle speed | 75-1220rpm |
Spindle travel(mm) | 270 |
Spindle feeding speed(mm/r) | 0.10; 0.16 0.25 |
Elevating speed and spindle (r/min) | 1.3 |
The turning angle of rocker | ±180° |
The spindle allowed maximum feeding resistance(N) | 6300 |
Main motor power(kw) | 2.2 |
Elevating motor power(Kw) | 0.55kw |
Coolant pump power (kw) | 0.04 |
Weight (kg) | 2000 |
Overall dimension | 2000*800*2240 |

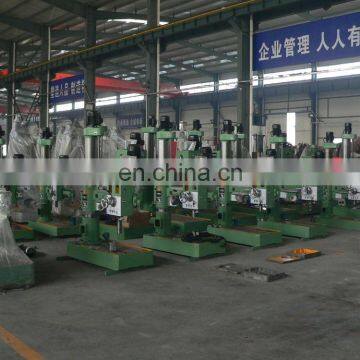

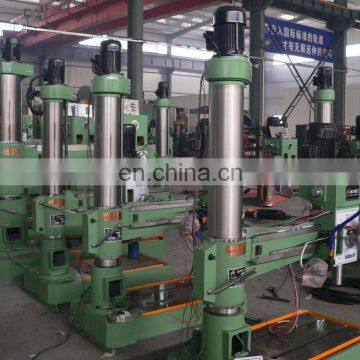

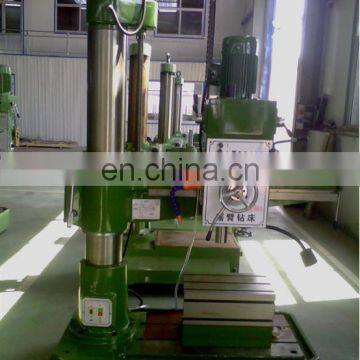

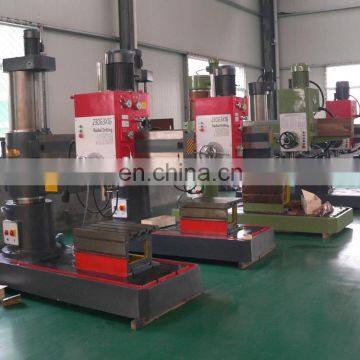

Reference pictures
