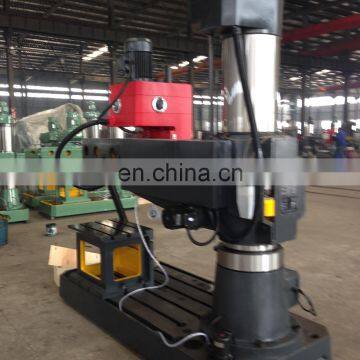

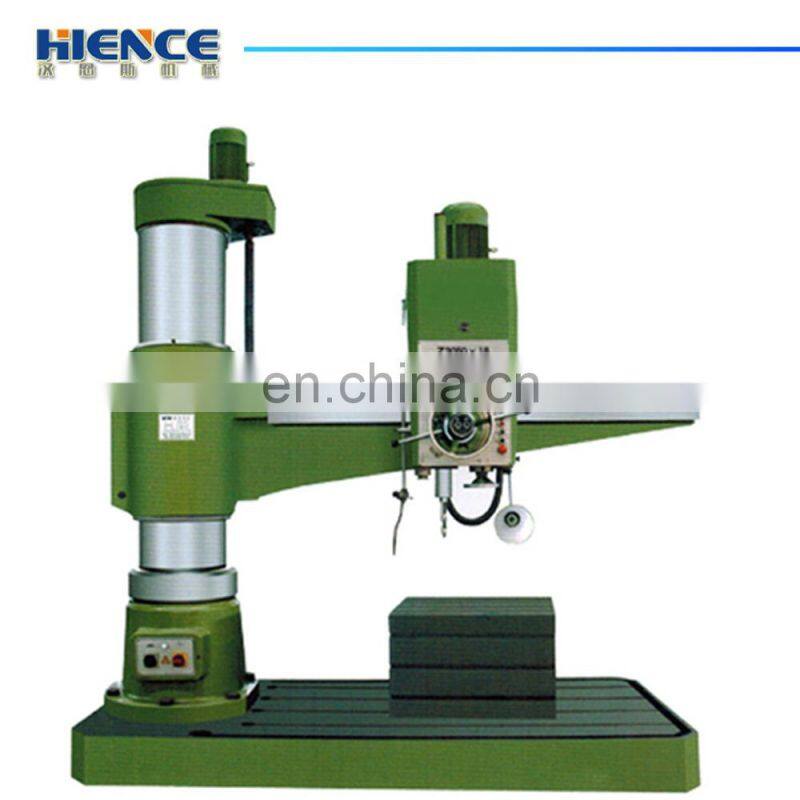

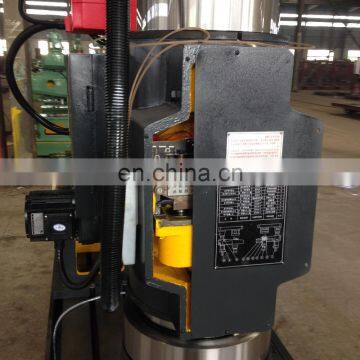

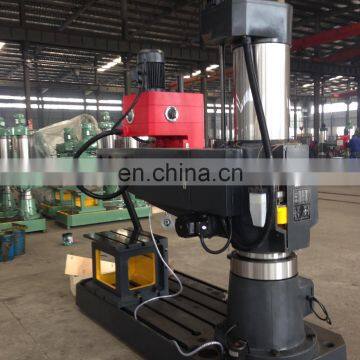

Z3050*16/I----New Hydraulic Pressure Radial Drilling Machine Automatic Feed
US$ 1,500 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIENCE
Place of Origin:
Shandong, China
Model Number:
Z3050X16/I
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Dalian Tianjin Shanghai.etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Vertical Universal Drilling and Milling Machine for Sale ZX6350ZAUS$ 5,000 - 6,000MOQ: 1 Set -
Chinese Radial Manual Drilling Machine Price ZQ3032US$ 2,000 - 2,500MOQ: 1 Set
-
China Excellent Quality Big Diameter Radial Drilling Machine Price ZQ3032US$ 2,000 - 2,500MOQ: 1 Set
-
China Radial Drilling Machine Price Z3050x16/1US$ 10,000 - 15,000MOQ: 1 Set
-
High Quality China Heavy Duty Radial Drilling Machine Z3050x16/1 for SaleUS$ 10,000 - 15,000MOQ: 1 Set
Brand Name
HIENCE
Place of Origin
Shandong, China
Model Number
Z3050X16/I
Certification
ISO 9001
After-sales Service Provided
Overseas service center available
Weight
3500kg
Dimension(L*W*H)
2500*1060*2800
Voltage
380V
Condition
New
Power(W)
4kw
CNC or Not
Normal
Drilling Speed
25--2000
ZQ3050*16---New Mechanical type radial drilling machine
Iterms |
Specifications |
Max drilling diamater |
50mm |
|
The gap between the center line of the spindle and riser bus bar |
Max:1600 mm Min 350mm |
|
The gap between the spindle end and the working face of pedestal |
Max 1220mm Min 320mm |
Travel of spindle |
300 mm |
Taper of spindle |
5# |
Range of spindle speed |
25-2000 rpm |
Number of spindle speeds |
16 |
Range of spindle feeds |
0.04-3.20 mm/r |
Table size |
500*630mm |
Horizontal trave of spindle head |
1250 mm |
Motor power |
4 KW |
Weight |
3500 kg |
Overall dimensions |
2500*1060*2800mm |
