Help CenterAWR3050 28'' Wheel Ram Rim Repair Diamond Cutting Lathe Machine With Rainbow Line
Related Products
-
Alloy Wheel and Alloy Rim Repairing Machine Fit for CarUS$ 12,000 - 16,000MOQ: 1 Set -
AWR3050 Up to 30inch Cnc Wheel Lathe Cutting Machine for Repair WheelUS$ 15,000 - 25,000MOQ: 1 Set
-
ARS26 Alloy Wheel Rim Straightening MachineUS$ 2,000 - 2,500MOQ: 1 Set
-
32 Inch Mag Wheel Refinishing Repair Rim Machine and Alloy Wheel Lathe AWR32HUS$ 15,000 - 17,000MOQ: 1 Set
-
Rim Repairing New CNC Wheel Lathe Machine Specification AWR32HUS$ 14,000 - 16,000MOQ: 1 Set

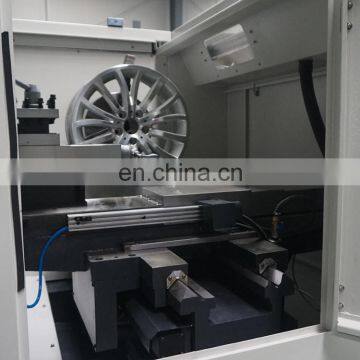

AWR3050 Diamond Alloy Rim Repair cnc lathe alloy wheel repair equipment
Main features
1. The base of the machine is made of cast iron which is heavy enough and of good rigidity and stability.
2. independent spindle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
SPECIFICATIONS
ITEMS | Specifications |
Max. swim over bed | Φ770mm |
Max. swim over carriage | Φ500mm |
Max. length of work piece | 1270mm |
Width of the machine | 400mm |
Size of three-jaw chuck | 400mm |
Range of spindle speed | 150-2000rpm |
Spindle bore | Φ82mm |
Taper of spindle bore | Type of spindle head D-8 |
Stations of tool carrier | 4/6/8 |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8 m/min, (X) cross 6 m/min |
Taper of tailstock quill | MT5 |
Max. range of tailstock quill | 150mm |
Motor power | 7.5KW
|
Faster delivery security
All the goods are suitable for shipping, air transport, railways, road transport
Fumigation of wood packaging
Specific details contact salers( Different model, different weight /size)
Container size
20GP:6058mm(L)X2438mm(W)X2591mm(H)
40GP:12192mm(L)X2438mm(W)X2591mm(H)
40HC:12192mm(L)X2438mm(W)X2896mm(H) Packaging Details
Shipping Details
The buyer received the goods smoothly
TAIAN HISCIENCE MACHINEYR CO,.LTDis dedicated to the research and development, production and sales of cnc machine tools.The most complete product specifications about cnc lathe series,Slant bed Horizontal CNC lathe, CNC Pipe threading lathe,CNC wood lathe,CNC milling machine & machining center ,Drilling machine ,Manual engine lathe,Test bench ,CNC Turning Machine center ,Accessories of CNC machine.and alloy wheel repair cnc lathe machine, alloy wheel machine .
Applications of CNC machine tool has been from the airline industry sector gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry.
For copper, aluminum , iron, plastic and other precision parts manufacturing, applicable to instruments , watches, cars, motorcycles , bicycles , eyewear , stationery , hardware, sanitary ware, electronic components , connectors , computers, cell phones , electronics, military and other industries in bulk machining small parts, especially the more complex parts.
The company has carried out ISO QMS, We according to the Europen CE certificate classified the production process in programmable.All the produce of parts by CE directive supervise each process. Our machine High- speed , highprecision, small cnc lathe machine, mini cnc lathe machine. There are heavy duty cnc lathe machine.
The proucts sell well in the domestic maket, and menwhile, they have been exported to Europe,America, Southeast Asia and othe countries,more than 50 countries in Worldwide.
The company adjacent to three estuaries of Qingdao ,Shanghai lianyungang Port as well as qingdao, jinan,shanghai Airport.
Company certificate
A.Warranty is one year, we would offer the parts
(quality problem) free of charge during this period
B.GSK CNC system, servo driven,warranty is 3 years
Siemens system (Have customer service service point in the world)
C.24 hours technical suport e-mail and (Service telephone 8613561777650)
D.User manual and detailed video
