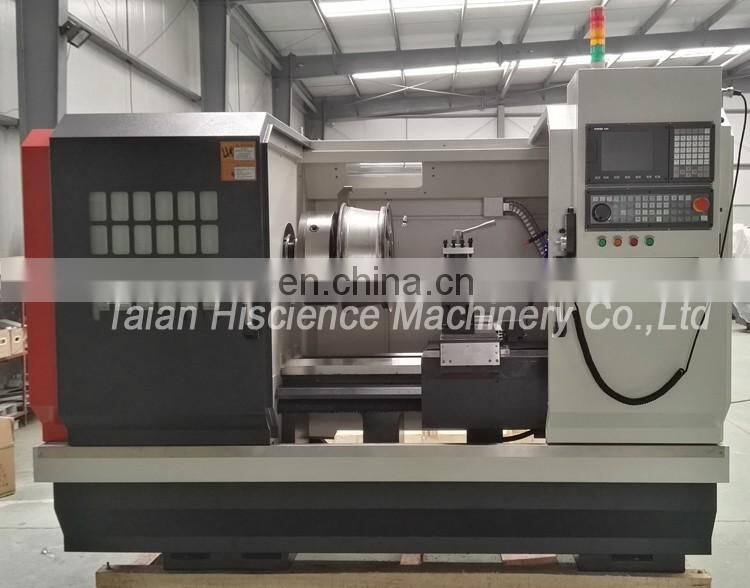

Help Center32 Inch Mag Wheel Refinishing Repair Rim Machine and Alloy Wheel Lathe AWR32H
Related Products
-
Rim Repairing New CNC Wheel Lathe Machine Specification AWR32HUS$ 14,000 - 16,000MOQ: 1 Set -
China Hot Sale New Product CNC Alloy Wheel Repair Lathe AWR28HUS$ 13,000 - 14,000MOQ: 1 Set
-
26 Inch Car Hub Repair Reconditioning Alloy Wheels CNC Lathe AWR28HUS$ 12,000 - 13,000MOQ: 1 Set
-
Electric Hydraulic Alloy Wheel Repair Machine RIM STRAIGHTENING MACHINE Cnc Lathe AWR28HUS$ 12,000 - 13,000MOQ: 1 Set
-
Alloy Wheel Repair Diamond Cutting Machine Production China AWR2840US$ 12,000 - 14,000MOQ: 1 Set
Alloy wheel repairing kit AWR32H
a.Specifications
ITEMS | AWR32H | |
Max. swig over bed (mm)(inch) | Φ880(34’) | |
Max. Size of alloy wheel (inch) | Φ820(32’) | |
Adjustable stroke of carrier in X direction | 100mm | |
Cross slide travel (mm) | 450 | |
Width of the rail (mm) | 400 | |
Length of the rail (mm) | 1650 | |
Size of the three-jaw chuck (inch) | 16’ | |
Range of spindle speed (RPM) | 50~1800 | |
Spindle speed control | Automatic | |
Spindle bore (mm) | Φ82 | |
Taper of spindle bore | 1:20(Φ90) | |
Max. size of tool post | 25×25mm | |
Stations of tool carrier | 4 position | |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
Motor power | 7.5KW | |
Mchine base(cast iron base) | Separate | |
Machine size | (L×W×H) (mm³) | 2970×1660×2080 |
Package size | 3120×1810×2350 | |
Net weight | 3200kgs | |
Mark | Order | |

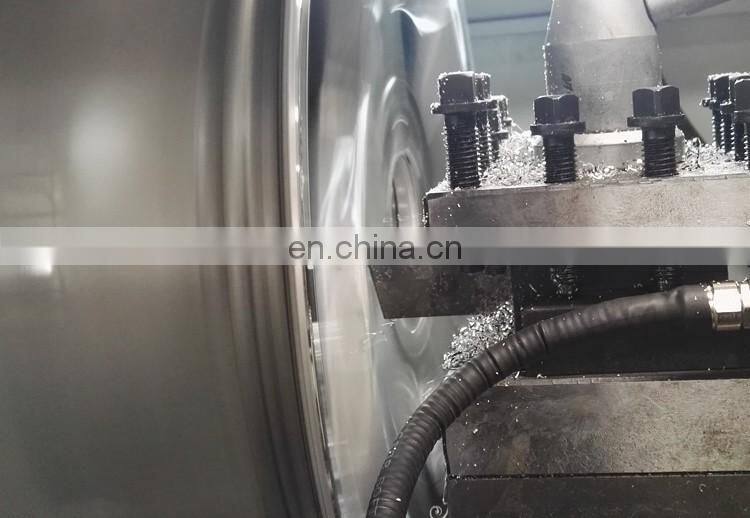

B.pictures of AWR32H

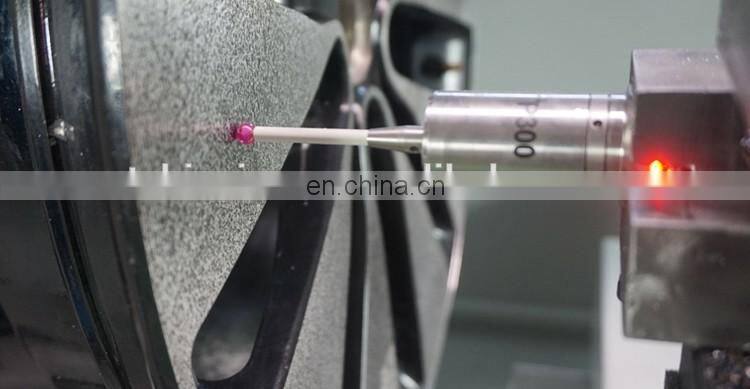

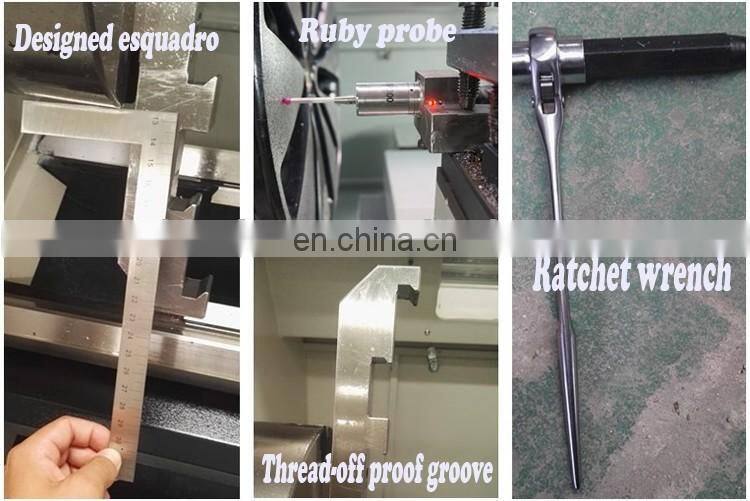

Important accessories
Tested wheel
