High quality cnc lathe machine CK36L
A.Standard configuration and specification
1.Cnc system :GSK928(China 's first brand)English interface
2.4-position tools
3.Automatic lubrication pump
4.Manual 3-jaw chuck Φ200mm
5.Manual tailstock
6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
7.Water cooling system
lights
9.Tailstock Center
10. Meter / Inch Box
11.Tool Box with Tools
12. Operation & Service ManualCommunity Gear
Items |
Specifications |
Max. swing over bed |
Φ360mm |
Max.swing over carriage |
Φ180mm |
Max.length of work piece |
250mm |
X axis travel |
350mm |
Range of spindle speed |
150-2500rpm |
Spindle bore |
Φ48mm |
Size of chuck |
Ø 160mm |
Taper of spindle bore |
MT6 |
stations of tool carrier |
4/6 or gang type tool |
Max.size of tool bar |
20mm*20mm |
Min.setting unit of motor |
(Z) 0.001mm (X) 0.001mm |
Moving speed of post |
(Z) 18 m/min (X) 12m/min |
Motor power |
3.7KW |
Packing size (mm) L*W*H |
1900mm*1550 mm*1700mm |
Weight |
1300kg |
B.Feature
Cast iron integral lathe bed, strong rigidity and good stability.
Independent spindle, variable frequency stepless speed regulation, low noise and vibration, high machining accuracy, energy saving and environmental protection
Spindle with high speed, high precision bearings, processing surface smoothness
X/Z axis use high-speed liner guide rail

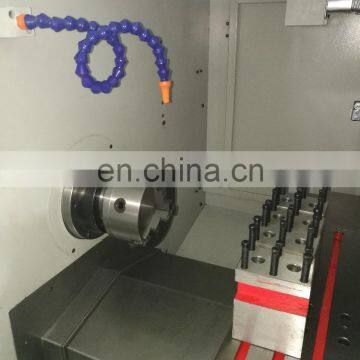

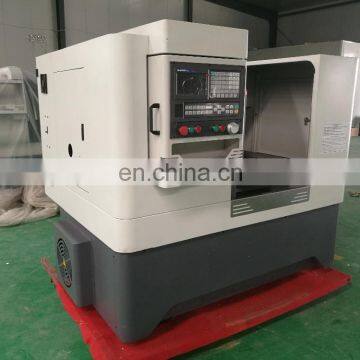

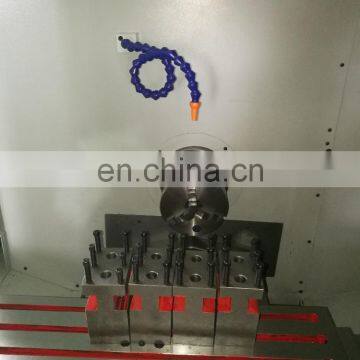

C.Pictures of CK36L
D.Select configure
1.CNC system: Siemens808D,(warranty service)
2.Hydraulic chuck , pneumatic chuck,
3.Hydraulic tailstock, pneumatic tailstock,
4.Automatic feeder,
5.Horizontal six-station turret.
