Aluminum ingot casting machine line sand core shooting machine
Introduction:
DL-361 core shooter is a heat core box shooter which is vertically divided, semi-automatic, with the die upturned. Core is taken out manually. The core shooter is applicable to valve, water tag, hardware fittings, hydraulic pressure and small workpieces of variety cores in the air-powered industry.
It is used to produce furan resin series heat core box sand, urea resin series heat core box sand and pre-coated sand core-making.
Characteristics & Applications:
(1) With the human-computer interface, imported high quality electrical and air controlled components, precise and reliable control and convenient operation are guaranteed.
(2) Manually operated with two functions of unicycle and multi-cycle.
(3) The shooting head rotates for 50° to receive sand, it is easy to clean the shooting hole manually.
(5) The machine can be plainly moved as a whole.
(6) Die adjustment margin is set to make it easy to use different dies and lower the requirements of die exterior physical dimension.
Technical data:
Greatest Weight of sand cores |
6kg |
The biggest size of core boxes |
400*280*200mm |
Size of heating plate |
350*200 mm |
Itinerary of plunger under pressure |
≤30 mm |
Itinerary of plunger under pressure |
≤300 mm |
Tthe longest itinerary of core-pull guide bar |
150 mm |
Nylon conveying band |
2200*400*100 mm |
Net weight of the whole machine |
1350kg |
Heating power |
9.6kw |
Size of appearance of machine |
3500*1550*2200mm |
Total powl of the machine |
10 kw |
Transmission speed |
72mm/s |

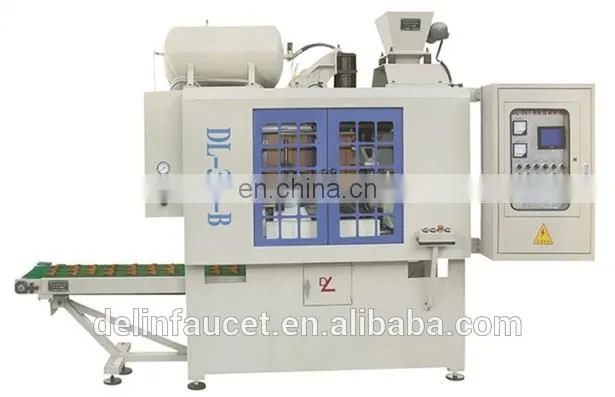

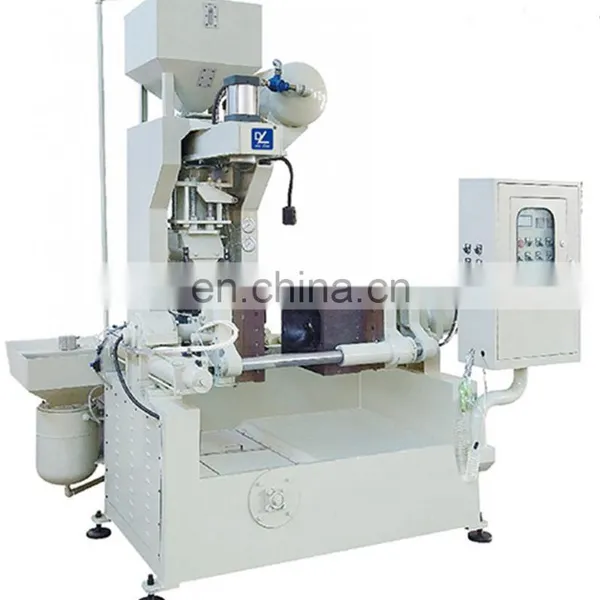

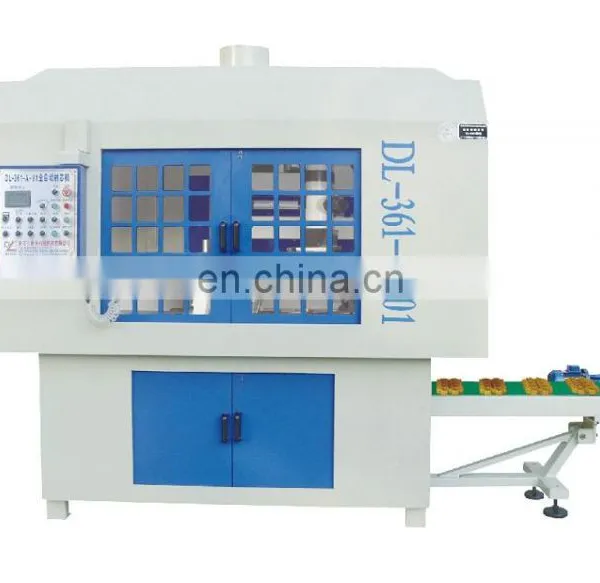

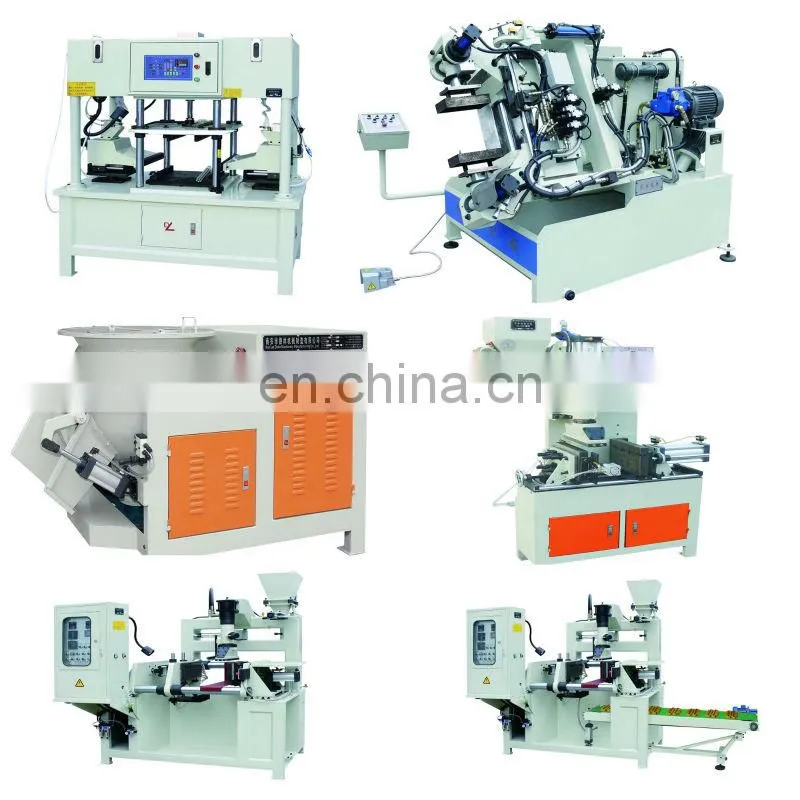

Related machine :

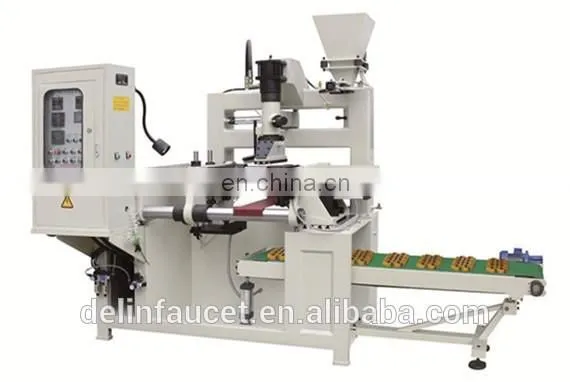

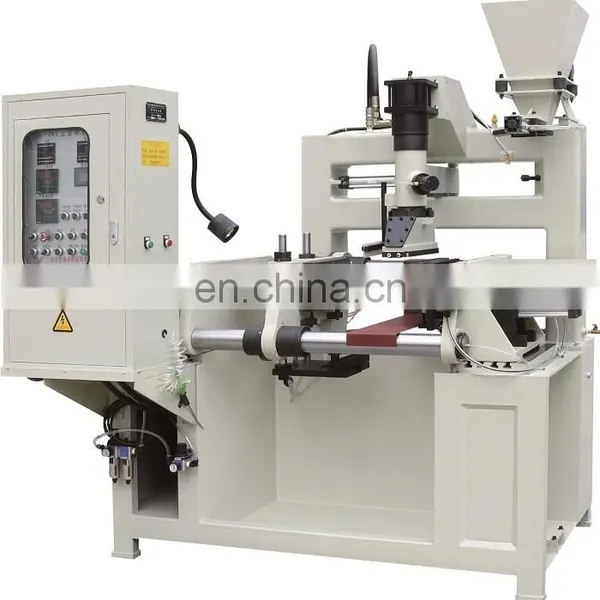

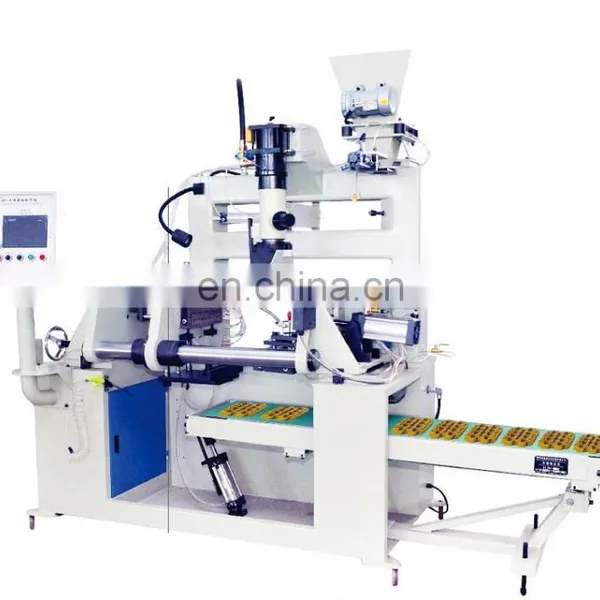

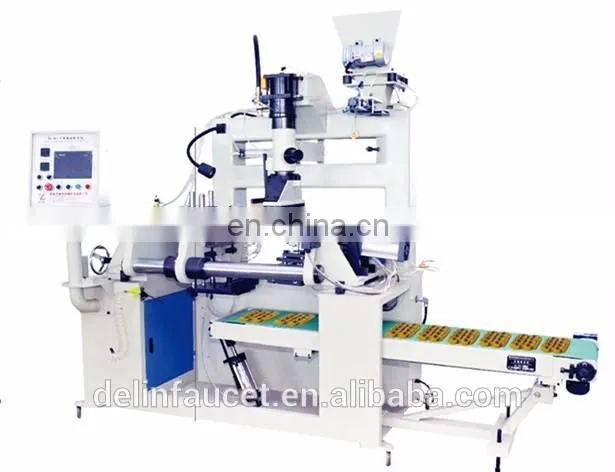

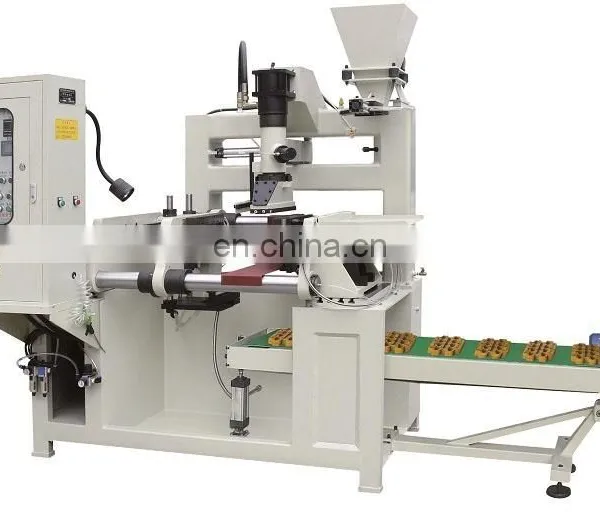

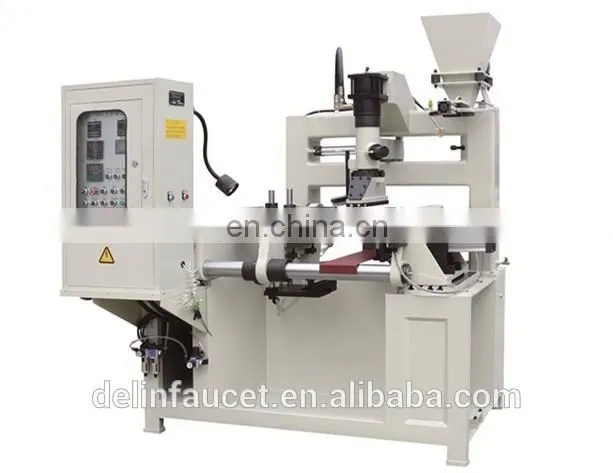

DL-361 machine show :

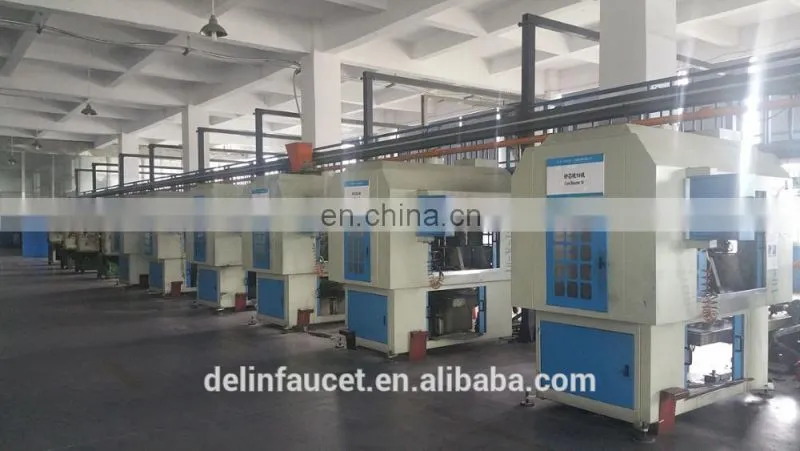

Factory show :
Packaging :
1,Before the shipment, we will spray anti-rust oil on the machine's surface .
2,Then use the plastic film packaging to prevent moisture and rust.
3,Finally, put the machine in wooden cases, use solid seaworthy wood box package with steel belt, it will be save space as much as possible for container loading.
