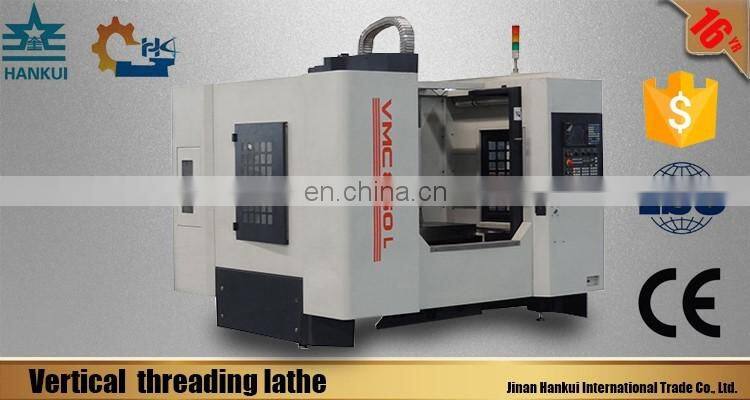

VMC850 Metal Engraving Machinery CNC Machining Center Price

FOB Price

US$ 24,000 - 38,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI/HUNK/OEM	Place of Origin	Shandong, China
Model Number	VMC850L	Type	Vertical
Certification	ISO CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12 Months	Weight	5800kg
Dimension(LWH)	275024002600mm	Voltage	Customer's Requirement
Condition	New	Power(W)	7.5kw

Product Description

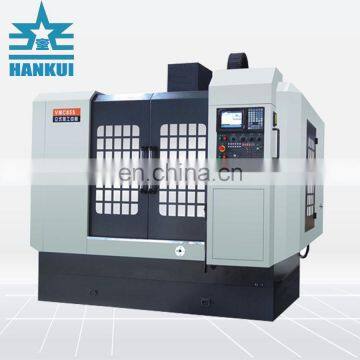

VMC850 Metal Engraving Machinery CNC Machining Center Price

Application:

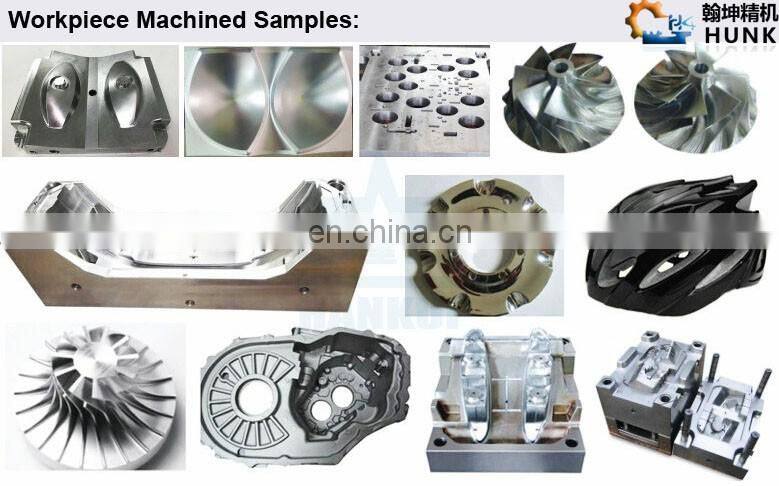

1. The VMC is suitable for the mechanical processing and mold making.

2. And it can adapt to the processing requirement from rough machining to finish machining.

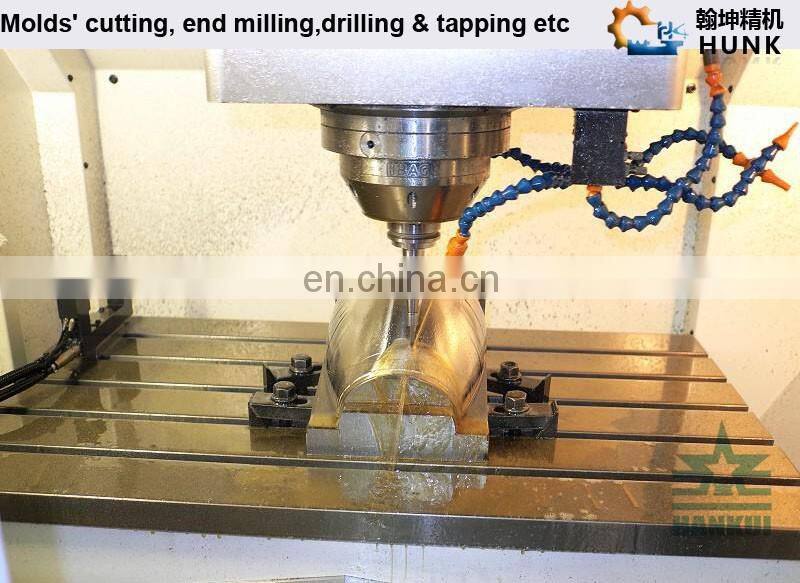

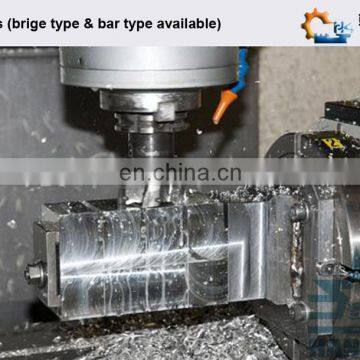

3. It can also finish many working procedures like milling,drilling,tapping,boring.etc.

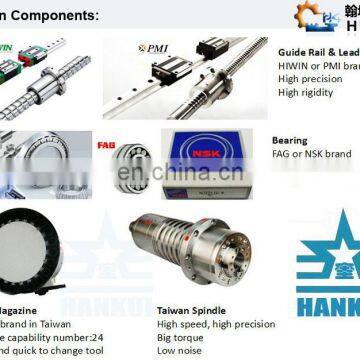

1. Imported high speed and high precision spindle.

2. Standard tool magazine.

3. High strength resin sand casting.

4. C3 grade ball screw

5. Imported cylindle from Taiwan

6. NSK bearing imported from Japan

7. Automatic intermittent lubricate system

8. Fully enclosed cover

9. Fanuc, Simens, Mitsubishi, Syntec CNC control system

Technical Parameter

ITEM	Unit	VMC850L	VMC855L	VMC1050L	VMC1060L
Table size	mm	1000*500	1000*550	1100*450	1200*600
T slot		5-18*90	18*5	18*3	5-18x90
Load capacity	kg	500	500	550	800
X-axis travel	mm	800	800	1000	1000
Y-axis travel	mm	500	550	530	600
Z-axis travel	mm	500	550	550	600
Distance from Spindle center to column slide way	mm	550	595	595	650
Distance from Spindle center to table	mm	150-650	120-670	190-750	120-720
Tool shank		BT40	BT40	BT40	BT40
Spindle servo motor power	kw	7.5	7.5	11	11
Max diameter of tool	mm	φ80/φ150	φ80/φ150	φ80/φ150	φ80/φ150
Max length of tool	mm	250	300	300	300
Max weight of tool	mm	8	8	8	8
X/Y -axis rapid moving speed	mm	48000	48000	36000	36000
Z-axis rapid moving speed	mm	48000	48000	36000	36000
Feed Rate	mm/min	1-10000	1-10000	1-10000	1-10000
Positioning accuracy	mm	±0.008	±0.008	±0.008	0.01
Repeated Positioning accuracy	mm	±0.002/300	±0.002/300	±0.002/300	0.003
Out dimension	mm	2.72.42.6	2.752.42.6	2.82.42.7	32.52.9
N.W.	kg	5500	5800	6100	6500

Certifications

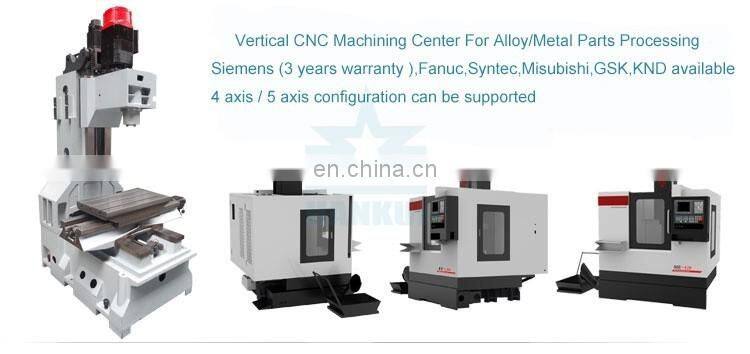

Main Features

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	As the detailed machine model
Weight	No more than 15T
Packaging Details	The normal package is wooden box/Steel frame. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Related Products

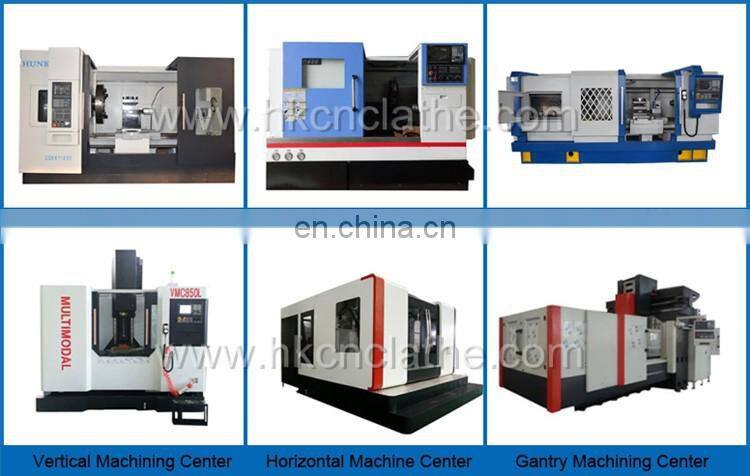

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Our Company

Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
