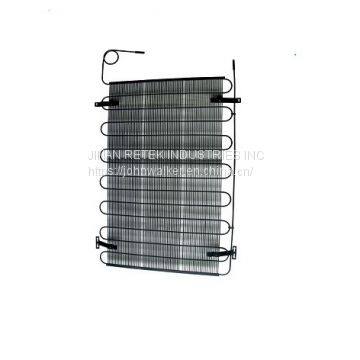

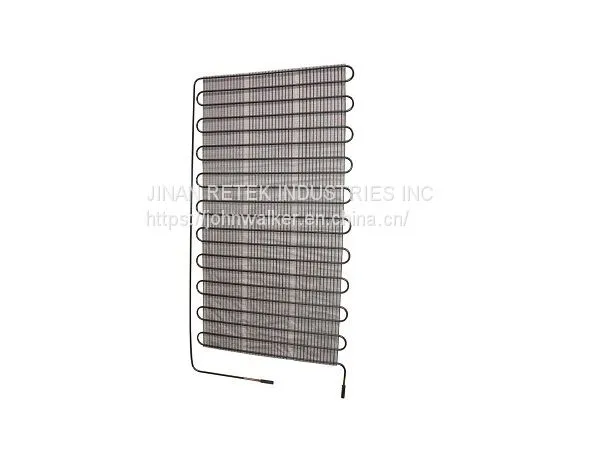

The Price Refrigerator Wire Tube Conensers for Largely ExportingUS$ 1 - 20MOQ: 500 Pieces
1)Material:
a) Bundy tube (steel tube coated with copper): 4.76x0.7mm, 6x0.7mm, 6.35x0.7mm, 8x0.7mm
b) Low carbon steel wire: 1.0-1.6mm(both sides can be with steel plates and brackets; can be upon your option)
c) Bracket: steel plate (SPCC), thickness 0.6-1.5
2) Structure: bundy tubes welded with steel wires
3) Painting: Cathode Electrophoretic painting is also available with higher price.
R134a cooling system tube inside standard:
1) Residual moisture: ≤ 20mg/mm
2) Residual dusty: ≤ 30mg/mm
3) Residual mineral oil: ≤ 7mg/mm
4) Residual chlorine: ≤ 3mg/mm
5) Sealing density: ≥ 1.65MPa
Specification of E-coating:
1) Coating thickness:
A) Thickness of anodic electrophoresis coating ≥ 12μ M
B) Thickness of cathodic electrophoresis coating ≥ 20μ M
2) Hardness of coating ≥ 2H
3) Impact of coating: 50cm. Kg/cm impact, no crack
4) Adhesion of coating: ≥ 2 grade
5) Flexibility of coating: Around R=3D bend 180 degrees, no crack or no fall off
6) Corrosion resistant (salt spray GB2423)
A) Anodic electrophoresis coating ≥ 24h
B) Cathodic electrophoresis coating ≥ 96h
