Vibrating Grizzly Screen Gold Mining Equipment

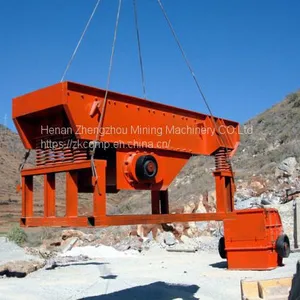

Vibrating Grizzly Screen Gold Mining Equipment thumbnail-1
Vibrating Grizzly Screen Gold Mining Equipment thumbnail-2

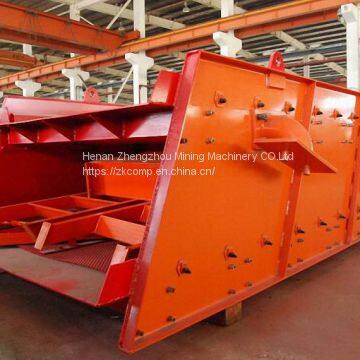

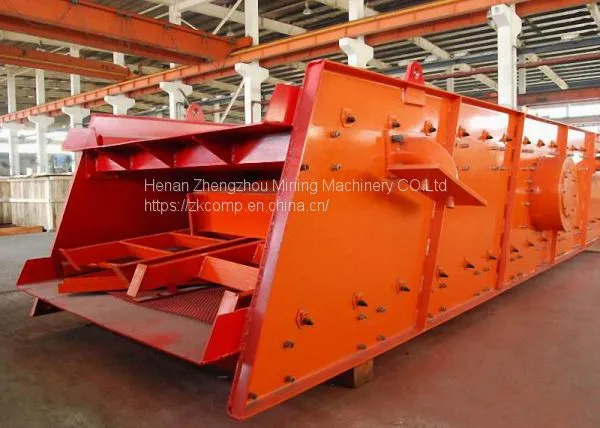

Vibrating Grizzly Screen Gold Mining Equipment photo-1
Vibrating Grizzly Screen Gold Mining Equipment photo-2
US$ 1000 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Linear
Certification:
ISO,CE
Contact Supplier Request Quote Chat Now
Henan Zhengzhou Mining Machinery CO.Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Linear
Certification ISO,CE
Application Ore
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Condition New
Vibrating Gold Mining Machine

This Gold Wshing Plant is a complete,portable equipment.



Excavator pour the materials on grizzly bar to screening,gravel rinsed by high pressure water then discharge form the hindside,material particle size can reach 30cm.The smaller particles fall to the second floor screen for separation,after sifting through the second layer, the sand water mixture flows into two separate adjustable sluice for gold enrichment.This sluice can be adjusted front and rear angle,left and right balance to achieve maximum recovery rate by adapting to different terrain and operating conditions.

This machine can be cleaned easily and quickly,gold mat can be removed to flush quickly.

SPECIFICATIONS FOR VIBRATING GOLD MINING MACHINE VGM50
Overall Dimension
Length
2.96 meter
Width
0.9 meter
Height
2.2 meter
Main performance parameters
Vibrating Area
1 m2
Sluice Box Area
1.5 m2
Max. Capacity
50t/h
Motor and Pump
HIgh pressure water pump
Diesel 4 inch
90m3/h
Motor
LA186F
9hp/3600rpm
Driving power
LA192
14hp/1800rpm

Official Website: &

24-hour Free Sales Consulting Phone : 86-18937185591 .

Email:ec03@zkcorp.com or whatsapp:008618937185591.

Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
