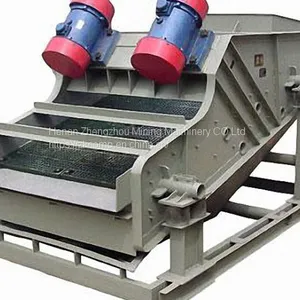

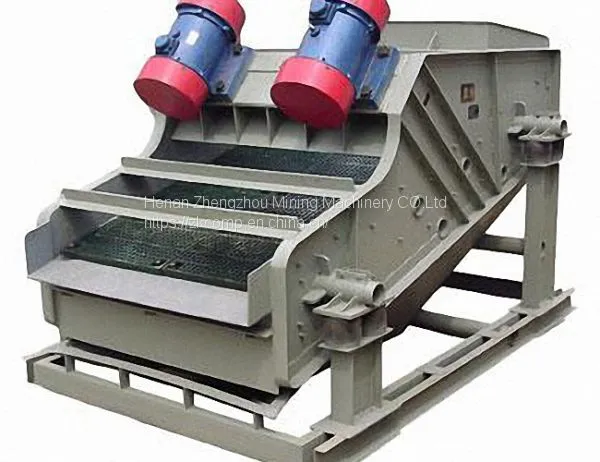

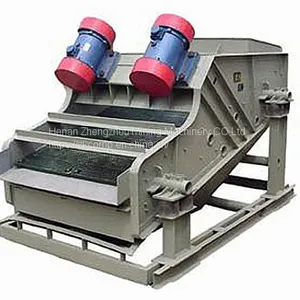

Multi deck Circular Vibrating Screen introduction
Vibrating screens operate on an inclined surface. A deck moves in a circle. It operates with a continuous feed rather than in batches, leading to much greater output. The incline allows the feed to move through the device. A circular vibrating screen is a screening machine employed in processes involving particle separation. In particle processes screening refers to separation of larger from smaller particles in a given feed, using only the materials’ physical properties.
Multi deck Circular Vibrating Screen features
The circular vibrating screen is made of elliptical motion. It is a multi-layer, high-efficiency new type of vibrating screen designed for quarry screening stone. It can also be used for coal preparation, mineral processing, building materials, electric power and chemical industry. And other departments for product grading.
[ Feed particle size ]:
[ Production capacity]: 25-900 m3/h
[ Scope of application]: sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
[ Applicable materials]: quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase.
Multi deck Circular Vibrating Screen technical parameters| Model |
Mesh Area (m2) |
Mesh size range(mm) |
Capacity (m3/h) |
Motor (KW) |
Weight (KG) |
Overall Size (mm) |
| 2YK 1225 | 6 | 4-50 | 8-60 | 5.5 | 3500 | 2930×1860×870 |
| 3YK 1225 | 9 | 4-50 | 10-70 | 5.5 | 3850 | 3070×1860×1210 |
| 2YK 1230 | 7.2 | 4-50 | 12-78 | 7.5 | 4200 | 3430×1860×870 |
| 3YK 1230 | 10.8 | 4-50 | 13-80 | 7.5 | 4600 | 3570×1860×1210 |
| 2YK 1237 | 8.88 | 4-50 | 15-86 | 7.5 | 4800 | 4050×1860×870 |
| 3YK 1237 | 13.22 | 4-50 | 16-90 | 7.5 | 5200 | 4270×1860×1210 |
| 2YK 1535 | 10.5 | 5-50 | 20-125 | 11 | 5890 | 4120×2210×1230 |
| 3YK 1535 | 15.75 | 5-50 | 21-125 | 11 | 6700 | 4360×2210×1610 |
| 2YK 1545 | 13.5 | 5-50 | 22-150 | 15 | 6330 | 5120×2210×1230 |
| 3YK 1545 | 20.25 | 5-50 | 22-150 | 15 | 6800 | 5360×2210×1610 |
| 4YK 1545 | 27 | 5-50 | 22-155 | 18.5 | 7800 | 5930×2210×2060 |
| 2YK 1548 | 14.4 | 5-50 | 22.5-162 | 15 | 6980 | 5420×2210×1230 |
| 3YK 1548 | 21.6 | 5-50 | 22.5-162 | 15 | 7700 | 5660×2210×1610 |
| 4YK 1548 | 28.8 | 5-50 | 22.5-162 | 18.5 | 8700 | 6230×2210×2060 |
| 2YK 1848 | 17.28 | 5-80 | 25-206 | 15 | 9080 | 5420×2550×1420 |
| 3YK 1848 | 25.92 | 5-80 | 32-276 | 18.5 | 9600 | 5660×2550×1780 |
| 4YK 1848 | 34.54 | 5-80 | 32-285 | 22 | 11100 | 6290×2550×2160 |
| 2YK 2160 | 25.2 | 5-100 | 50-475 | 30 | 11780 | 6720×2840×1530 |
| 3YK 2160 | 37.8 | 5-100 | 50-475 | 30 | 12800 | 7030×2840×1910 |
| 4YK 2160 | 50.4 | 5-100 | 50-497 | 37 | 14800 | 7300×2840×2380 |
