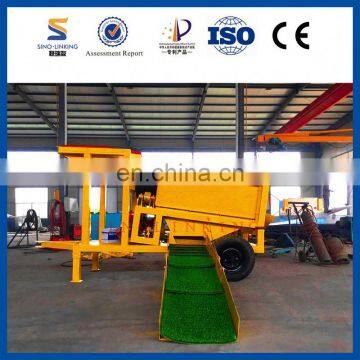

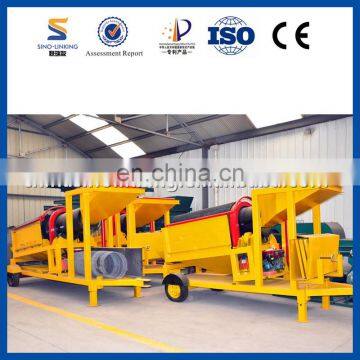

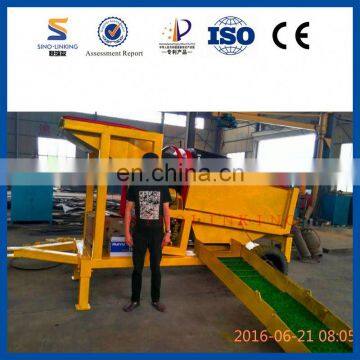

10TPH mobile small scale gold mining equipment in China

Features of 10TPH mobile small scale gold mining equipment in China

1) The SLK-MGT series gold washing plant are designed according to your specific mining conditions and requirements.

2) Feeding system with grizzly hopper feeder, water spray pipes inside the hopper for spray waters to the soils.

3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay. (if required)

4) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.

5) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).

6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.

8) Powering system with Cummins diesel generator with all batteries, cables and wires.

9) Multiple sets of heavy duty mining type tires with towing mechanism for fully mobility and portability.

10) Gold refinery plant to make final product of gold bars.

11)  Easy for installation, operation and maintaining.

12) One-Sop gold mining solutions from A to Z.

Feeding System

Name: Grizzly Hopper Feeder

Size (mm): 2000*2200

Grizzly screen space: 150mm

Remark: Water spray pipes along hopper sides

Function: to feed the materials evenly to the trommel

Name: Clay Scrubber
Size (mm): φ1000*2000
Remark: with inside water spray pipes

Fuction: to break off hard clays

Screening System

Name: Gold Trommel

Size (mm): φ1200*3000

Remark: 2 layer trommel screen

Function: for washing, screening and separating the minerals

Coarse Gold Recovery System

Name: Vibrating chute + sluice box
Quantity: 2 pcs
Remark: hydraulic vibrating chute

Function: for coarse gold recovery (+5mm)

Recovery rate: 99%

Fine Size Gold Recovery System

Name: Knelson type centrifugal concentrator

Concentrator Model: SLK-C60, C80, C100

Quantity: 2-4 pcs

Remark: Fully continuous type

Function: for fine size dust gold recovery (-6mm)

Recovery Rate: 99%

Water Supplying System

Name: Submersible slurry pump

Quantity: 1-3 pcs

Water flow: 120-400m³ per hour

Funciton: for supplying water to the wash plant

Mobile System

Name: mobile base

Item: wheels or sledge

Quantity: 6-10 pcs

Function: to provide full mobility and portability

Why Chose Us?

1. 15 Years factory

2. Exported to 35 countries

3. Over 300 projects worldwide

4. All customized design

5. Ensure highest recovery rate of gold

6. Short delivery time

7. Easy to install, operate and maintain

8. Super durable heavy duty machine

9. One-stop mining solution

10. Turn-key operations

FAQ

1. Are you factory?

Yes, established in 2002, over 15 years factory

2. How big are you?

In total 4 work shops, 12,000㎡, office 2000㎡, 65 workers

3. What equipment do you build?

Specialized in alluvial/placer gold/diamond mining equipment

4. Whats the capacity of the gold/diamond mining equipment

from 5TPH to 450TPH

5. What brand engine/diesel generator do you use?

Cummins, Weichai, Yuchai, etc, or as required
