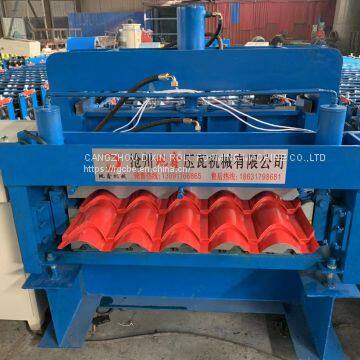

Double layer galvanized roofing sheet roll forming machine
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency

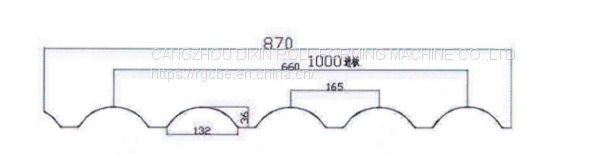

1.Panel drawing according to your request

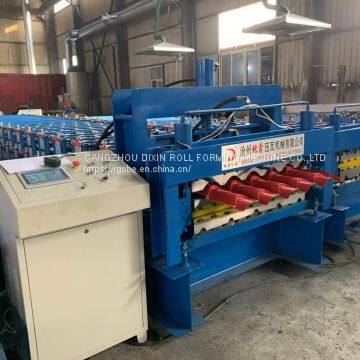

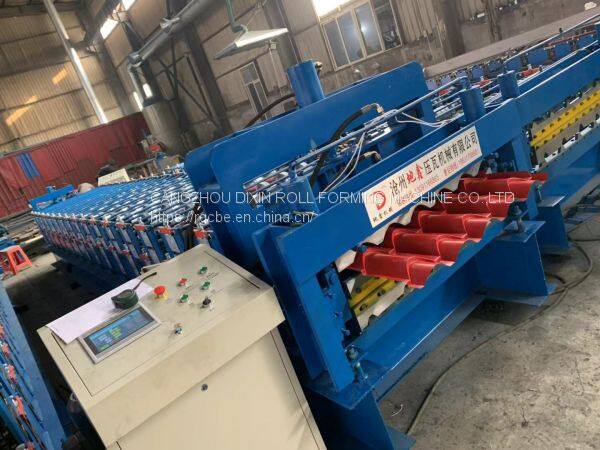

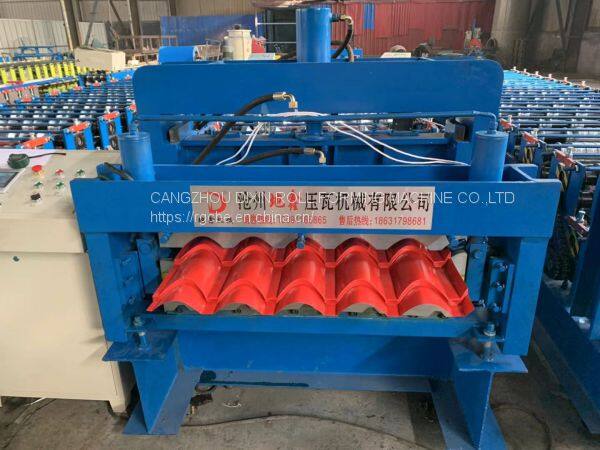

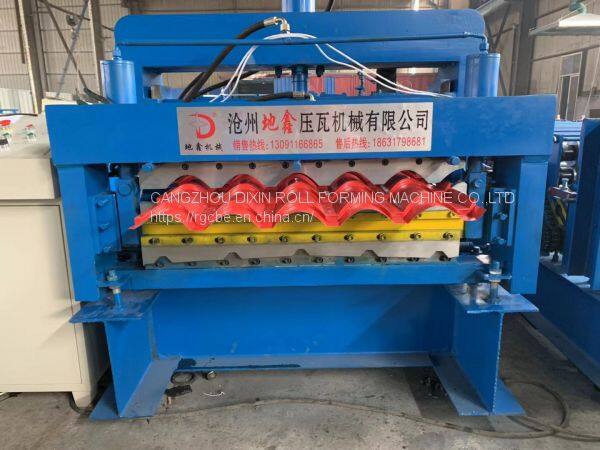

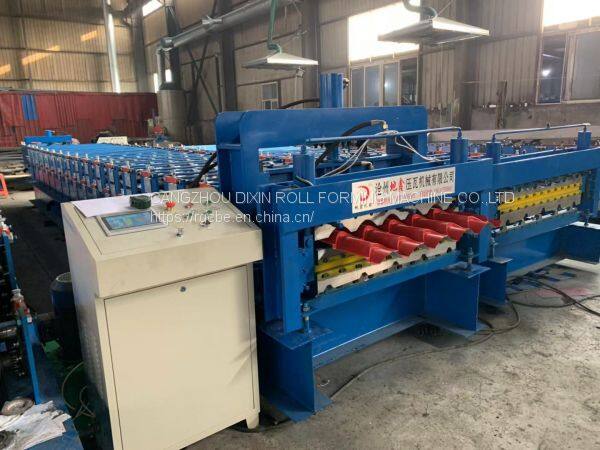

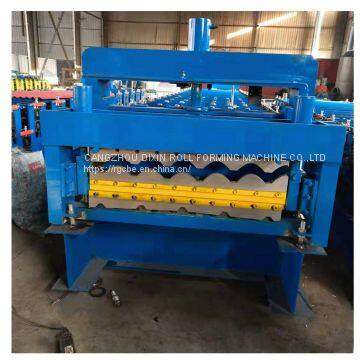

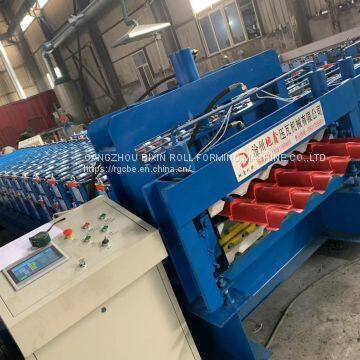

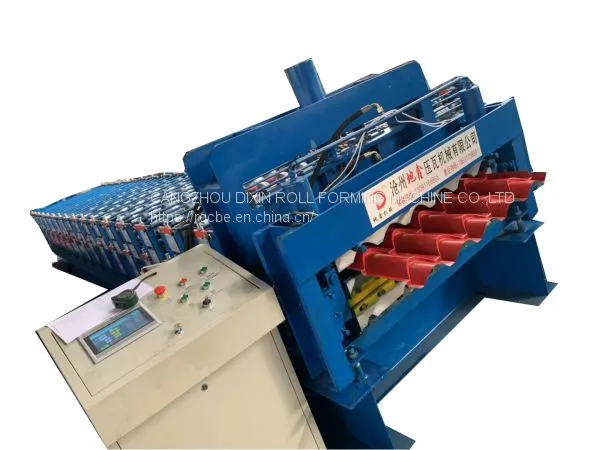

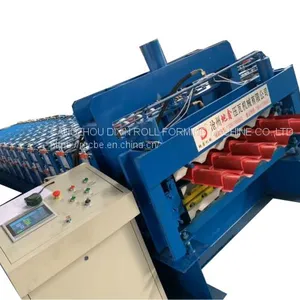

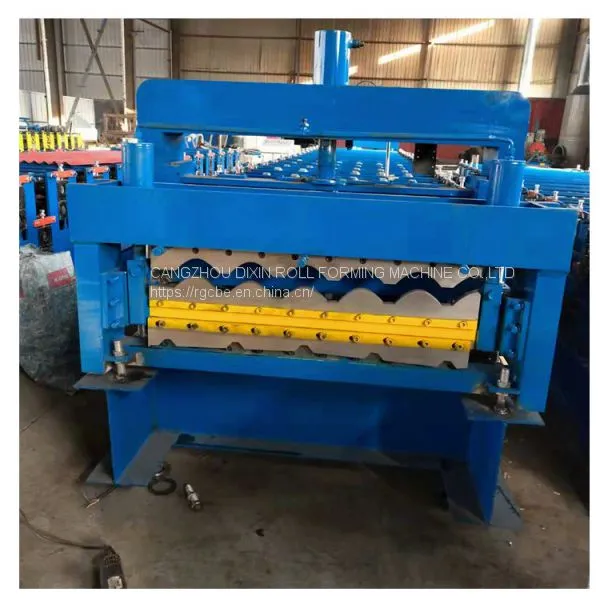

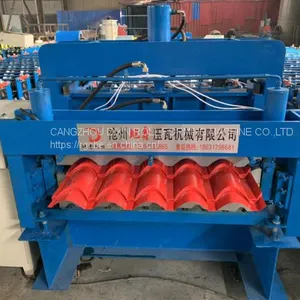

2.some machine pictures for your reference.
3.Machine Technique parameters
Material Thickness |
0.3—0.7mm |
Un Coiler |
5.5 tons manual |
Rolling Speed |
2-4m/min |
Roller Stations |
18 stations |
Roller material |
45# steel, coated with chrome |
Maim Motor Power |
5.5kw |
|
Hydraulic cutting Power
|
4kw |
Material Of Cutting |
CR12 with quench treatment |
Hardness |
HRC58-62 |
Tolerance |
+-1.5mm |
Electric Source |
380V, 50HZ,3 phase Also can satisfy customer’s require |
Control System |
PLC with touch screen |
Way Of Drive |
1.2 inch single chain |
4.About our company
Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
Packing and shipping
Customer visit
welcome visit our factory ,kindly please send your details quotation
t'sapp:008618231723279
