tractor implements front end loader
- 300 Unit / Units per Month
- Qingdao
- T/T Credit Card
Product Details
| Brand Name: | MAP | Place of Origin: | Shandong, China | Model Number: | Tz |
| Type: | front | Use: | Tractor attachments | Certification: | CE |
| After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

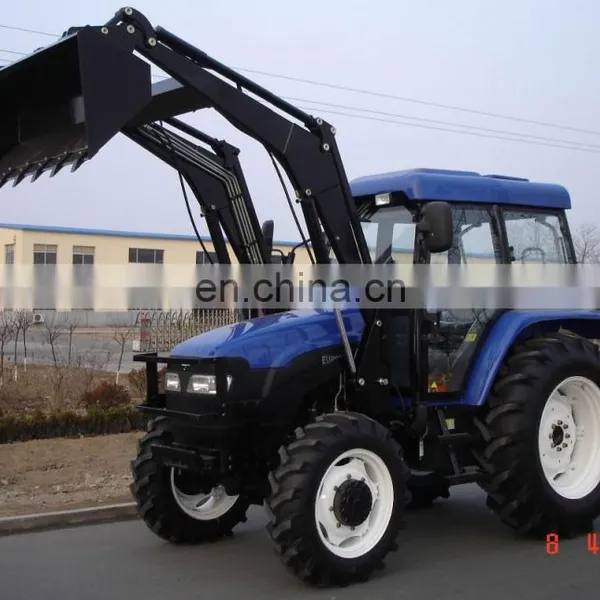

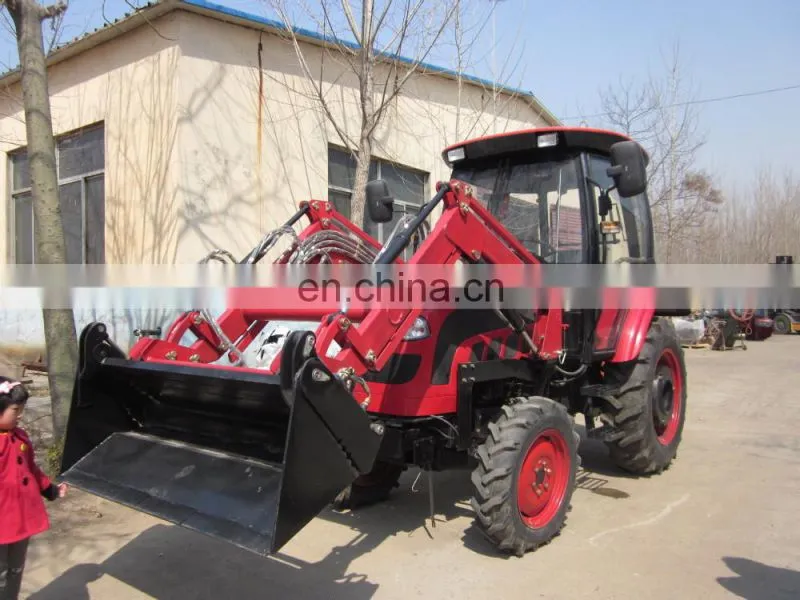

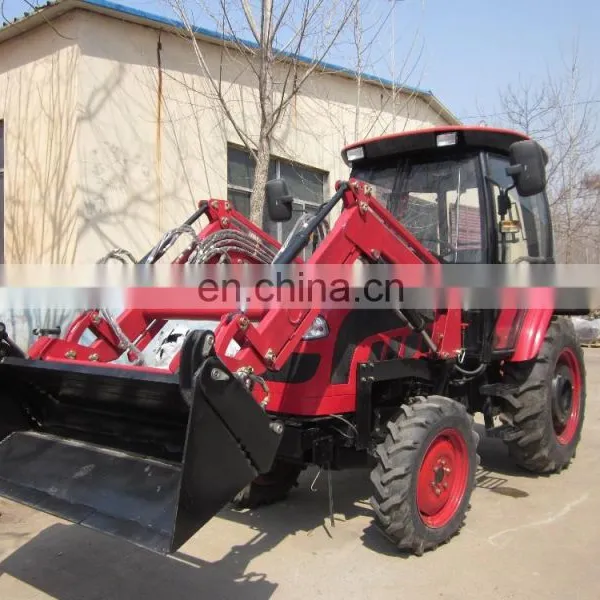

tractor implements front end loader
A. Max. Lift Height – Measured at Pivot Pin (mm)
C. Max. Lift height – Under Level Bucket (mm)
D. Max. Dump reach (mm)
E. Dump angle (°)
F. Reach with Bucket on Ground (mm)
G. Rollback angle on ground (°)
H. Max. Digging depth (mm)
Specification&Features&Options:
·Standard level lift.
·Perfect painting and finishing in details.
·Special requests on the the size of bucket are available
·Quick release bracket and it is very easy for installation.
·Quick release attachment which can work with others Extensive implements

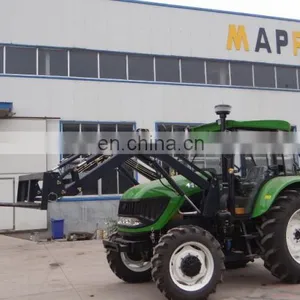

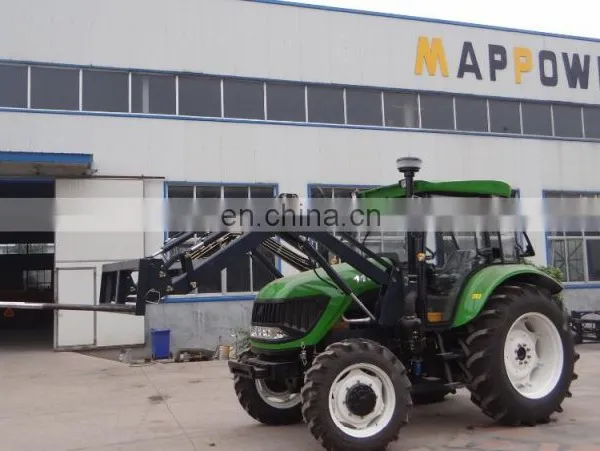

·4 in 1 bucket, pallet fork and wood Grapple are available on it.
Technical Data | FLD20-30C/D | FLD40C/D | FTD60C/D | FLD80-90C/D |
Max. Lift Height – Measured at Pivot Pin (mm) | 2100 | 2400 | 2700 | 3020 |
Max. Lift height – Under Level Bucket (mm) | 1700 | 2000 | 2300 | 2500 |
Max. Dump reach (mm) | 600 | 800 | 930 | 1020 |
Dump angle (°) | 45 | 42 | 42 | 42 |
Reach with Bucket on Ground (mm) | 1560 | 1830 | 2000 | 2200 |
Rollback angle on ground (°) | 26 | 26 | 27 | 28 |
Max. Digging depth (mm) | 100 | 100 | 110 | 130 |
Rated load (kg) | 260 | 360 | 600 | 800 |
Bucket Capacity (m3) | 0.2 | 0.3 | 0.46 | 0.6 |
Pallet Fork Length(mm) | 800 | 1030 | 1240 | 1240 |
Pallet Fork Width(mm) | 800 | 960 | 1184 | 1200 |
Pallet Fork Load(kg) | 260 | 360 | 600 | 800 |
Wood Grapple Width(mm) | 800 | 960 | 1184 | 1200 |
Wood Diameter/Weight(mm)/(kg) | 600/260 | 800/360 | 1000/600 | 1200/800 |
Recommended Tractor HP | 20-30hp | 35-50 | 55-80hp | 75-105hp |
