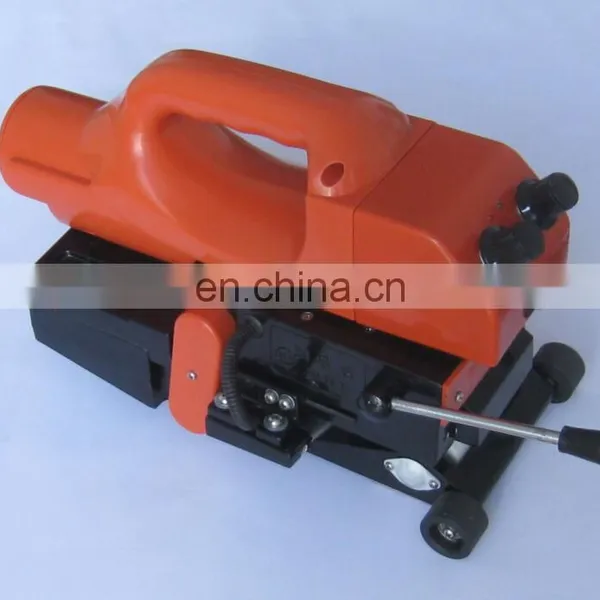

Hot geomembrane wedge welding machine
The welder can weld geomembrane of various thickness and are applicable for welding of all thermal fused material such asPE, PVC, HDPE, EVA, PP.
Feature:
1. Unique SCM temperature/speed control system ensure higher accuracy and good stability.
2. High-power heating pipe with cooper alloy hot wedge ensure quicker heating-up and longer service life.
3. Imported silicone pressure wheel with good flexibility make it more heat-resistant and more wear-resistant.
Application to

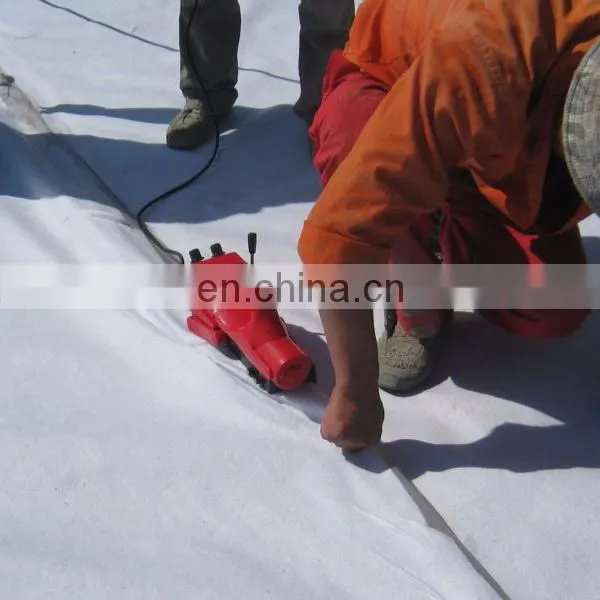

Widely used in highway, railway, tunnel, reservoir drains, sewage, garbage, building waterproofing works .
Technical Data:
| PE/PP Tunnel geomembrane welder | |
| Voltage | 220V |
| Frequency | 50HZ |
| Electric motor power | 1100W |
| Welding speed | 0-4M/Min |
| Heating Temperature | 0-450°C |
| Welding material thickness |
0.2mm-2.5mm |
| Welding width | 15MMX2 |
| Joint width | 100---150mm |
| Welding strength | 85% |
| Weight | 4.8KG |
Accessaries:
Hot wedge
Steel pressure wheel

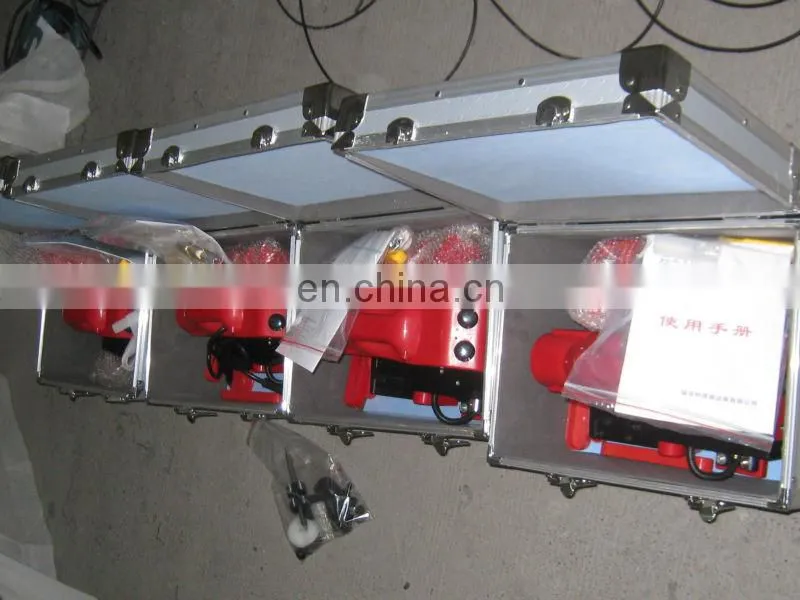

Packing:
1pc/aluminium box
Weight 9.5kg after packing
Note: voltage and frequency can be changed as your need.
