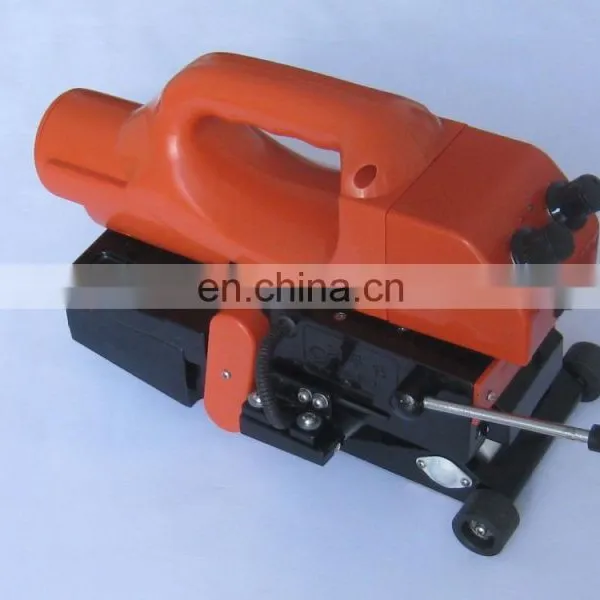

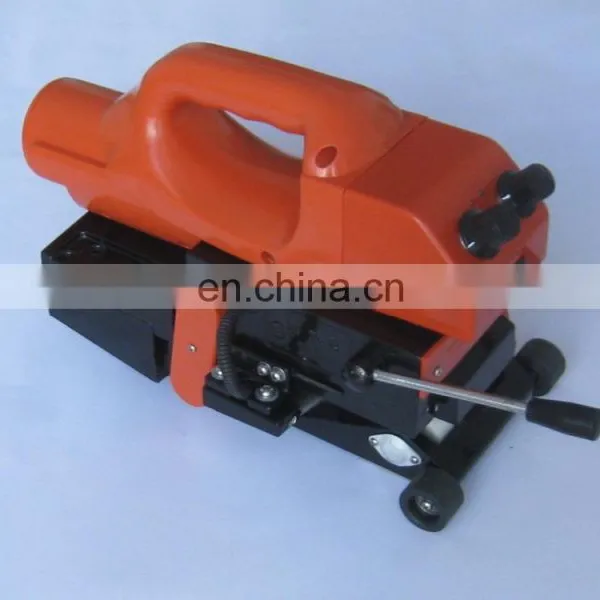

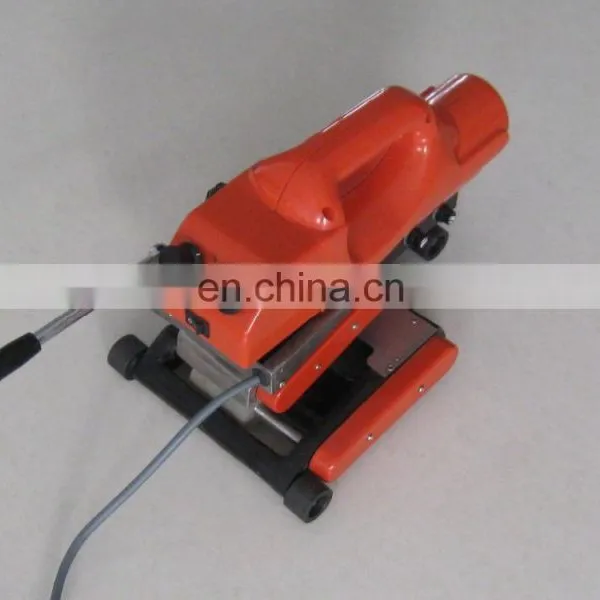

PE/PP ultrasonic welding machine ,Tunnel geomembrane welder
The welder can weld geomembrane of various thickness and are applicable for welding of all thermal fused material such asPE, PVC, HDPE, EVA, PP.
Feature:
1. Unique SCM temperature/speed control system ensure higher accuracy and good stability.
2. High-power heating pipe with cooper alloy hot wedge ensure quicker heating-up and longer service life.
3. Imported silicone pressure wheel with good flexibility make it more heat-resistant and more wear-resistant.
Application to

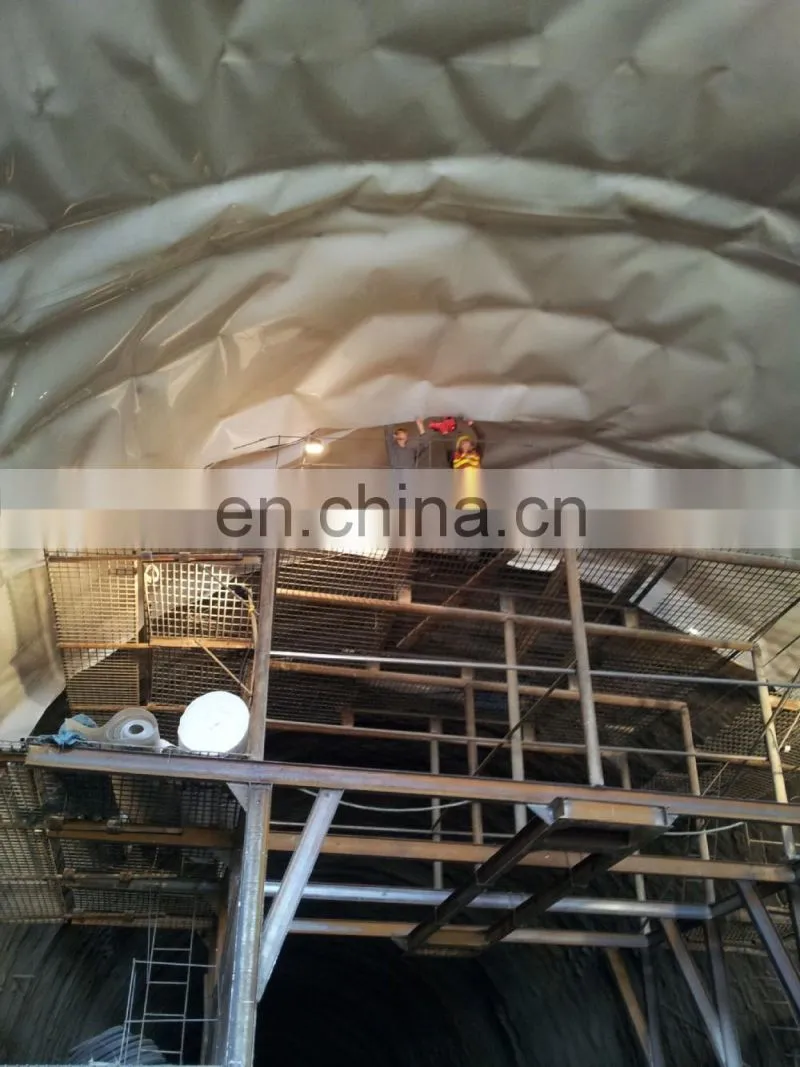

Widely used in highway, railway, tunnel, reservoir drains, sewage, garbage, building waterproofing works .
Technical Data:
| PE/PP Tunnel geomembrane welder | |
| Voltage | 220V |
| Frequency | 50HZ |
| Electric motor power | 1100W |
| Welding speed | 0-4M/Min |
| Heating Temperature | 0-450°C |
| Welding material thickness |
0.2mm-2.5mm |
| Welding width | 15MMX2 |
| Joint width | 100---150mm |
| Welding strength | 85% |
| Weight | 4.8KG |
Accessaries:
Hot wedge
Steel pressure wheel

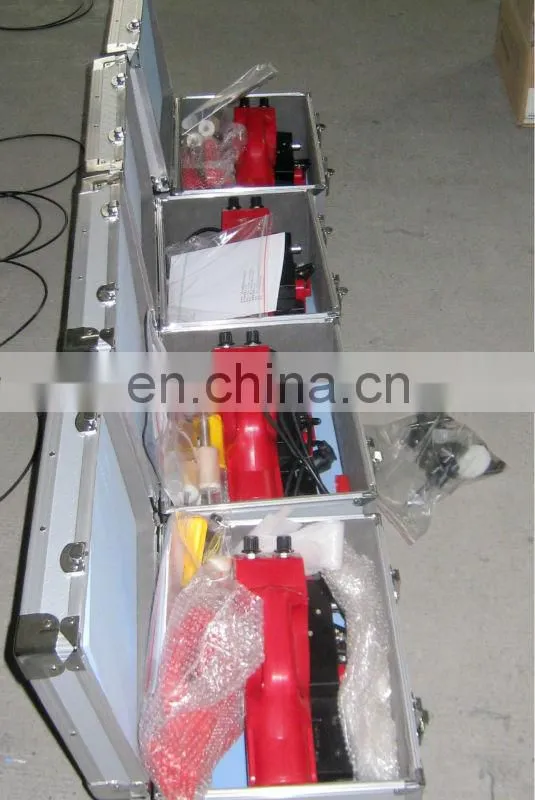

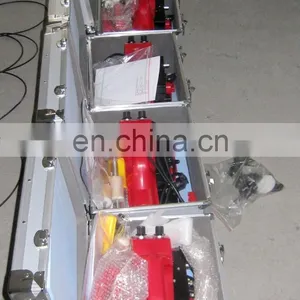

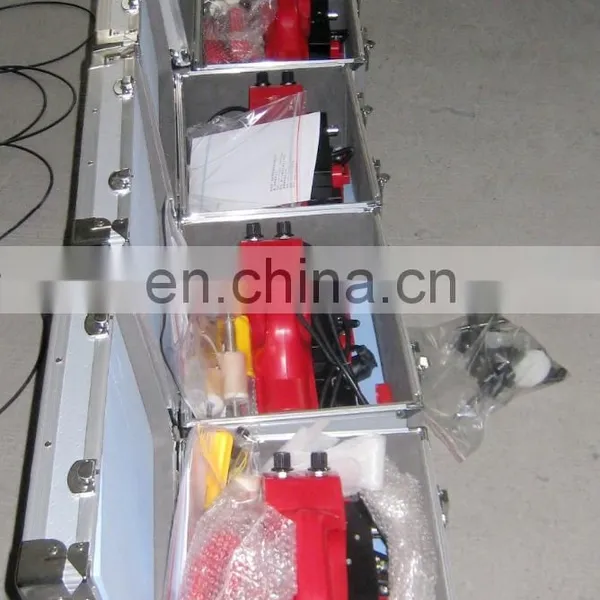

Packing:
1pc/aluminium box
Weight 9.5kg after packing
Note: voltage and frequency can be changed as your need.
