Construction Transport 3 Ton Mini Dump Truck FCY30

Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-1
Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-2
Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-3
Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-4
Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-5
Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-6

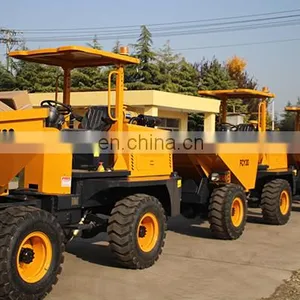

Construction Transport 3 Ton Mini Dump Truck FCY30 thumbnail-7
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-1
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-2
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-3
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-4
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-5
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-6
Construction Transport 3 Ton Mini Dump Truck FCY30 photo-7
US$ 6,000 - 7,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Condition:
New
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Map Power
Place of Origin Shandong, China
Condition New
Transmission Type Automatic
Gross Vehicle Weight 2400
Fuel Type Diesel
Emission Standard Euro 3
Drive Wheel 4x4
Dimensions (L x W x H) (mm) 4300*2200*1800mm
Engine Capacity 4 - 6L
Capacity (Load) 1 - 10t

Construction transport 3 ton mini dump truck FCY30

    As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.

Construction transport 3 ton mini dump truck FCY30

Product Advantages

 There have three different model of 3Ton site dumper.

FCY30 normal model,FCY30R which the bucket can have a 180 degree rotate in any direction,FCY30S which have a self loader.

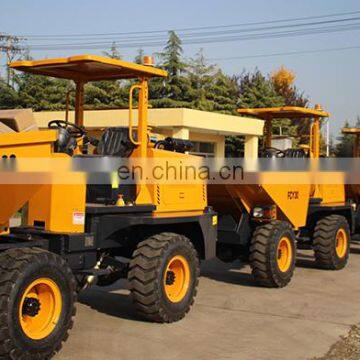

FCY30---3Ton site dumper Normal model

Construction transport 3 ton mini dump truck FCY30
  • Mini dumper 3 ton,4*4drive,Hydraulic steering,can unload materials smoothly by strong hydraulic pressure unloading syst   As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on. .
  • Low walking speed,short-distance transport of bulk materials.
  • Easy operation,small turning radius can be used in a narrow environment.
  • Off road wider types as option ,can work in muddy and bumpy roads.

FCY30S---3Ton site dumper with self loader

Construction transport 3 ton mini dump truck FCY30
  • Multi-purpose Mini dumper 3 Ton /FCY30S with self loading bucket, 4X4 Drive, Hydraulic Steering can unload materials smoothly by strong hydraulic pressure unloading system
  • It can used as a transport dumper, loaders forklifts and other functions To achieve a multi-purpose tool
  •  It is the world: s most versatile construction machinery
  • It is hydraulically operated, reliable, flexiable and light weight, compact size, ow fuel consumption

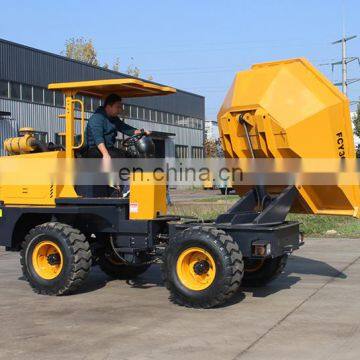

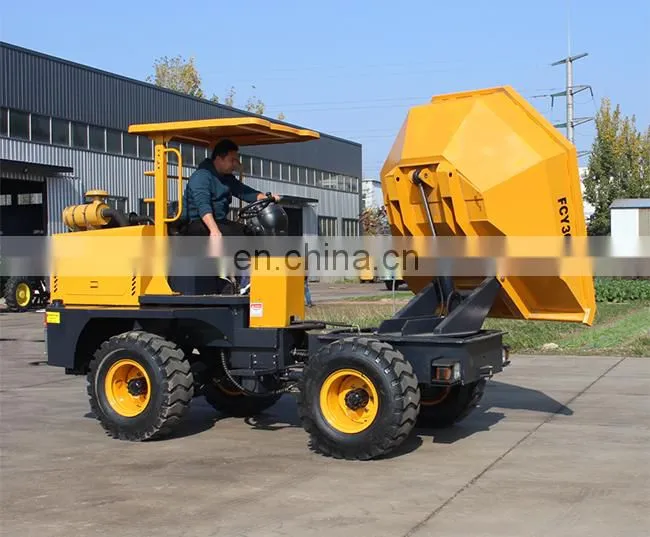

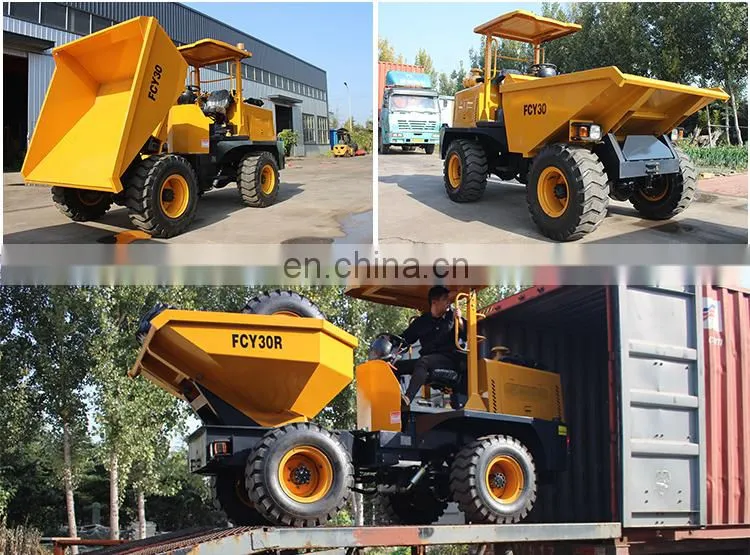

FCY30R---3Ton site dumper with 180 rotate burket
Construction transport 3 ton mini dump truck FCY30
  •  FCY30R Dumper is the based on the design of FCY30 can move 180 rotate bucket in any direction.
  • Use QC490 Engine, big Horse power low fuel consumption DEUTZ engine optional Hydraulic steering, 4x4 drive. With ROPS With combined control panel.
  • Off road wider tyres as option, can work in muddy and bumpy roads.
  • Low walking speed, short-distance transport of bulk materials.



Product Description

Site Dumper FCY30 Technical Specifications

Item

Specifications

Engine details

Model

QC4B2-52M22(490)



Engine Type

In-line, water-cooled, 4

cylinders, diesel engine



Rated Power

38kw



Rated Speed

2200r/min

Hydraulic

Tipping and steering

Bucket

Bucket Capacity

1.5m³



Rated Loading Weight

3000kg



Operating Weight

2550kg

Dimensions

Overall Length

4300mm



Overall Height

2200mm



Overall Width

1800mm



Wheel Base

1360mm



Tread

1960mm



Minimum turn radius

4000mm

Tire

Front tire:12-16.5

Rear Tire:12-16.5

Drive Type

4*4 Wheel Drive

Minimum Turning Radius (m)

4.225

Tipping System

Hydraulic Tipping hopper

Max, Grade Ability (%)

30

Electric Starting

Yes



Construction transport 3 ton mini dump truck FCY30

Construction transport 3 ton mini dump truck FCY30

FAQ



 1.Why chose you?

a.We are manufacturer, our products have excellent quality and competitive price.
b.We have good after-sales services,you can find us at per 24 hours.
c.Strictly testing and checking before shipping.
2.How to deal the order?
a.Payment terms: T/T 30% as deposit, and 70% before delivery.
b.We'll show you the photos of the products and packages before you pay the balance.
3.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
4.What is your warranty policy?
We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
5.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefit.
b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

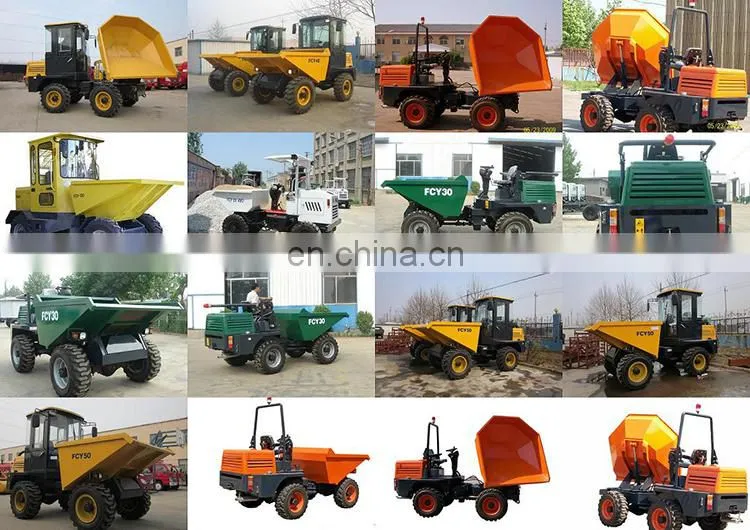

6.What are the hot products of your company?


Construction transport 3 ton mini dump truck FCY30 Construction transport 3 ton mini dump truck FCY30 Construction transport 3 ton mini dump truck FCY30
site dumper wheel loader  Automobile crane
Construction transport 3 ton mini dump truck FCY30 Construction transport 3 ton mini dump truck FCY30 Construction transport 3 ton mini dump truck FCY30
 Excavator  Backhoe loader  forklift
Company Information

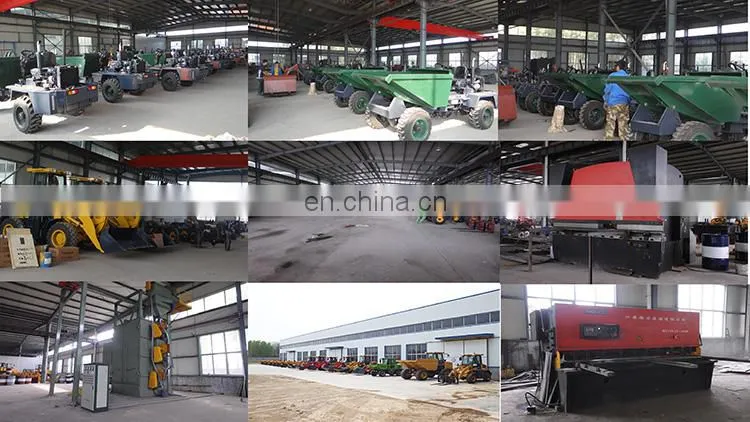

Weifang Yishan Heavy Machinery Co., Ltd is a professional manufacture of wheel loaders,dumpers,tractors,implements and whole solution supplier specializing in construction machinery and agricultural equipment.

  We can also design new products according to customer and market demand.We have more than 10 years experiences in professional manufacturing.And successfully sold equipment to around 40 countries and areas.We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in future.

Construction transport 3 ton mini dump truck FCY30

Construction transport 3 ton mini dump truck FCY30
