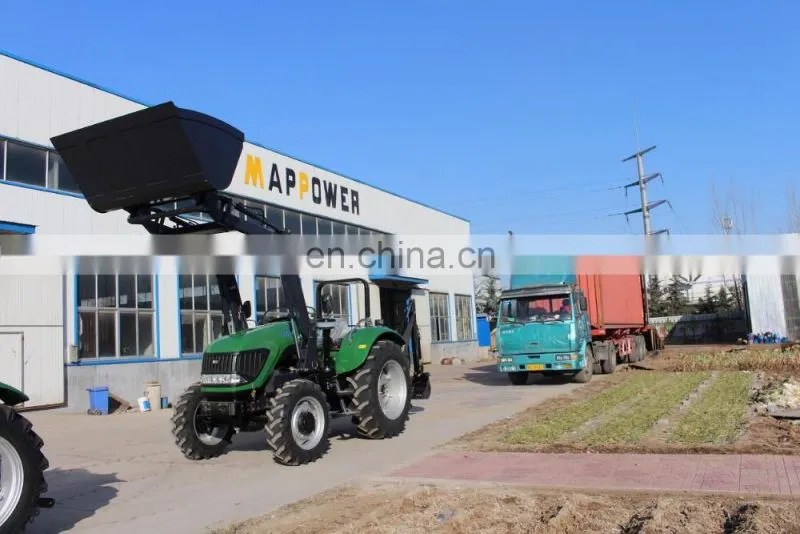

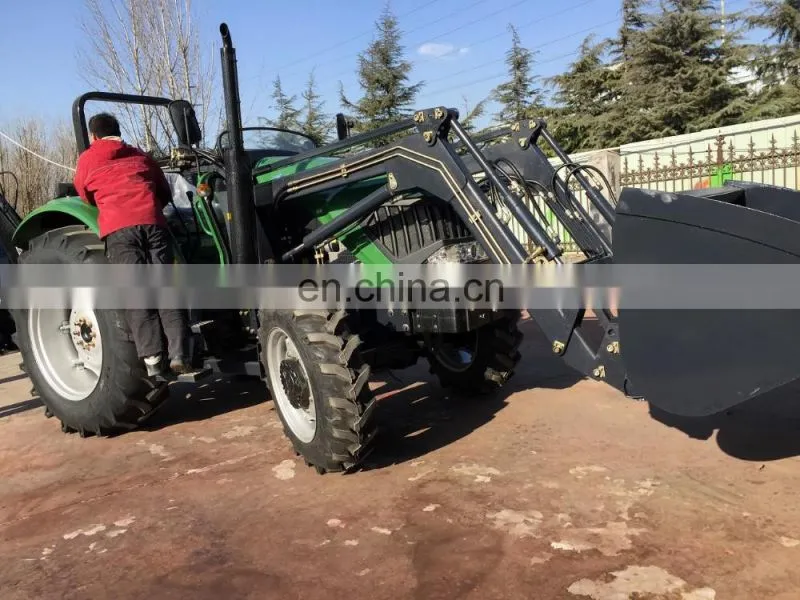

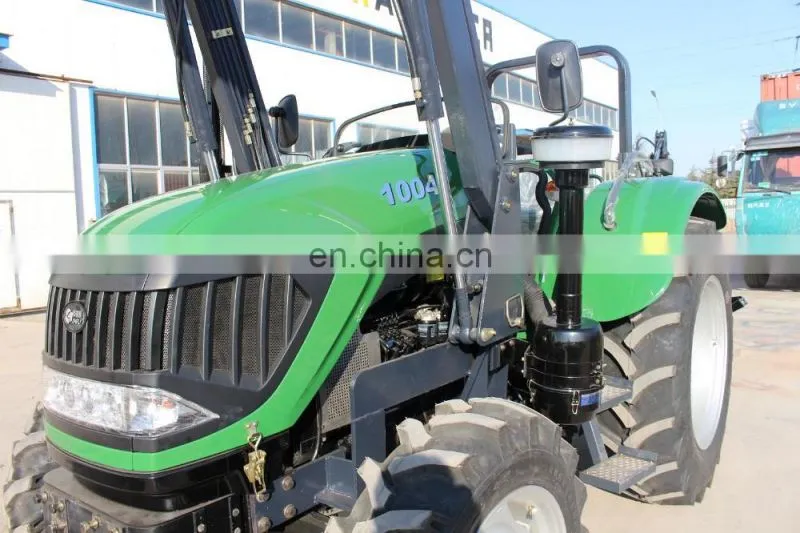

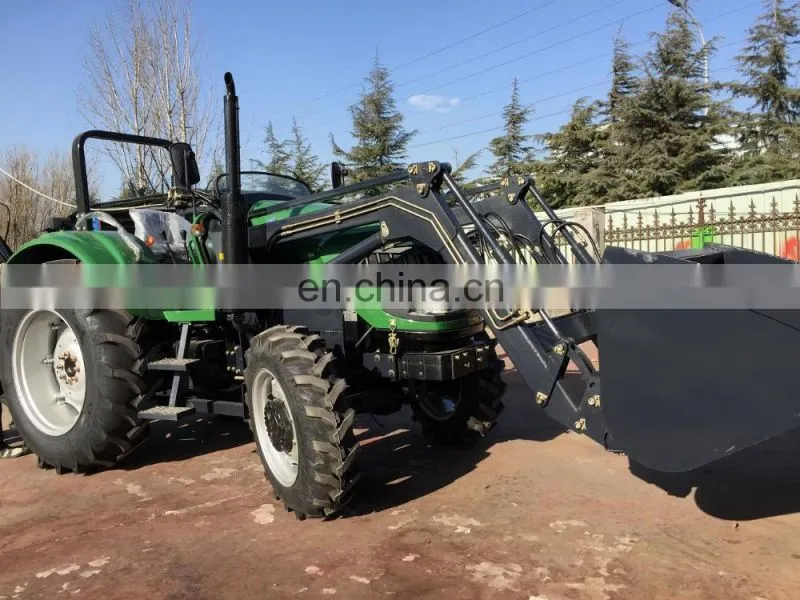

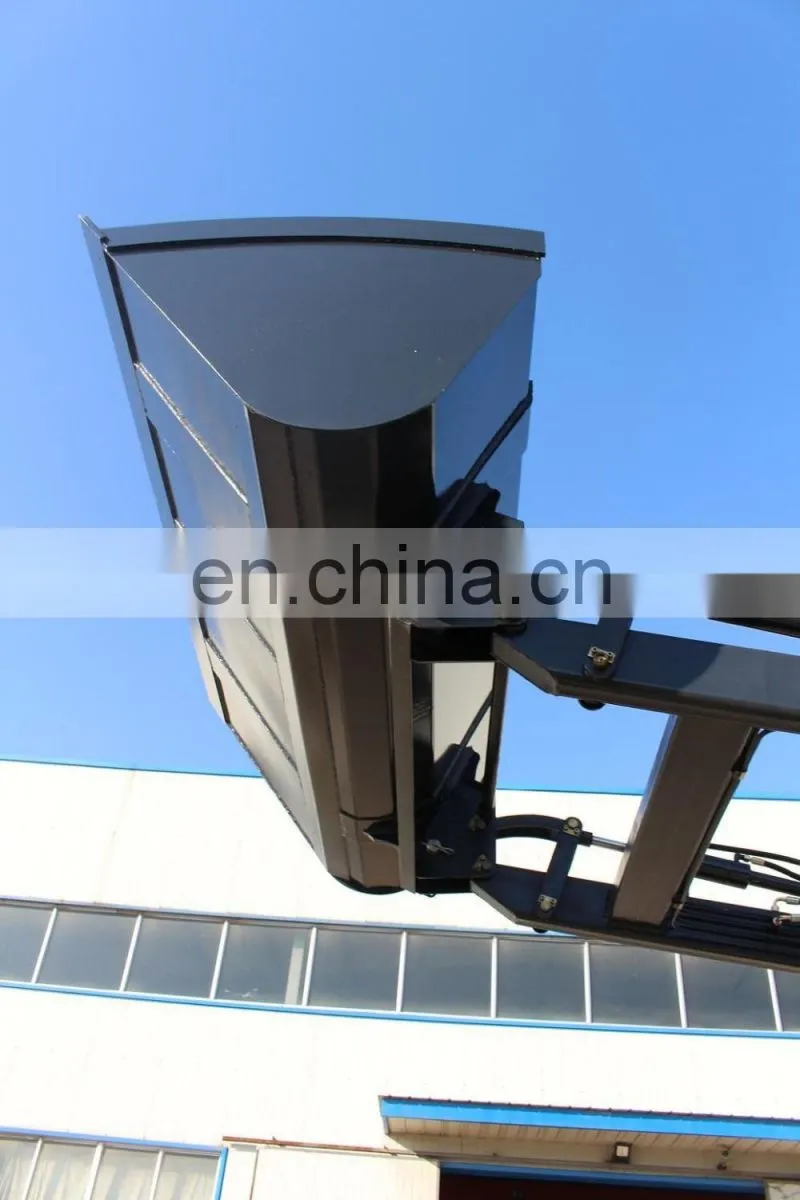

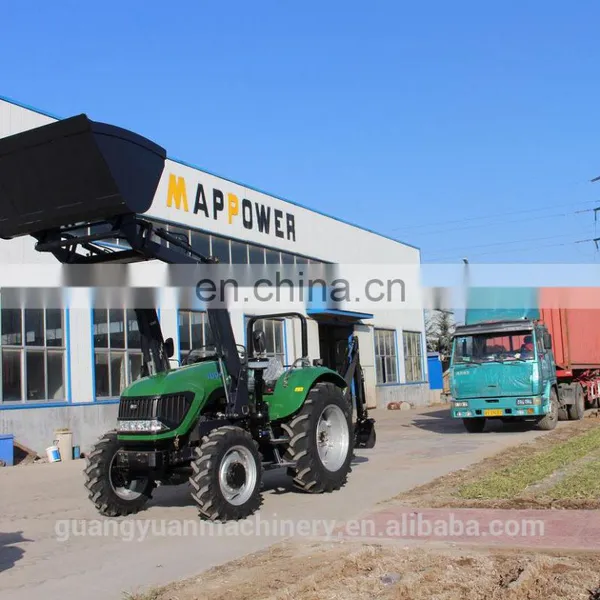

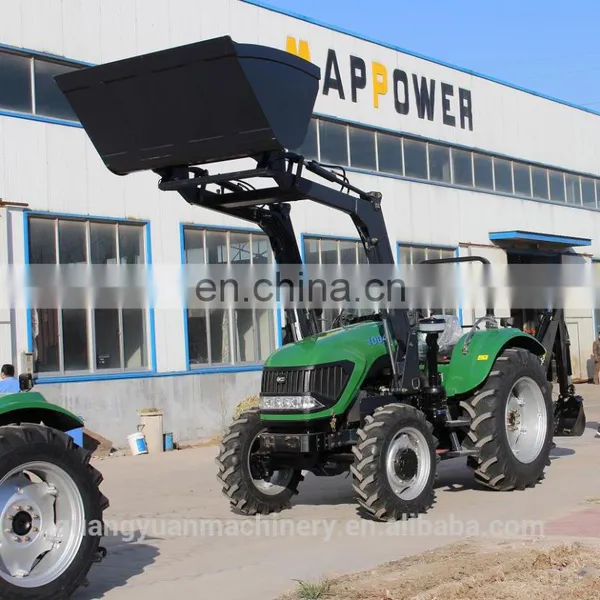

100 HP 4WD Farm Tractor 1004 With Front End Loader

100 HP 4WD Farm Tractor 1004 With Front End Loader thumbnail-1
100 HP 4WD Farm Tractor 1004 With Front End Loader thumbnail-2
100 HP 4WD Farm Tractor 1004 With Front End Loader photo-1
100 HP 4WD Farm Tractor 1004 With Front End Loader photo-2
US$ 15,250 - 16,850 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Model Number:
1004
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Map Power
Place of Origin Shandong, China
Model Number 1004
Type Wheel Tractor
After-sales Service Provided Overseas service center available
Usage Farm Tractor
Condition New
Power(W) 73500
By wheel 4WD

100 HP 4WD farm  tractor 1004 with front end loader





1. Famous engine from YTO, 4 cylinders



2. Multiple gears for wider speed range



3. Powerful traction available for vehicle towing and hauling operations



4. Hydraulically-separated pin type differential lock



5. Hydraulic braking system featuring light and agile operation



6.Powerful lifting capable of lifting heavy and compound-operation agricultural implements;





Model

Map1004

Drive type

4X4

Engine model

YTO, 4 cylinder, direct injection, in-line, diesel Engine

Capacity of fuel tank(L)

150

Rated speed (r/min)

2300

Engine power (kw)

73.5

Lowest fuel consumption (g/kw·h)

≤242

Clutch

Dry,Dual-stage type

PTO Speed(rpm)

540/1000 or 760/1000(optional)

Gear shift

8F+4R

Category of 3-point link

Category II

Lifting capacityat point of 610mm(KN)

>16

Dimension LxWxH mm

3700x2250x2700

Wheel base(mm)

2195

Track base(mm) front wheel

1610

Track base(mm) rear wheel

1620-2020 (usual 1620)

Front tyre

11.2-24

Rear tyre

16.9-34



 100 HP 4WD farm tractor 1004 with front end loader100 HP 4WD farm tractor 1004 with front end loader100 HP 4WD farm tractor 1004 with front end loader





100 HP 4WD farm tractor 1004 with front end loader100 HP 4WD farm tractor 1004 with front end loader
