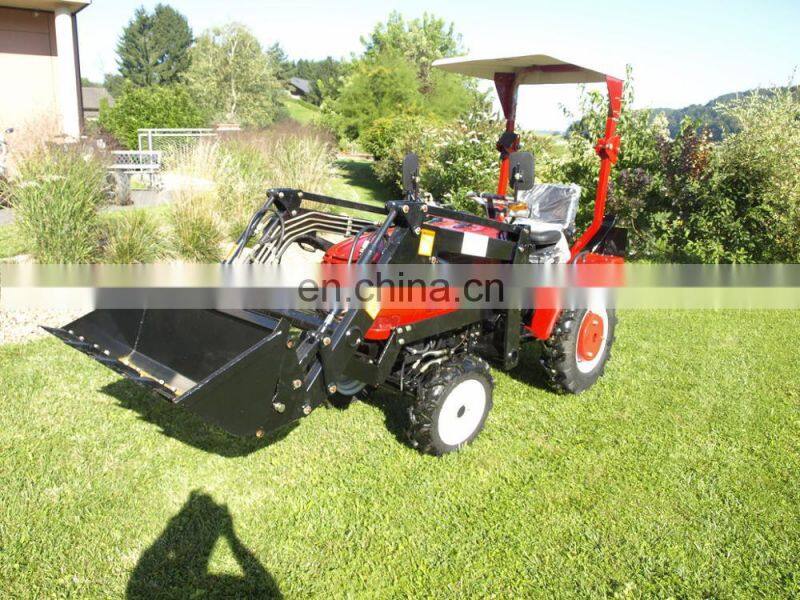

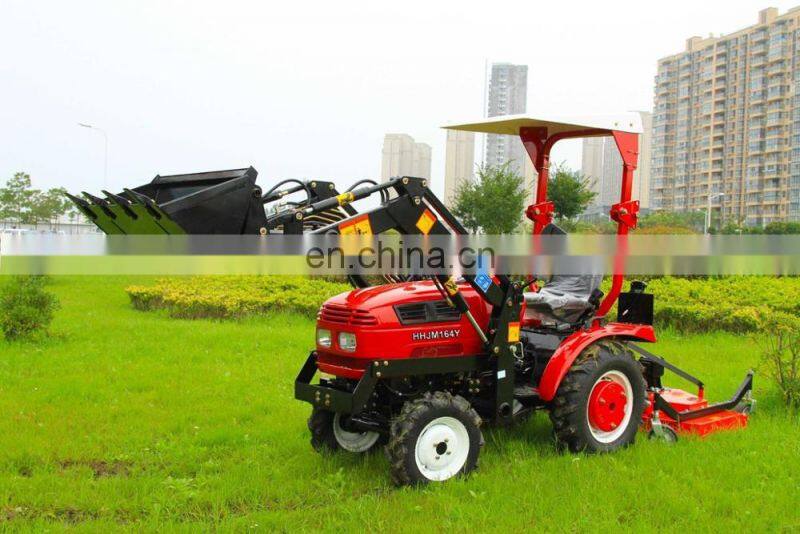

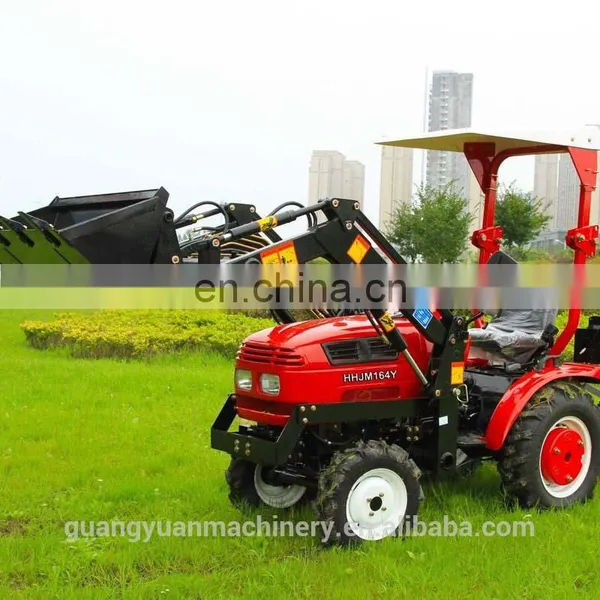

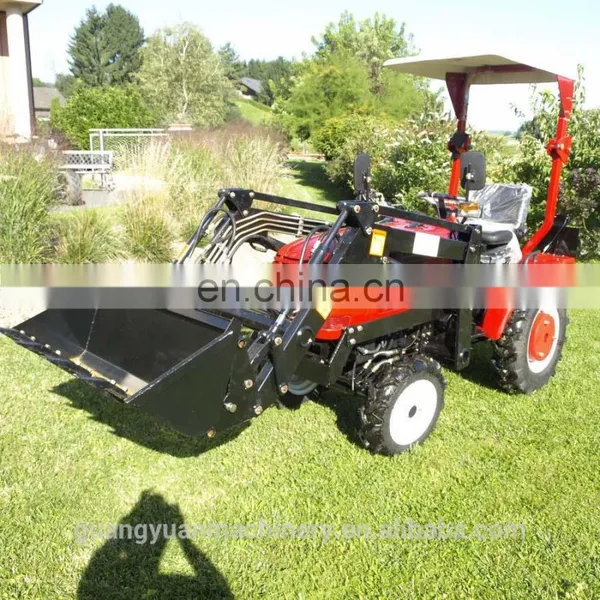

Help CenterJINMA 16HP 4WD Mini Garden Tractor JM164Y
US$ 4,950 - 5,350
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Model Number:
754B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4LZ-3.0 Small Mini Rice Combine HarvesterUS$ 10,000 - 13,000MOQ: 1 Unit -
4LZ-3.0 Paddy Mini Combine HarvesterUS$ 10,000 - 13,000MOQ: 1 Unit
-
4LZ-3.0 Small Mini Combine Harvester PriceUS$ 10,000 - 13,000MOQ: 1 Unit
-
Harvesters 4LZ-2.5 Mini Combine Harvester PricesUS$ 10,000 - 13,000MOQ: 1 Unit
-
Weifang Harvesters 4LZ-2.5 Mini Combine Harvester for SaleUS$ 10,000 - 13,000MOQ: 1 Unit
Brand Name
Map Power
Place of Origin
Shandong, China
Model Number
754B
Type
Wheel Tractor
After-sales Service Provided
Engineers available to service machinery overseas
Usage
Farm Tractor
Condition
New
Power(W)
55200
By wheel
4WD
JINMA 16HP 4WD Mini Garden Tractor JM164Y
|
Tractor Parameters |
Model | JM164Y | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm): | 2602X1050X2403 | ||
| Wheel Track (mm) | Front | 750 | |
| Rear | 840,940 | ||
| Wheel Base(mm) | 1290 | ||
| Ground Clearance (mm) | 248 | ||
| Rated Traction Force(N) | 3500 | ||
| Construction Mass(kg) | 890 | ||
| Min.Turning Radius(m) | 2.4 | ||
|
The oretical Speed (Without creeper gear(km/h) |
Forward | 1.32,1.95,3.04,6.01,8.9,13.92 | |
| Reverse | 1.63,7.46 | ||
|
Engine Specifications |
Model | 3M78 | |
| Type | 3-Cylinder Vertical,water cooled,4 stroke cycle | ||
| Rated Power(kw/hp) | 11.8/16 | ||
| Rated Speed (rpm) | 2400 | ||
| Bore*Stroke(mm) | 78X78.4 | ||
| Total Displacement(L) | 1.123 | ||
|
Drive System |
Clutch | 7'Single Stage | |
| Gear Box | (3+1)X2 | ||
| Main Drive | Columniform gear | ||
| Differential | Bevel gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmission | Spur Gear,External,Gearing | ||
|
Travelling Mechanism |
Tyre | Front | 5.00-12 |
| Rear | 7.5-16 | ||
| Steering Gear | Power Steering | ||
| Brake | Disc type | ||
|
Working Device |
Hydraulic System |
Lifting Capacity at 610mm Behind Lift Pioint (kN) |
2640 |
| 3-Point Suspension | Category:0 | ||
| P.T.O Shaft | Rotating Speed (rpm) | 540/720/1000 | |
| Spline Size | 6-φ35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY | ||
