Home > Transportation > Tractor & Parts > Tractor > 2019Joystick Control 2ton Wheel Loader

2019Joystick Control 2ton Wheel Loader

2019Joystick Control 2ton Wheel Loader thumbnail-1
2019Joystick Control 2ton Wheel Loader thumbnail-2

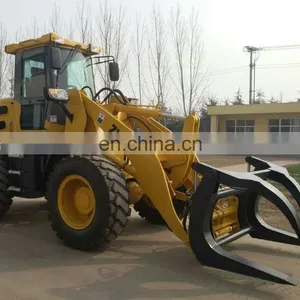

2019Joystick Control 2ton Wheel Loader thumbnail-3
2019Joystick Control 2ton Wheel Loader thumbnail-4
2019Joystick Control 2ton Wheel Loader thumbnail-5
2019Joystick Control 2ton Wheel Loader thumbnail-6
2019Joystick Control 2ton Wheel Loader photo-1

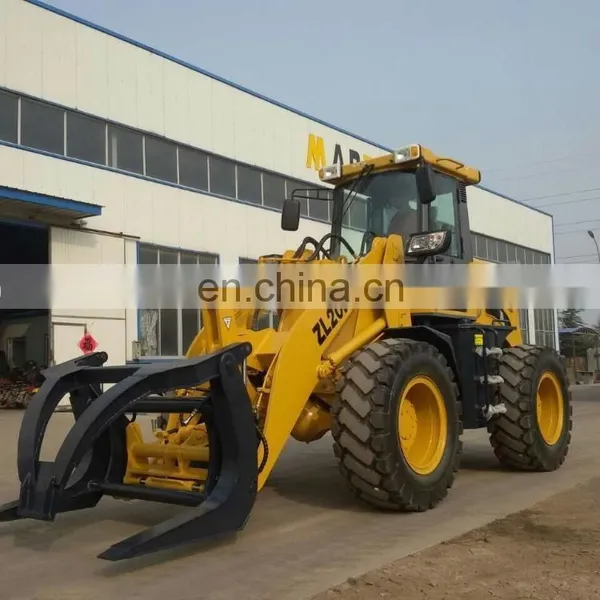

2019Joystick Control 2ton Wheel Loader photo-2

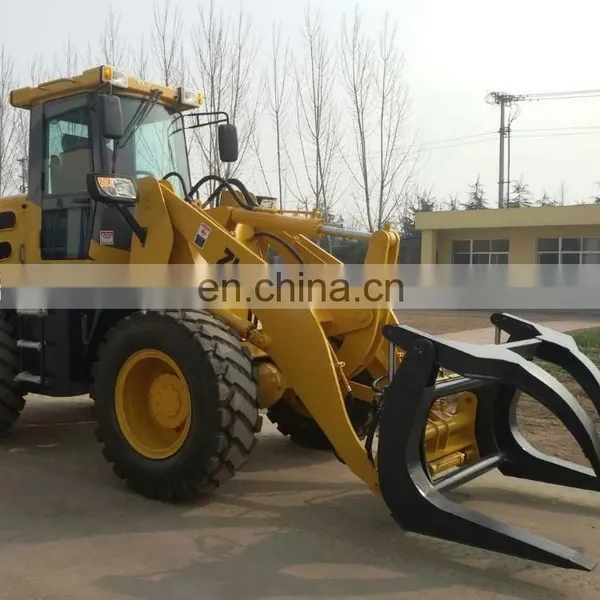

2019Joystick Control 2ton Wheel Loader photo-3

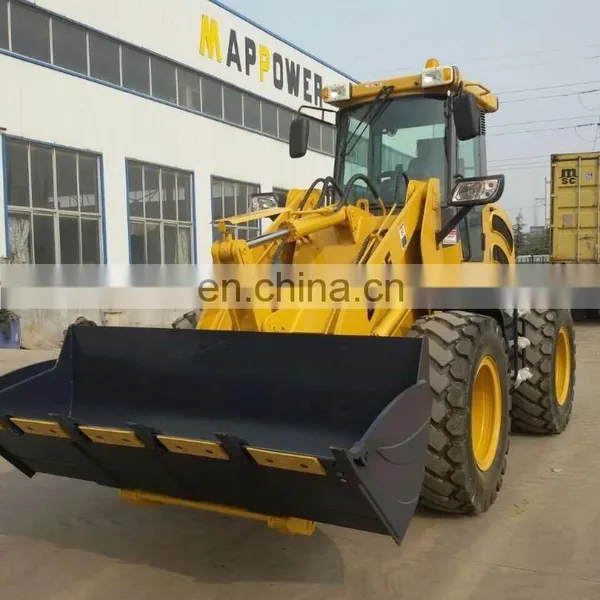

2019Joystick Control 2ton Wheel Loader photo-4

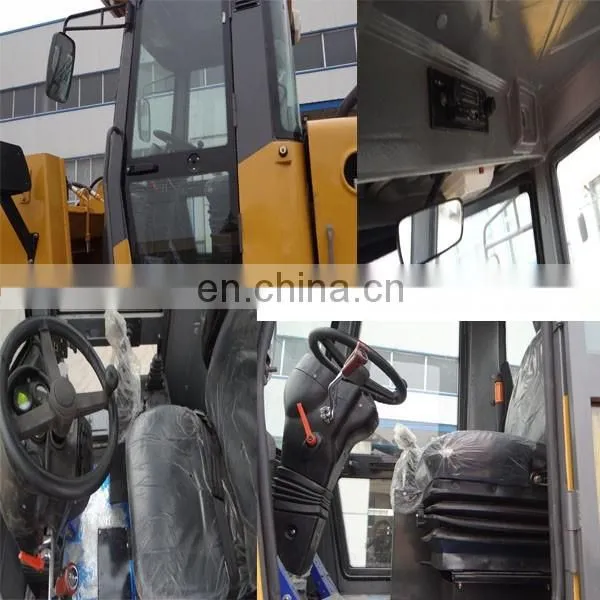

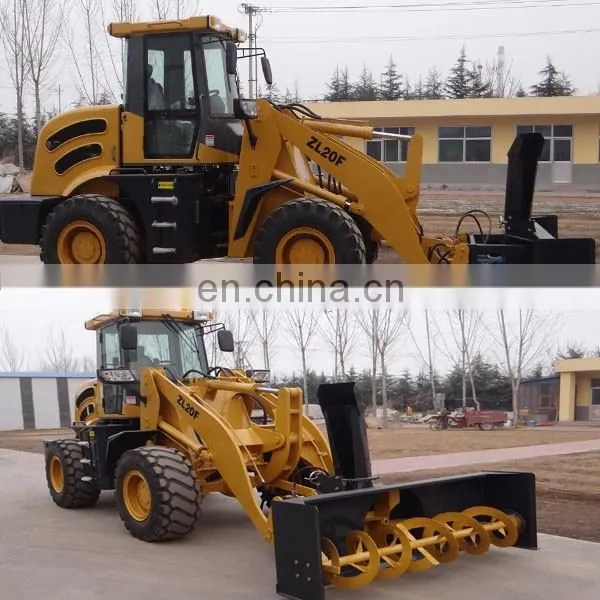

2019Joystick Control 2ton Wheel Loader photo-5
2019Joystick Control 2ton Wheel Loader photo-6
US$ 13,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
MAP
Place of Origin:
Shandong, China
Type:
Wheel Tractor
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MAP
Place of Origin Shandong, China
Type Wheel Tractor
Usage Farm Tractor
Drive Type Gear Drive
Condition New
By wheel 4WD


Product Description

2019 Joystick control 2ton wheel loader

1)Dumping height:3100mm

2)Loader Bucket :1.2CBM

3)17/16-20 Tire

4)Joystick and Pilot control



 Detailed Specification:

Performance

1

rated loading

2000kg

2

overall weight

5800kg

3

rated bucket capacity

1.2m3

4

maximum tractive force

54KN

5

maximum breakout force

45.4KN

6

maximum grade ability

30

7

maximum dump height

3000mm

8

maximum dump reach

752mm

9

overall dimension (L×W×H)

5600×2100×2850mm

10

minimum turning radius

5251mm

Engine

11

model

4105

12

type

Vertical, in-line, water cooled, 4-stroke diesel engine

13

No. of cylinder-bore/stroke

4105×125mm

14

rated power

58kw2200r/min

15

maximum torque

270N.m

16

min fuel-consume ratio

≤243g/kw.h

Transmission system

17

torque converter

YJ280A

18

gearbox mode

Countershaft power-shift

19

gear shift

2 forward shift  2 reverse shift

20

maximum speed

24km/h

Drive axles

21

main reducing spiral



Circular Arc Bevel gear, single stage

22

decelerating mode

Single stage planetary type

23

wheel base (mm)

2400mm

24

wheel tread

1640mm

25

ground clearance

310mm

Hydraulic system

26

system working pressure

16MPa

27

boom lifting time

4.8s±0.2s

28

 total time

9.2s±0.5s

29

fuel tank capacity

80L

30

function of leveling automatically

 yes

Brake system

31

service brake

air assist disc brake on 4 wheels

32

parking brake

flexible shaft operated external drum

Tyre

33

type specification

16/7020

34

front tyre pressure

0.22Mpa

35

rear tyre pressure

0.18Mpa

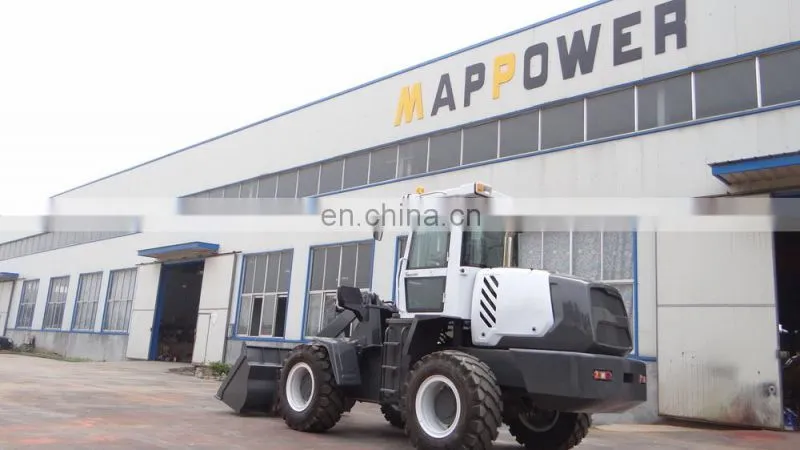

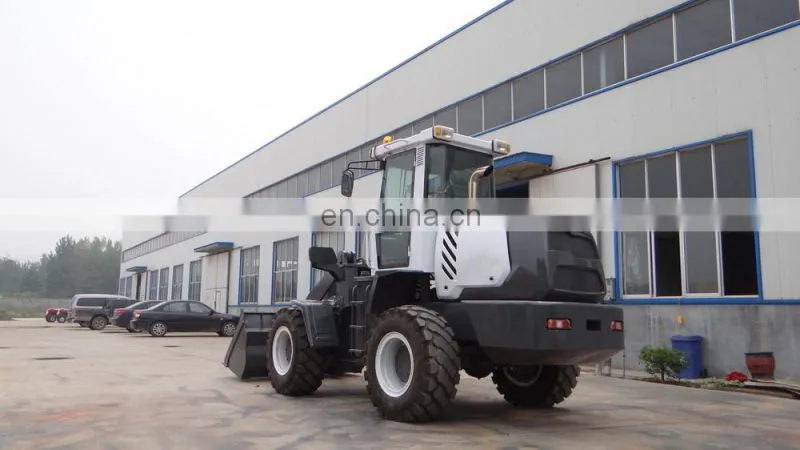

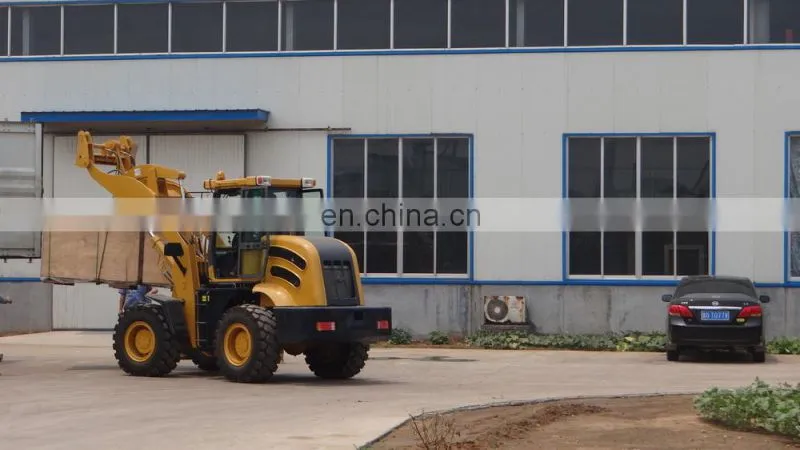

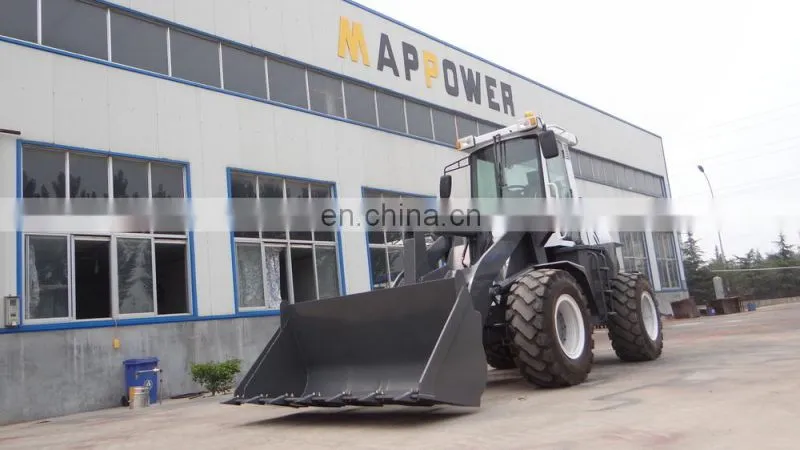

 2019Joystick control 2ton wheel loader2019Joystick control 2ton wheel loader2019Joystick control 2ton wheel loader


Our Services

Warranty and payment term



1) Payment terms: 30% T/T deposit,balance before shipment.



2) Delivery time: 25-30 days after we receive the deposit



3) Warranty period:1 year or 2000 working hours which comes first.

 2019Joystick control 2ton wheel loader2019Joystick control 2ton wheel loader



Company Contact Information

Contact :tony

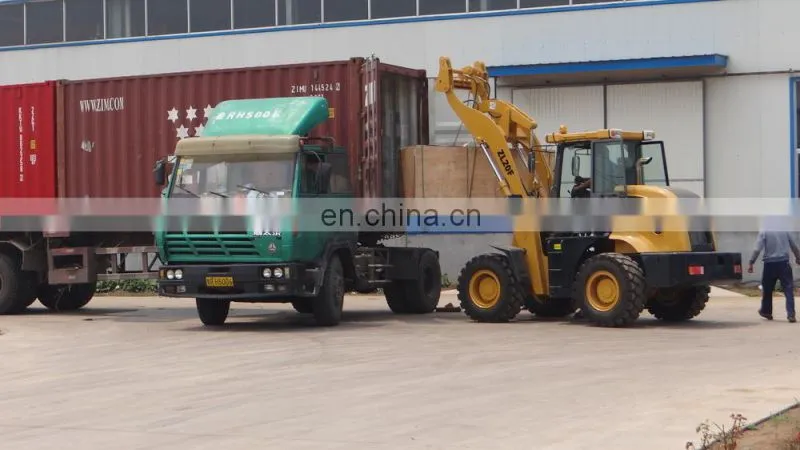

Packaging & Shipping



Packing and shippment



 Packing:Nude packing



Shipping:2SET IN 40HQ container

2019Joystick control 2ton wheel loader2019Joystick control 2ton wheel loader





FAQ



  2019Joystick control 2ton wheel loader
