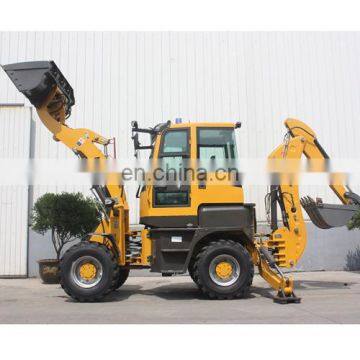

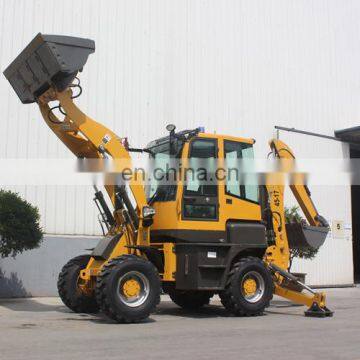

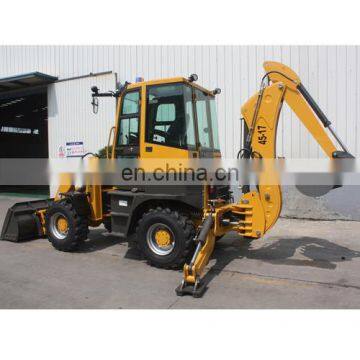

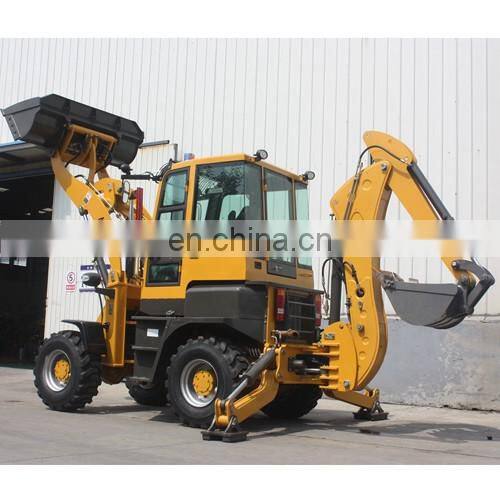

New cheap front and backhoe loader 45-17
1.Transmission:Hydraulic
2.With CE
3. Bucket capacity 0.3m3
Item |
Unit |
Parameter |
|
Total Length |
mm |
5100 |
|
Total Height |
mm |
2900 |
|
Total Width |
mm |
1960 |
|
Total Operating Weight |
kg |
4900 |
|
Backhoe Parameter |
Rated Backhoe Bucket Capacity |
m3 |
0.3 |
Max. Digging Depth |
mm |
3400 |
|
Max. Digging Height |
mm |
5000 |
|
Max. Digging Radius |
mm |
4600 |
|
Turning Angle of Movable Arm |
° |
180 |
|
Loading Parameter |
Rise Height |
mm |
3700 |
Discharge Height |
mm |
2700 |
|
Min. Turning Radius |
mm |
4800 |
|
Discharge Distance |
mm |
1000 |
|
Rated Loading Weight |
kg |
1600 |
|
Rise Time of Movable Arm |
s |
3.5 |
|
Fall Time of Movable Arm |
s |
2.5 |
|
Comprehensive Time |
s |
7 |
|
Engine Model |
YUNNEI 490T |
||
Rated Power of Engine |
KW |
42 |
|
Engine Flux |
ml/r |
40 |
|
Work Pressure |
Mpa |
16~18 |
|
Max. Grade Ability |
% |
25 |
|
Walking Speed |
km/h |
18~28 |
|
Min. Ground Clearance |
mm |
260 |
|
Wheel Base |
mm |
2000 |
|
Tread |
mm |
1530 |
|
Tire model |
mm |
20.5-16 |
|

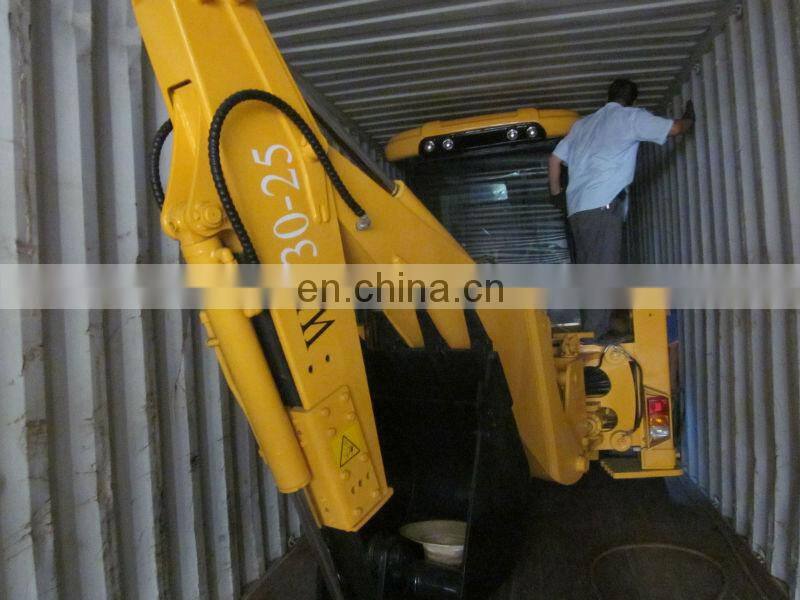

Shippin1 set in 40HQ
