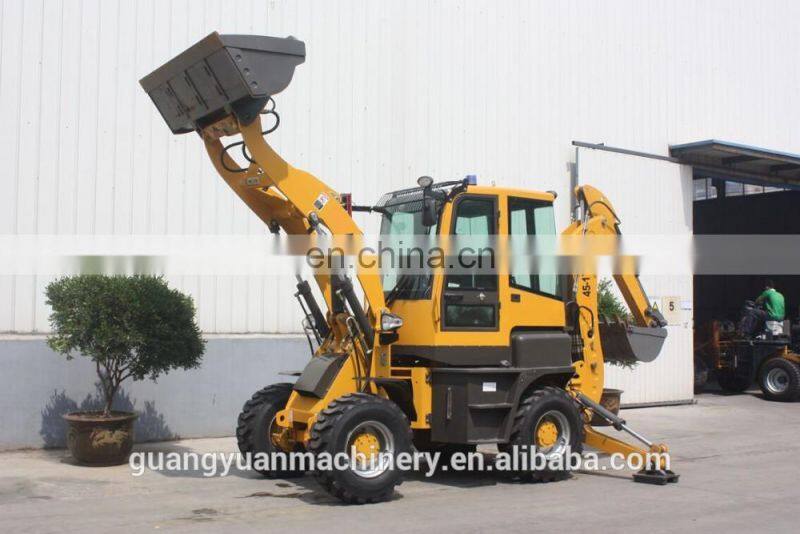

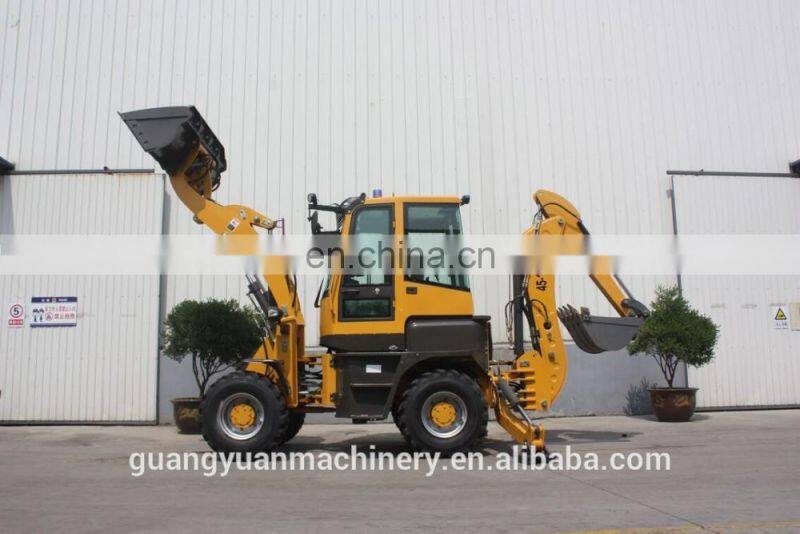

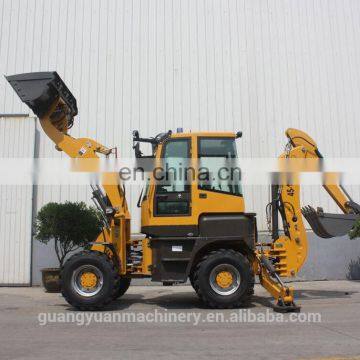

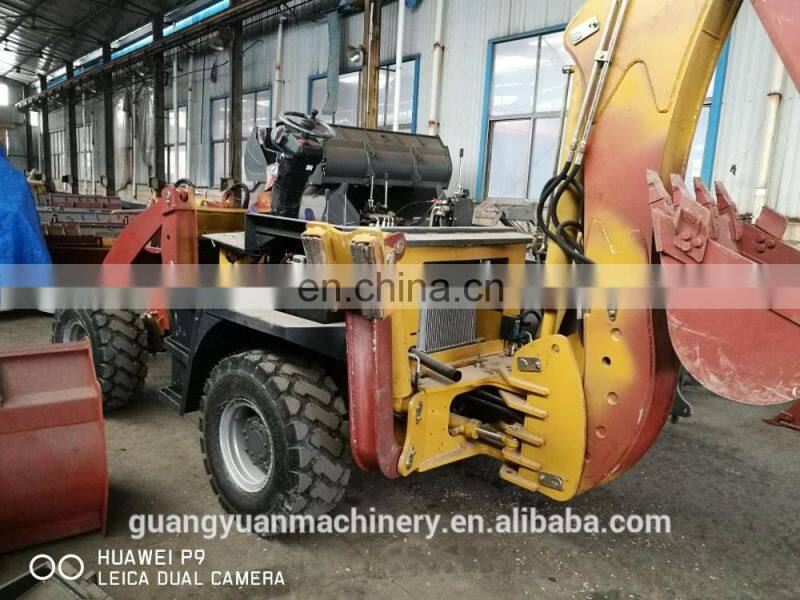

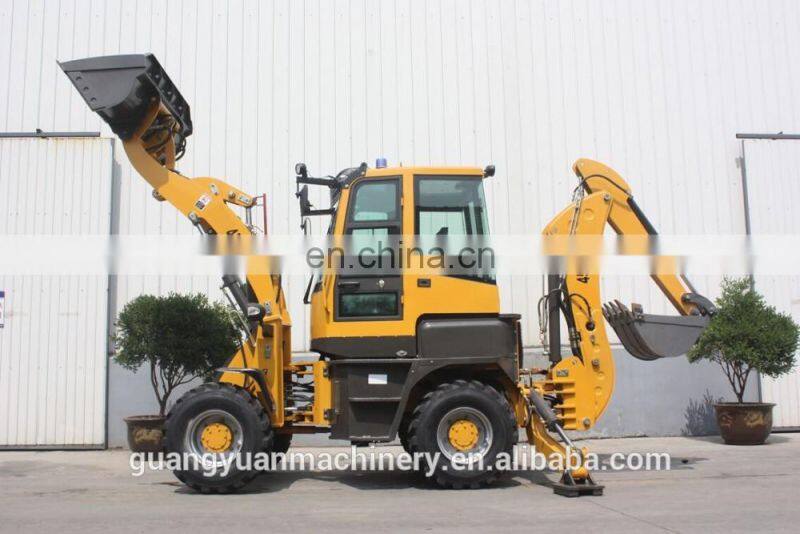

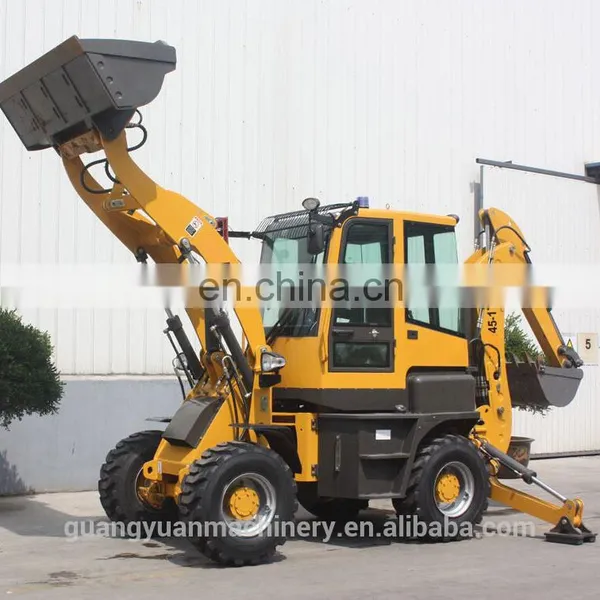

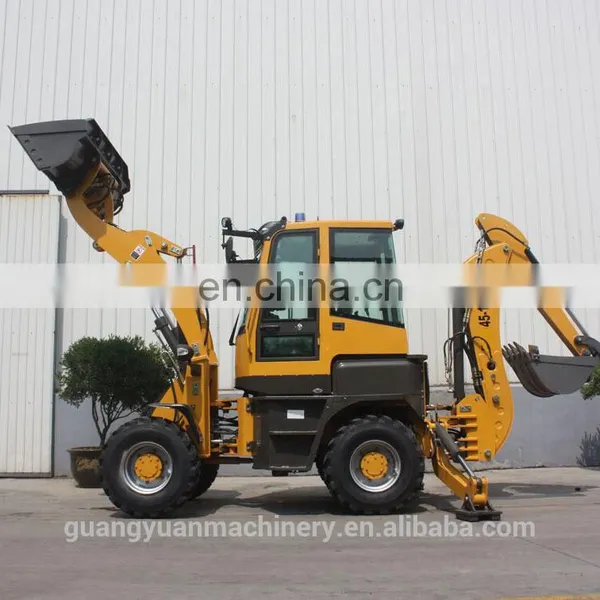

1.6T Rated loading Mini backhoe loader 45-17
Item |
Unit |
Parameter |
|
Total Length |
mm |
5100 |
|
Total Height |
mm |
2900 |
|
Total Width |
mm |
1960 |
|
Total Operating Weight |
kg |
4900 |
|
Backhoe Parameter |
Rated Backhoe Bucket Capacity |
m3 |
0.3 |
|
Max. Digging Depth |
mm |
3400 |
|
Max. Digging Height |
mm |
5000 |
|
Max. Digging Radius |
mm |
4600 |
|
Turning Angle of Movable Arm |
° |
180 |
Loading Parameter |
Rise Height |
mm |
3700 |
|
Discharge Height |
mm |
2700 |
|
Min. Turning Radius |
mm |
4800 |
|
Discharge Distance |
mm |
1000 |
|
Rated Loading Weight |
kg |
1600 |
|
Rise Time of Movable Arm |
s |
3.5 |
|
Fall Time of Movable Arm |
s |
2.5 |
|
Comprehensive Time |
s |
7 |
Engine Model |
YUNNEI 490T |
||
Rated Power of Engine |
KW |
42 |
|
Engine Flux |
ml/r |
40 |
|
Work Pressure |
Mpa |
16~18 |
|
Max. Grade Ability |
% |
25 |
|
Walking Speed |
km/h |
18~28 |
|
Min. Ground Clearance |
mm |
260 |
|
Wheel Base |
mm |
2000 |
|
Tread |
mm |
1530 |
|
Tire model |
mm |
20.5-16 |
|
Quality Assurance
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
-
After-sales and Quality Warrant Contact for every purchase order.
Weifang Map Power Co., Ltd., was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.
We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors ,implements, wheel excavators, crawler excavators,backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators ,and so on.
With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada ,England, Poland, Dutch, Italy, Russia, India, Main countries of Africa, Mid-Asia, South America., etc.
We also provide one stop equipment solution to customers. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in near future.
