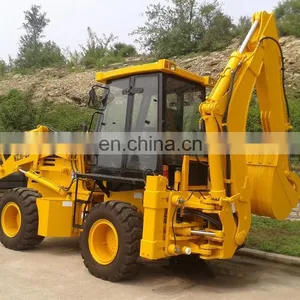

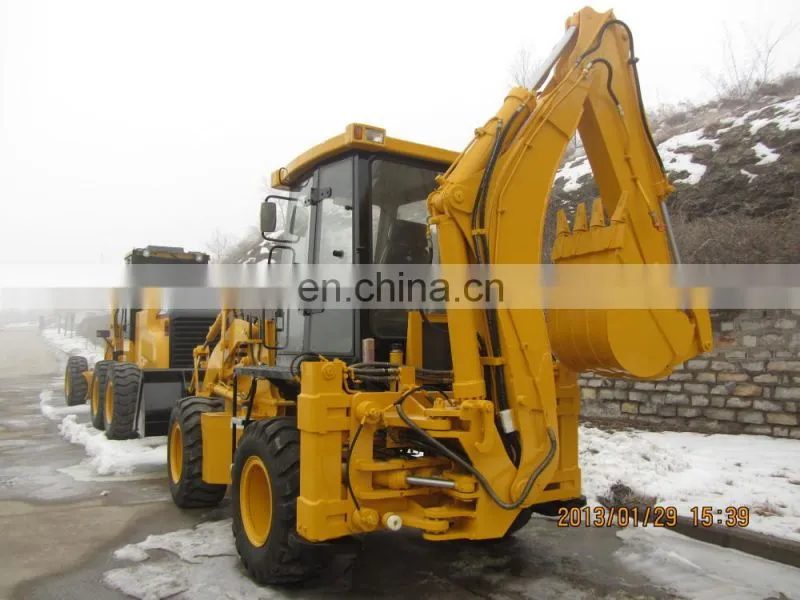

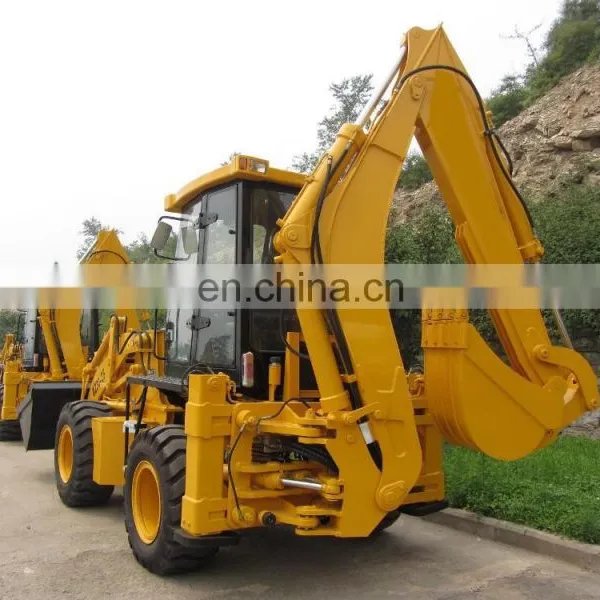

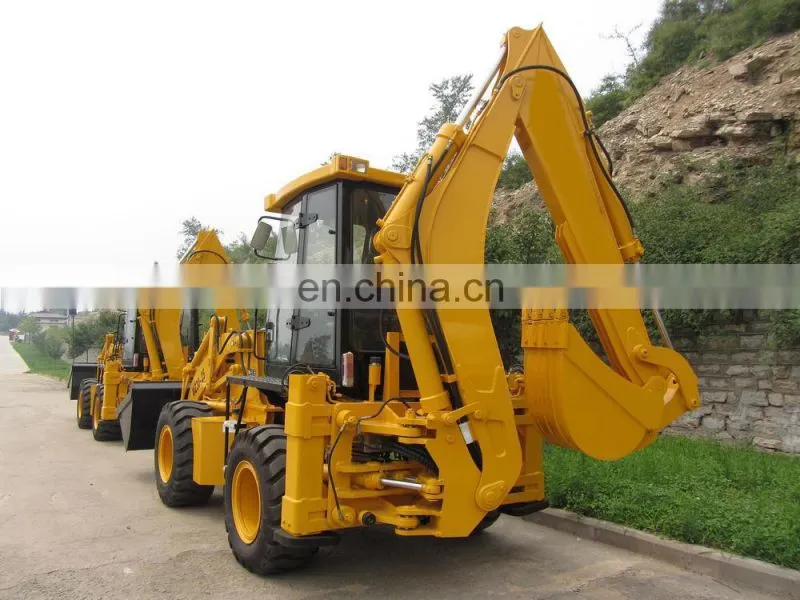

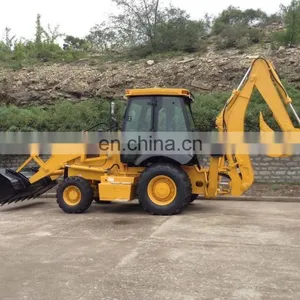

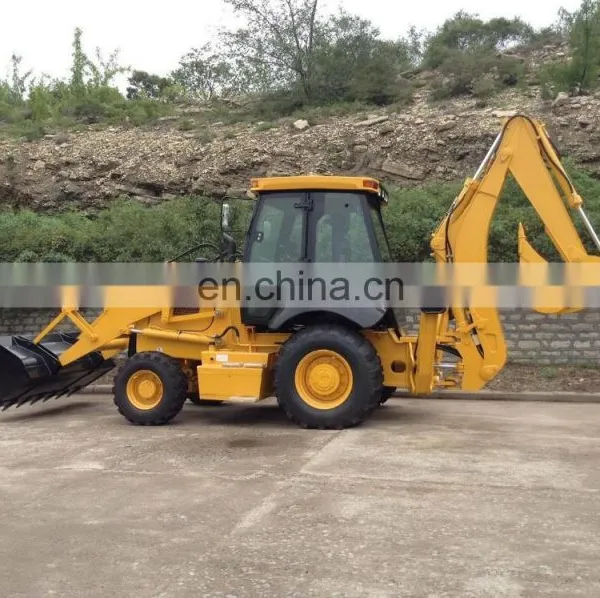

Front-end loading and back-end excavation structure WZY30-25 loader backhoe
*Chinese name " both ends is busy " .
The advanced fashion front-end loading and back-end excavation structure,
* you only need to rotate the seat to change the role from loader to the excavator.
*Applications:
It is a multi-use machine
Backhoe Loaders are mainly used for urban and rural road construction and maintenance, cable casting , power and airport projects, municipal construction, water conservancy construction, rural housing construction.etc

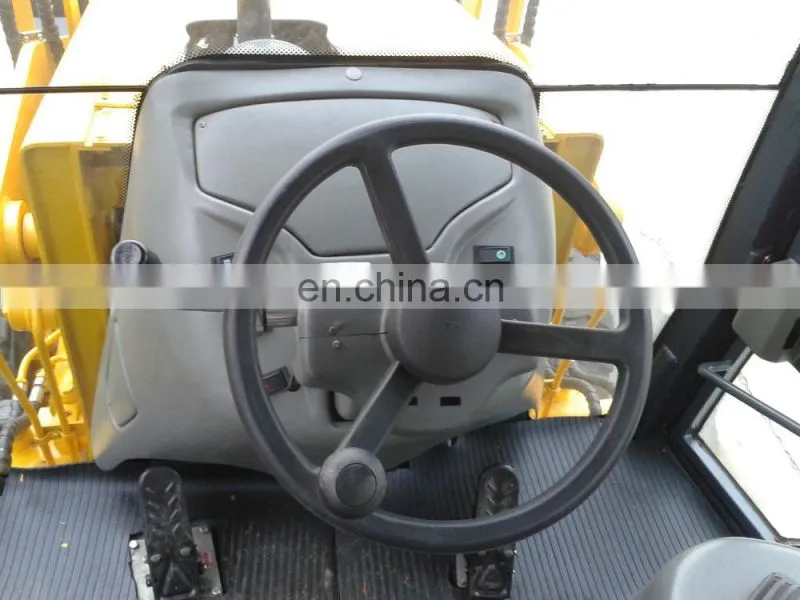

Cabin
Cab can be replaced independently, it connects with excavator frame by four damping devices, backhoe side turned to the big window structure is conducive to broadening their horizons and ventilation.
Main Specifications

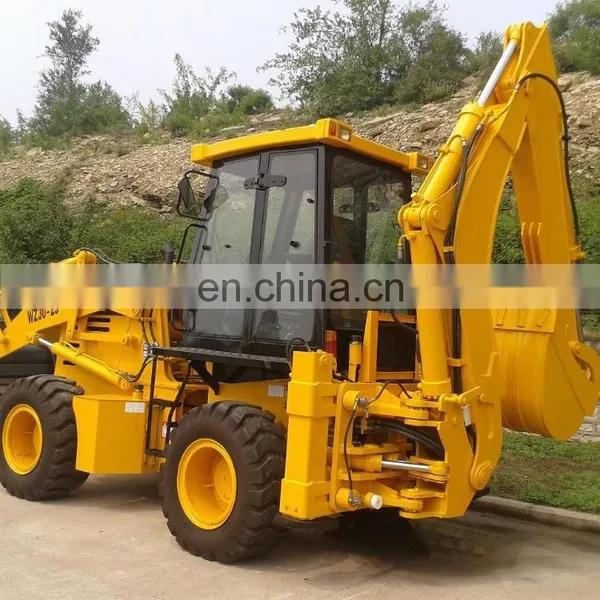

New style WZ30-25 Backhoe loader
1.Engine:R4105G
2.Rated power:55KW
3.Backhoe bucket capacity:0.3-0.4m3
1.0 DIMENSION | |
1) Rated loader bucket capacity |
1.1m3 |
2) Rated excavator bucket capacity |
0.3-0.4 m3 |
3) Operating weight |
7600KG |
4) Dimensions (L x W x H) |
5900X2340X3750mm |
5) Wheel base |
2250mm |
6) Cab roof height |
2790mm |
7) Minimum ground clearance |
310mm |
8) Bucket indicator |
Yes |
2.0 ENGINE | |
1) Engine model |
R4105G |
2) Type |
Diesel Engine(4-Cylinder engine, water cooled 105x125MM) |
3) Rated power |
55KW |
4)Total displacement |
4.33L |
5) Min fuel consumption |
239g/Km.h |
6) torque |
600N.m |
7) Rated revolving speed |
2200r/min |
3.0 TRANSMISSION SYSTEM | |
1) Model |
CBGJ2040 |
2)Type |
4 speed ,power shift, electrical controlled |
3)Torque converter type |
Single Stage or Dual Phase |
4) Max. travel speed |
25km/h |
4.0 HYDRAULIC SYSTEM | |
1) System pressure(backhoe) |
25000Kpa |
2) System pressure(loader) |
2070Kpa |
3) Flow rate of excavator system |
136L/min |
4) Flow rate of loading system |
106L/min |
5) Digging force, crowed cylinder |
36.0KN |
6) Hydraulic pump |
Gear Pump Tandem |
7) Bucket self-leveling ability |
yes |
8) Elec. clutch-cut-off switch |
yes |
9) Raising time of full height |
4.9s |
10) Bucket lowering time |
1.9s |
11)Bucket dumping time |
1.1s |
5.0 BRAKES | |
1)Service brake |
Fully sealed wet disc, free adjust type |
2) Parking Brake |
Electronic control |
Spring applied, hydraulically released | |
3) Emergency Brake |
Electric control |
Spring applied, hydraulically released | |
6.0 SERVICE REFILLING CAPACITIES | |
1) Engine Coolant |
16L |
2) Engine Oil |
8.5L |
3) Transmission |
15L |
4) Rear Axle |
16L |
5) Front Axle |
85L |
6) Model of Front Axle |
MS-2025(ZF-German) |
7) Model of Rear Axle |
MT-2075(ZF-German) |
8) Front Axle |
Mechanical front wheel drive, limited slip |
9) Rear |
with differential lock elec. Controlled |
10) Front Type |
19.5-24,8PR R4 |
11) Rear Type |
12.5/80,10PR |
7.0 STEERING SYSTEM | |
1) Type |
Power Steering |
2) Min Turning Radius |
5682mm |
