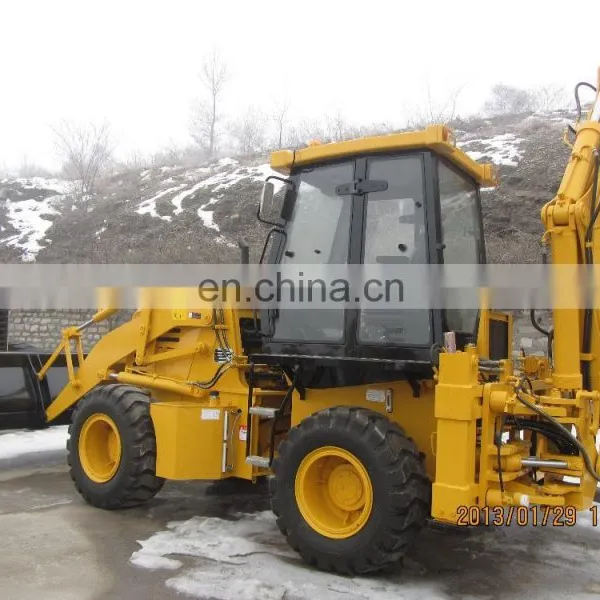

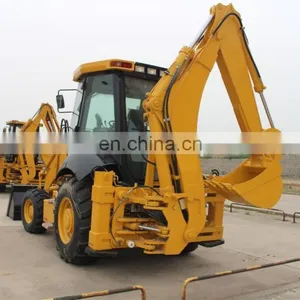

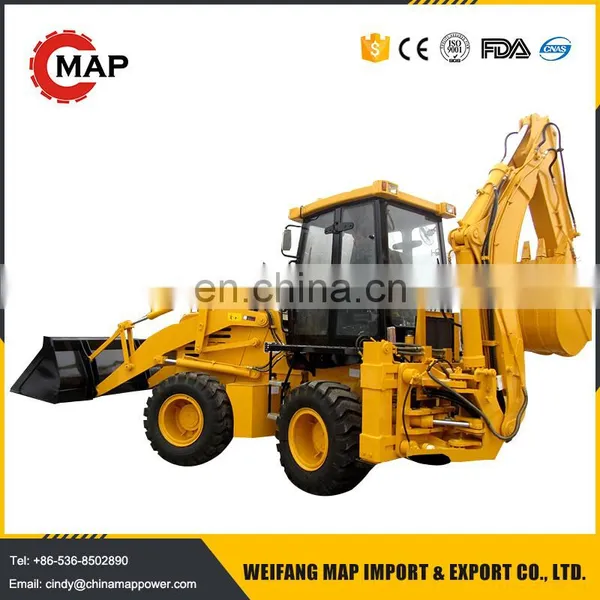

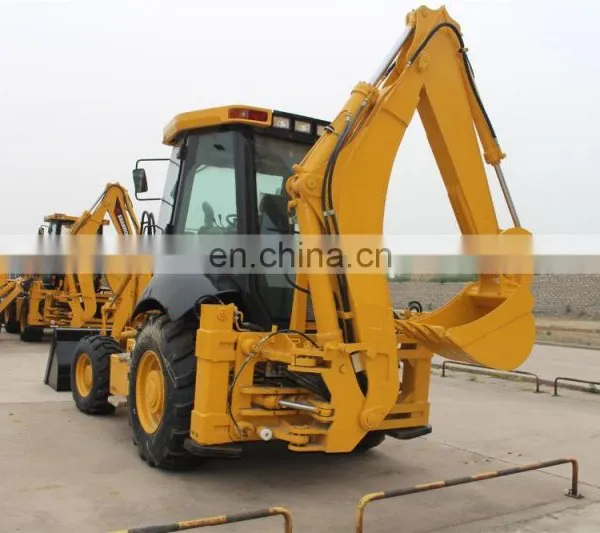

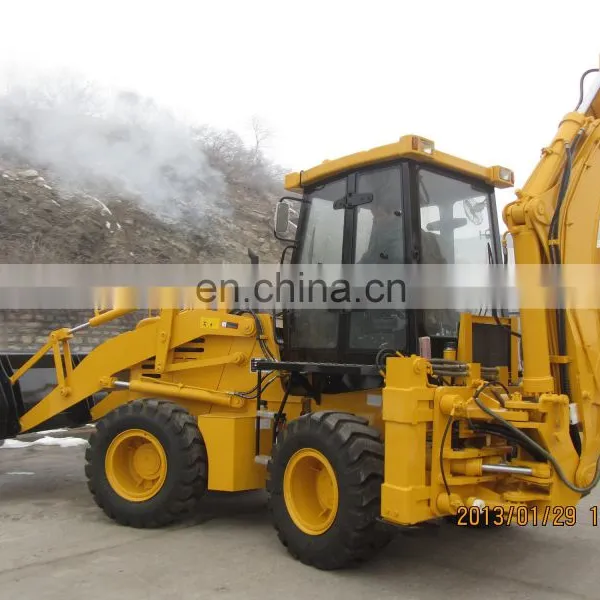

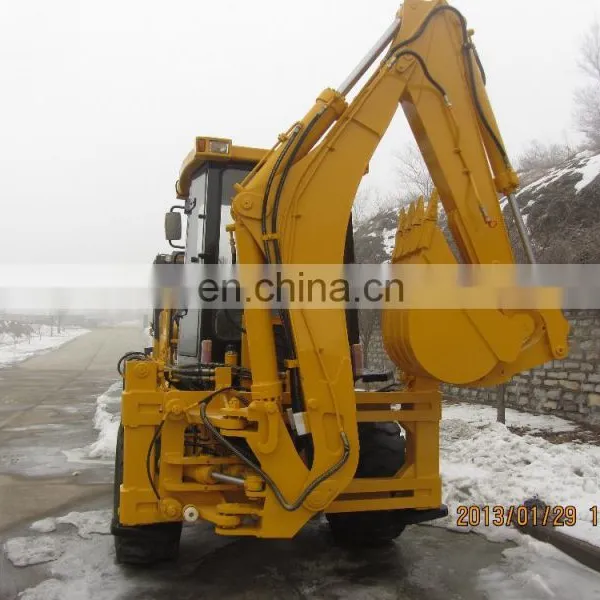

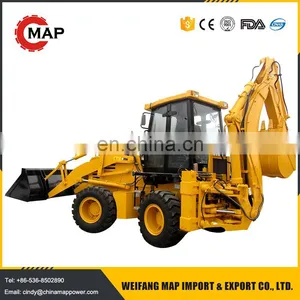

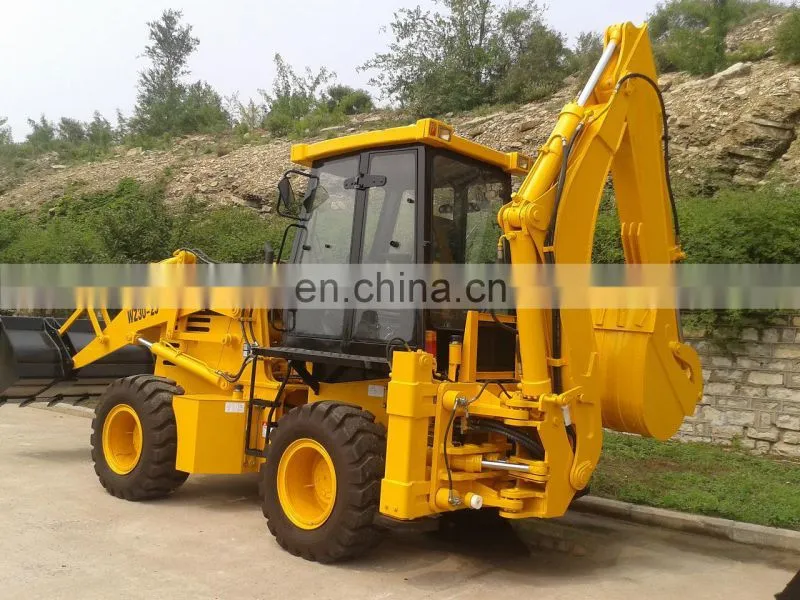

China 4wd WZ30-25 Compact CE Backhoe loader for sale
- 200 Unit / Units per Month
- Qingdao China
- T/T Credit Card
- WZ30-25 multi function construction machinery front loader and backhoe loader hot sale 2018
- High quality WZ30-25 backhoe loader for sale
- WZ30-25 quality hydraulic backhoe loader with price
- WZ30-25 Cheap Price mini backhoe loaders for sale
- 2016 new mini backhoe loader with price
- Map mini tractor backhoe loader for sale
Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Type: | Backhoe Loader |
Certification: | ce | After-sales Service Provided: | Overseas third-party support available | Warranty: | 12 months |
Condition: | New | Dimension(Long * Breadth * High): | 4600x2100x3600 | ||
Rated Load: | 1200kg |
Product Description

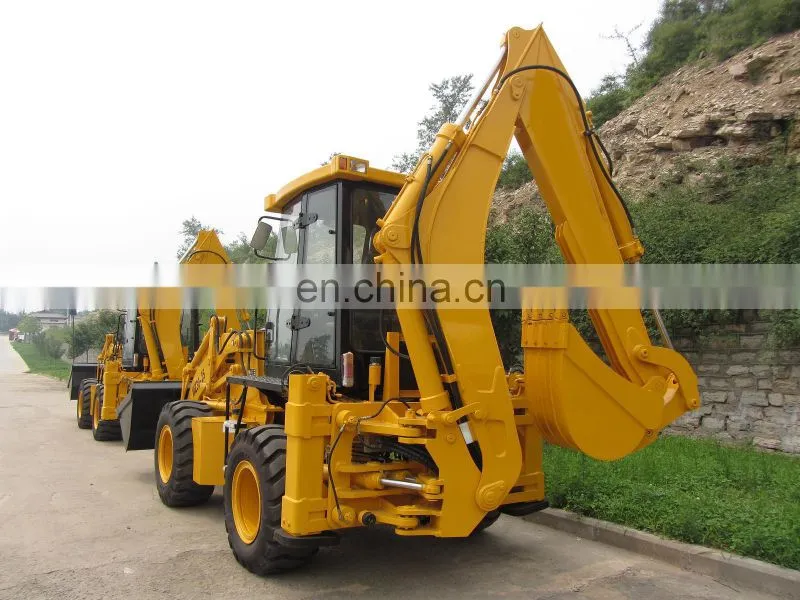

China 4wd WZ30-25 Compact CE Backhoe loader for sale
WeiFang Map Power is well-known constructional & agricultural machinery and implements exporter since 2007, and we have our own real factory- WeiFang YiShan Heavy Machinery Co., Ltd, which located in “China Machinery Town” – WeiFang city. The owners of these two companies are couplers. Our main business is as following:Wheel Loader Series, rated loading weight from 800kgs to 5T,such as:
Mini Type: D25, ZL06, ZL08, ZL10, ZL12,CS915,ZL16,
Middle-sited Type: WZ30-25, ZL20, CS920, ZL30,ZL50, ZL60, ZL70 etc.
2. Farm Tractor Series, power from 20hp to 120hp ,such as: MAP254, MAP300, MAP404, MAP504, MAP704, MAP754,MAP804,MAP954,MAP1004,MAP1204 etc.
3. Site Dupers series, rated loading weight to 1T to 10T, such as: FCY10, FCY15, FCY20, FCY30, FCY50, FCY70,FCY100 etc.
4. Wheel & Crawler-type Excavator Series, such as
Map wc-45, map wc-50, map wc-70, map wc-150
Map-18, map NT-18A, map-45, map-85, map wd120c etc.
5. Constructional equipments, backhoe loaders.
Main Technical Specification | |
1 system pressure | |
load hydraulic system | 18Mpa |
dig hydraulic system | 20Mpa |
steering hydraulic system | 12Mpa |
2 system flow | 120L /min |
3 four-wheel drive, whole hydraulic system |
|
4 total operating weight | 7600kg |
5 maximum speed | 22Km/h |
6 maximum gradient capacity | 30 ° |
1 loading bucket capacity | 1m3 |
2 rated loading | 2500KG |
3 maximum articulated height of bucket | 3400(mm) |
4 bucket discharge height | 2795(mm) |
5 bucket discharge distance | 1048(mm) |
6 loading lift capacity | 25KN |
7 bucket hydraulic translation function | yes |
8 bucket lift time | 6.8s |
9 bucket lower time | 2.5s |
10 bucket discharge time | 1.2s |
11 maximum tractive force | 39KN |
12 maximum breakout force | 38KN |
1 back acter bucket capacity | 0.3m3 |
2 backacter discharge height | 3878(mm) |
3 maximum digging depth | 4080(mm) |
4 maximum digging radius | 5688(mm) |
5 bucket slewing angle | 190 ° |
6 bucket digging capacity | 46KN |
7 bucket stick digging capacity | 31KN |
Diesel Engine | |
1 model | Dongfeng Cummins 4BTA3.9-C100 LUOTUO YTR 4108G 60-1 |
2 type | turbocharging four-stroke |
3 rated power | 74KW/100HP 55KW/74HP |
4 rated speed | 2200 r/min 24002200 r/min |
5 cylinder –internal diameter | 4—110 4-108 |
6 maximum torque | 310NM 261.7N.M/1800R/MIN |
7 minimum fuel consumption | 245g /kw.h 216 g /kw.h |
8 displacement | 4.5L 4.4L |
Transmission System | |
1 model of hydraulic pump | fixed shaft power shift transmission |
2 gear shift | 2forward shift 2 reverse shift |
3 torque | YJ-280 |
4 drive pump | CDXaf3016-IL |
5 flow | 16ml/r |
6 work pump | CBGj2063 |
7 flow | 63ml/r |
Steering System | |
1 type | articulated hydraulic steering |
2 model of steering control valve | BZZ5-250 |
3 model of turning control valve | YSF25S-00 |
4 steering angle | left or right 36 ± 1 ° |
5 minimum turning radius | 5018(mm) |
Axles | |
1 main transmission type | single reduction |
2 wheel reduction type | wheel reduction |
Wheel | |
1 tire size | 16/70-20 |
2 front wheel pressure | 0.22Mpa |
3 rear wheel pressure | 0.20Mpa |
4 service braking | air over hydraulic disc on 4 wheels |
5 parking brake | manual parking brake |
