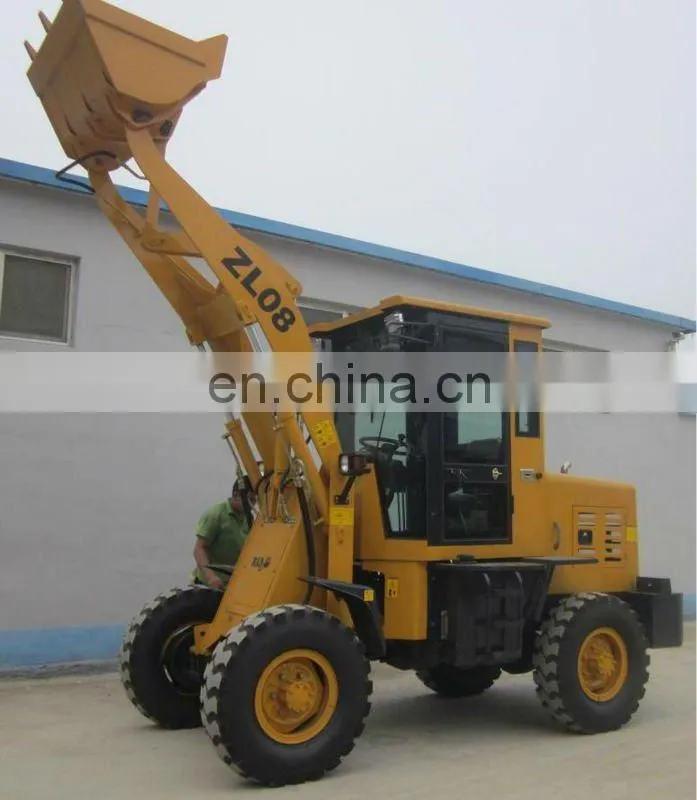

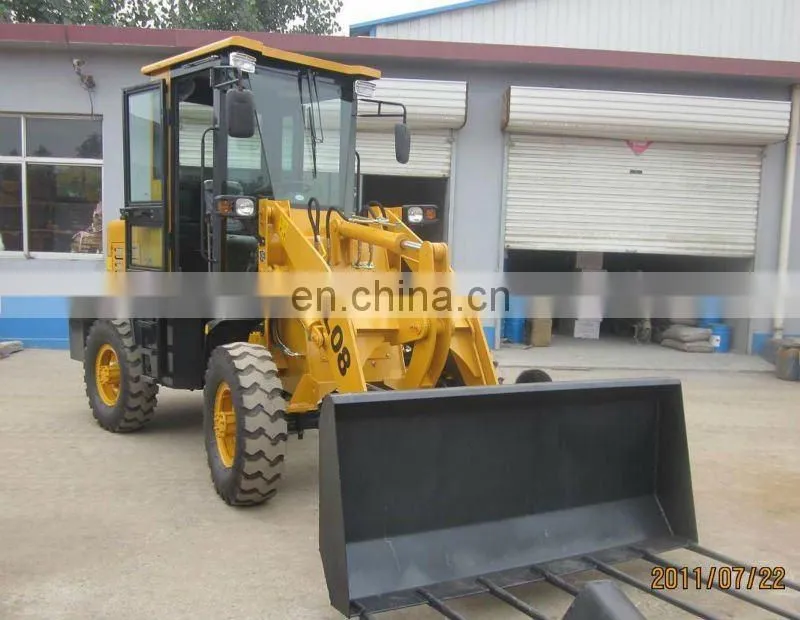

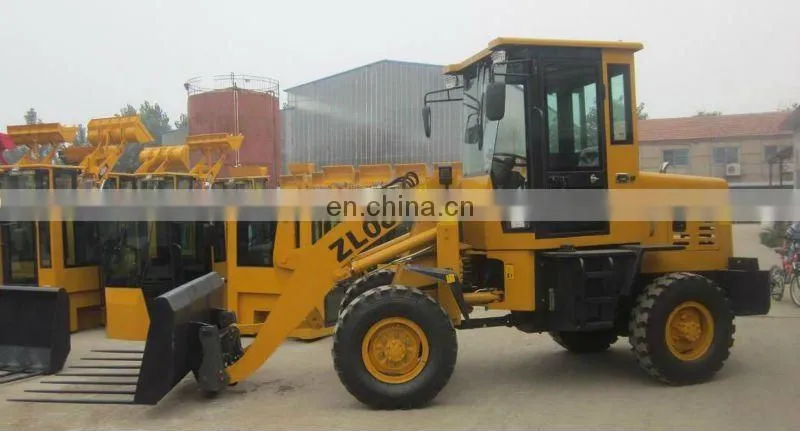

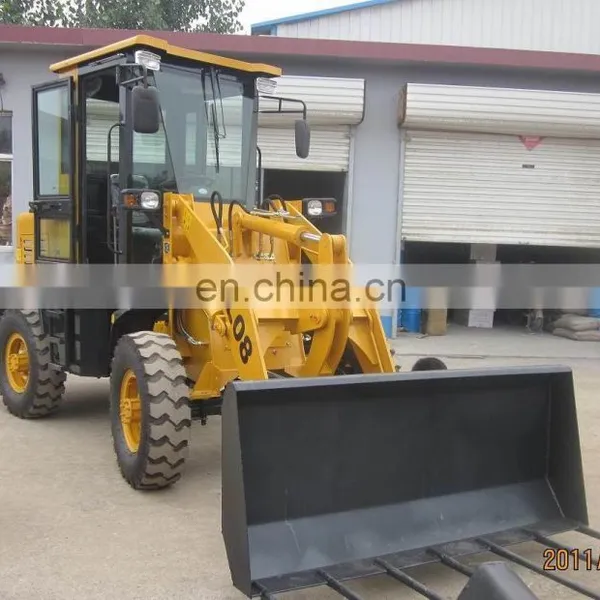

0.8ton CE shovel Wheel shovel Loader ZL08F
Weifang Map Power Co., Ltd.,is a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
Mini Wheel loader
Loader *Payload:800kg
Loader *2 cylinders engine
Loader *with different attachment
Loader *Hydraulic quick change
Multifunction Wheel Loader ZL08
Specification
Loader
Wheel loader ZL08F Specifications | ||
Engine Details |
Model |
L28 |
Engine type |
In-line arrangement, water-cooled , Single Cylinders diesel Engine |
|
Rated Power |
28HP |
|
Rated Speed |
2200 r/min |
|
Min.ful consumption |
235 g/kw.h |
|
Bucket |
Bucket Capacity |
0.40 m3 |
Bucket type |
Heavy-duty bolt on teeth |
|
Rated Loading weight |
800 kg |
|
Total Weight |
2200 kg |
|
Overall Dimensions |
Overall Length |
4050 mm |
Overall Height |
2550 mm |
|
Overall Width |
1600 mm |
|
Max. discharge height |
2300 mm |
|
Wheel base |
1580 mm |
|
Tread |
1400 mm |
|
Operating Specifications |
Steering System |
Articulated Frame with Hydraulic steering |
Min Turning Radius |
3900 mm |
|
Transmission |
Manual clutch |
|
Brake System |
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
Parking Brake |
Hand operated |
|
Tire |
8.25-16 |
|
Loader
