Home > Products > Wheel Loader > Loader Best price Wheel Loader ZL50 CE mini wheel loader
Loader Best price Wheel Loader ZL50 CE mini wheel loader
- 0 per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | Map Power | Place of Origin: | Shandong, China | Model Number: | ZL50 |
Type: | Front Loader | Certification: | CE, CE | After-sales Service Provided: | Overseas service center available |
Warranty: | 12 months | Condition: | New | Dimension(Long * Breadth * High): | 7836*3010*3300mm |
Moving Type: | Wheel Loader | Rated Load: | 5000KG/5 ton |
Product Description

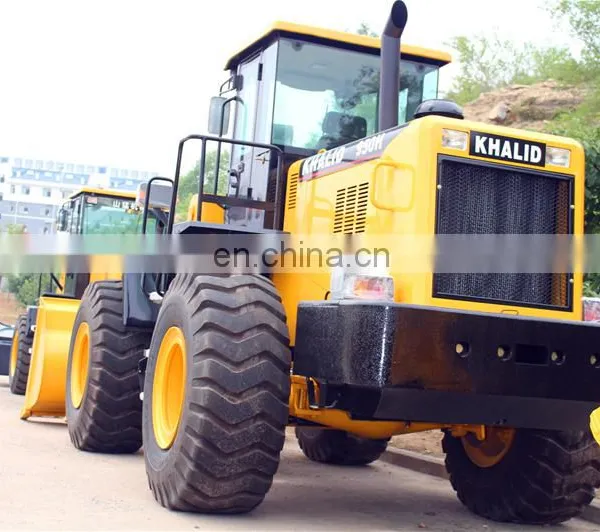

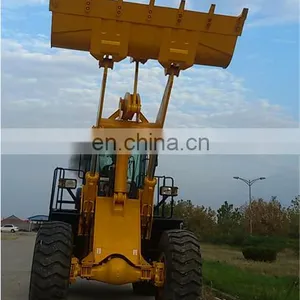

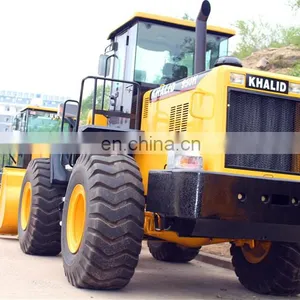

Wheel Loader ZL50
Dump truck *Rated loading weight: 5,000kg
Dump truck *Rated capacity: 3.0cbm
Dump truck *Operating weight: 17,000kg
Dump truck *Engine: WD10G220E22
Dump truck Main Specifications
Weifang Map Power Co., Ltd.,is a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
Pilot Control is an Optional
Specification | ZL50F |
Rated capacity | 3m³ |
Rated weight | 5000Kg |
Operating weight | 16000Kg |
Performance of bucket being set level | Yes |
Static tilting load at full steering position | 98KN |
Max. breakout force | 172.6KN |
Max. drawbar pull | 151.9KN |
Max. grade ability | 30° |
Total of three time:lifting,dumping, lowering | 11.3s |
Max.dump height | 3098mm |
Max.dump reach | 1198mm |
Min. ground clearance | 450mm |
Wheel base | 3200mm |
Overall dimensions(length*width*height) | 7836*3010*3300mm |
Engine | STEYR |
Model | WD10G220E22 |
Pattern | Inline, water cooled, direct. inject, four strokes |
Cylinder-bore*stroke | 6-126*130 |
Max.torsion | 779Nm |
Rated power | 162KW |
Min.fuel consuming rate | 214g/kw.h |
Specified rotational speed | 2200r/min |
Model of torque device | YJ375 |
Pattern | 3-element,single stage |
Number of great shift | 4 forward,4 revers |
Max. travel speed | 38km/h |
Main reducer type | Spiral bevel gear, moderation of first stage |
Pattern of wheel side moderation | Single stage planetary |
Type size | 23.5-25 |
Front type pressure | 392KPa |
Rear type pressure | 343KPa |
Pattern | Articulated and hydraulic steering, load sensing meets |
Steering angle(each direction) | 35°C±1 |
Min. turning radius(outside of bucket) | 7268mm |
Valve distributing working | DF32·2C |
Working pumps | CBG3100 |
Brake system | Air assisted oil type four wheel brake |
Parking brake | Air cutting control inner expand hoof |
Fuel capacity | 320L |
Pressure of working hydraulic system | 160kfg/cm2 |

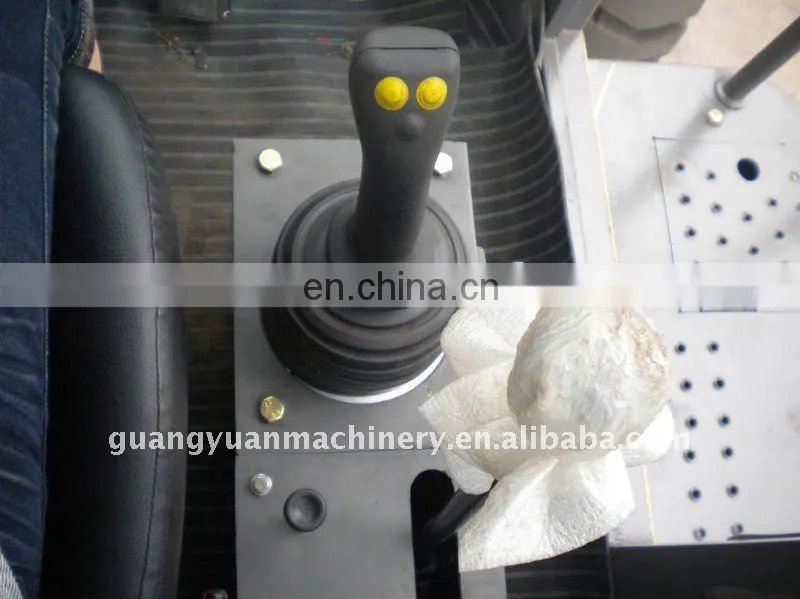

Pilot Control
