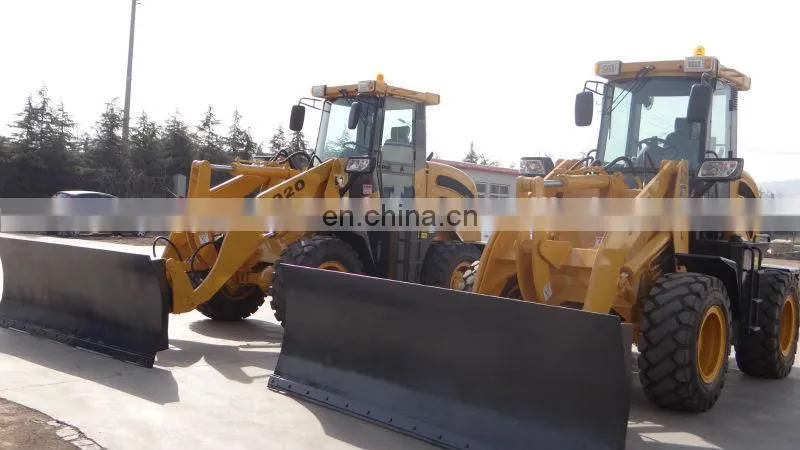

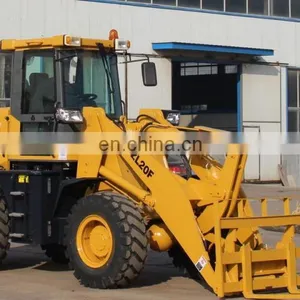

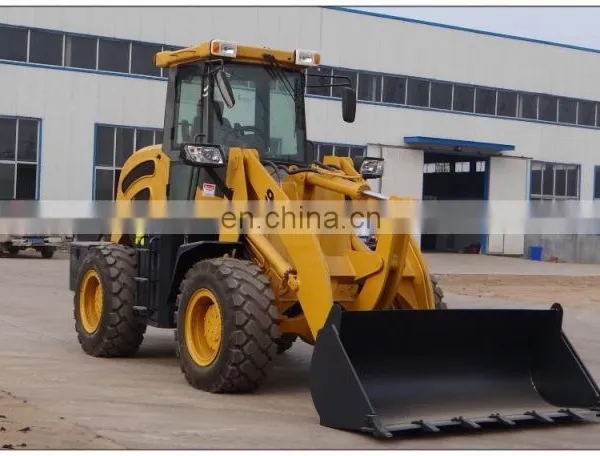

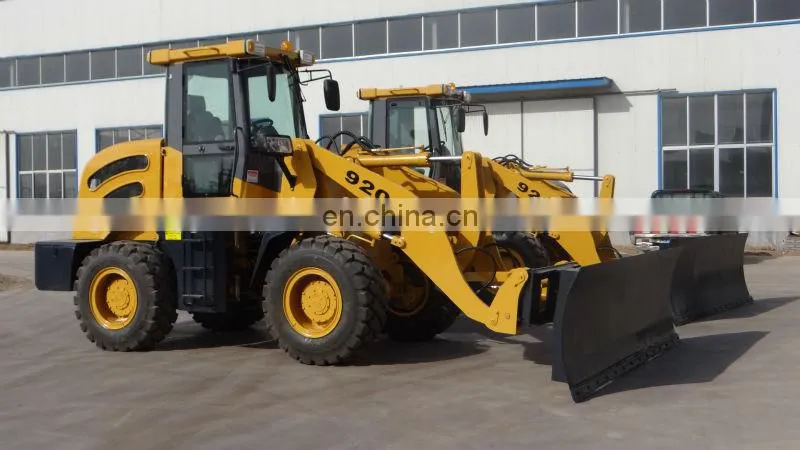

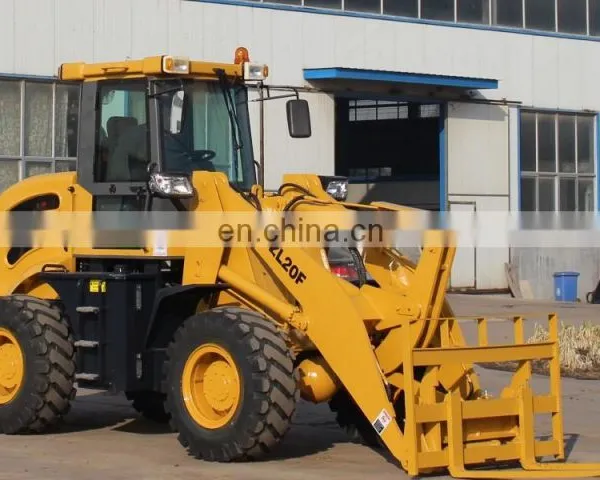

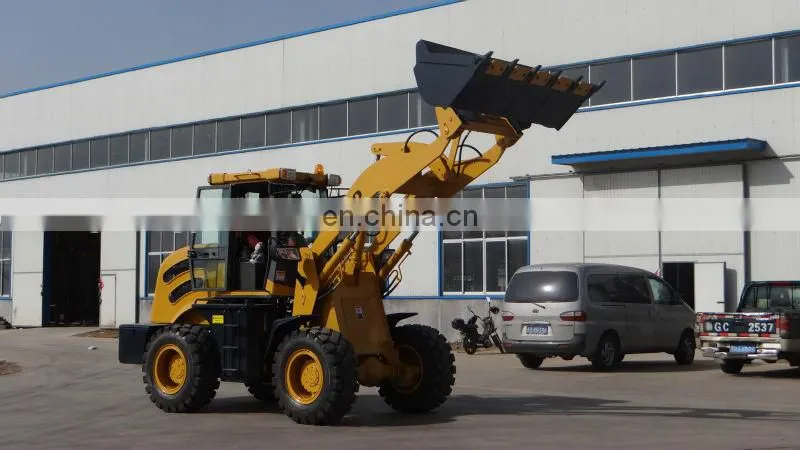

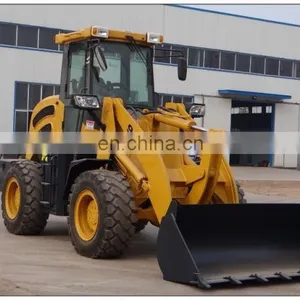

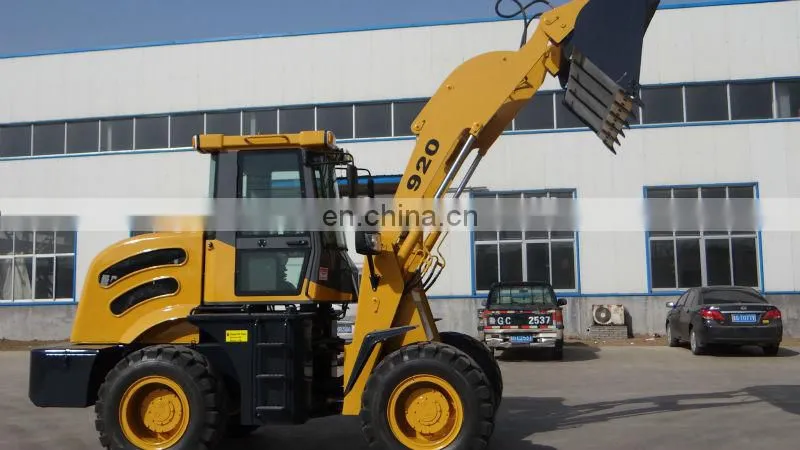

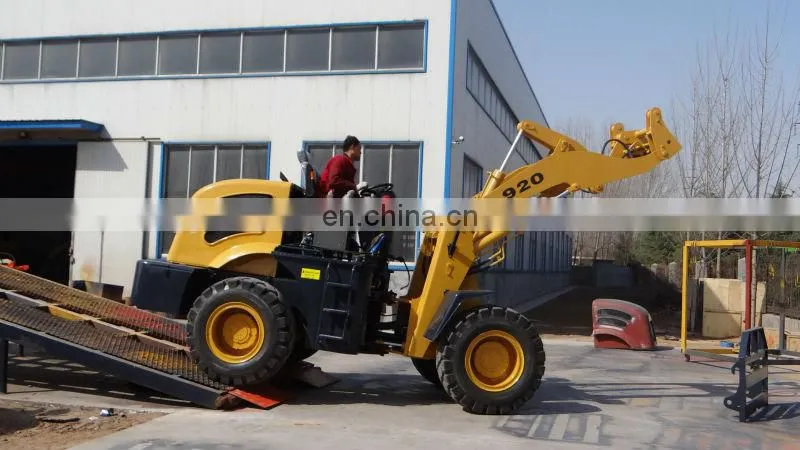

Help CenterBest Price 2 T RC Loader ZL20F With Joystick and Quick Hitch for Sale
Related Products
-
Mini Wheel Loader ZL20 With 4 in 1 Bucket and V-blade,snow Blower Mini Shovel Wheel LoaderUS$ 1 - 2MOQ: 1 Unit -
2013 Best Seller 6 Ton Wheel Loader ZL60 Wheel Shovel LoaderUS$ 10,000 - 20,000MOQ: 1 Unit
-
China ZL20 White Colour Wheel Shovel Loader With 4 in 1 Bucket and V-blade,US$ 13,935 - 14,427MOQ: 1 Unit
-
CE Approved Mini Hydraulic Shovel Loader ZL16US$ 11,500 - 14,500MOQ: 1 Unit
-
China Supplier Mini 1ton ZL10 Cheap Front Shovel Wheel LoaderUS$ 6,150 - 7,935MOQ: 1 Unit
Real Factory Supplies Mini Wheel Loader Series, Customer Design is Welcome and Available.
Main Descriptions for Mini Wheel Loader Series
- The most economic and practical mini wheel loader, excellent cost performance.
- Antirust paint with all color, streamlined appearance, beautiful and elegant, and can attach different tools such as: wooden fork, pipe fork, grass fork, stone bucket, and to realize multifunction.
- Bucket that can be set level automatically, "Z" type turning bucket structure, to realize the enormous shovel digging forces.

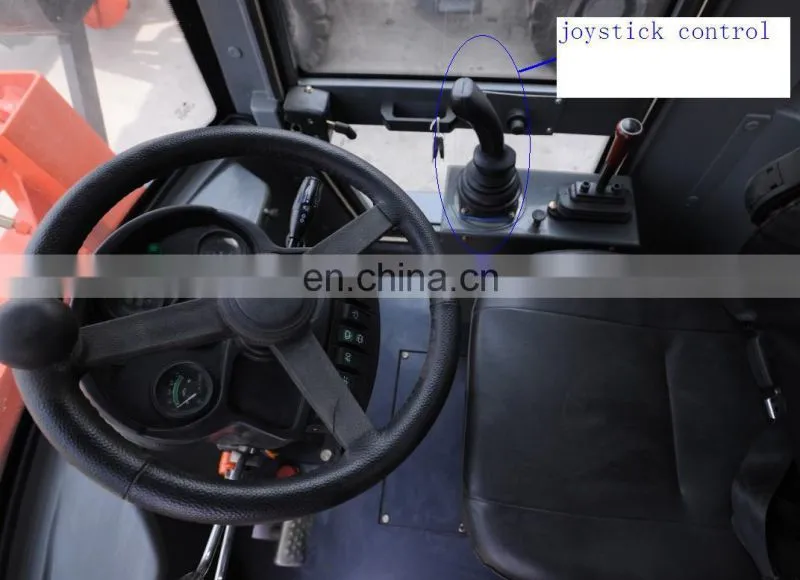

- Fully hydraulic steering system, 4 x 4 wheeled drive. Hydraulic Joystick optional, makes flexibility, smooth, and comfortable operation.
- Central articulated frame and load sensing hydraulic steering gear, short turning radius, so it has sound off-road performance, good traffic ability and larger traction.

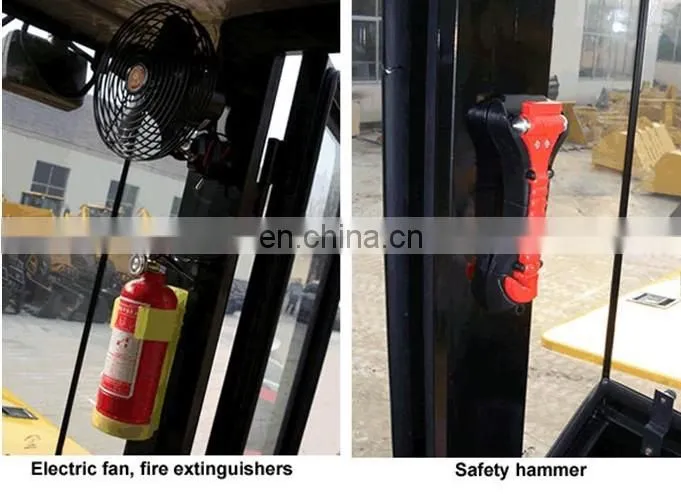

- A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.
Overall Dimension | ||
1 |
Leng th(with bucket on ground) |
5850(mm) |
2. |
Width(to outside of wheels) |
2050(mm) |
3 |
Height(To the top of the cab) |
2860(mm) |
4 |
Wheel base |
2400(mm) |
5 |
Tread |
1640(mm) |
6 |
Min. ground clearance |
310(mm) |
Main Technical Specification | ||
1 |
Rated load |
2000(Kg) |
2 |
Operating weight |
5800KG |
3 |
Rated bucket capacity |
1.2(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
51kN |
6 |
Max. dump clearance |
2950(mm) |
7 |
Min. turning radius |
5251mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
YTO 4108/WeiChai 4105 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
60(kW)/58KW |
4 |
Inter-bore of cylinder/stroke |
105×125mm |
5 |
Rated speed |
2400(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
235(g/Kw.h) |
Transmission System | ||
(A)Torque Converter | ||
1 |
Model |
YJ280 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
(B)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
20.5/70-16,16.70-20 for optional |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
Quality Assurance
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
-
After-sales and Quality Warrant Contact for every purchase order.Company Information
WeiFang Map Power is well-known constructional & agricultural machinery and implements exporter since 2007, and we have our own real factory- WeiFang YiShan Heavy Machinery Co., Ltd, which located in “China Machinery Town” – WeiFang city. The owners of these two companies are couplers. Our main business is as following:
Wheel Loader Series, such as:Mini Type: D25, ZL06, ZL08, ZL10, ZL12,CS915,ZL16,Middle-sited Type: ZL20, CS920, ZL30,ZL50, ZL60, ZL70 etc.
Farm Tractor Series, such as: MAP254, MAP300, MAP404, MAP504, MAP704, MAP754 etc.
Site Dupers series, such as: FCY10, FCY15, FCY20, FCY30, FCY50, FCY70 etc.
Constructional equipments, farm tools and consumable parts of all kinds.
With the experience in professional manufacturing and international trade, Map Power has successfully expanded our business to about 30 countries including Canada, America, Russia, Australia and west Europe and Mid-Asia etc.
Hope to have a long and good cooperation with you.
