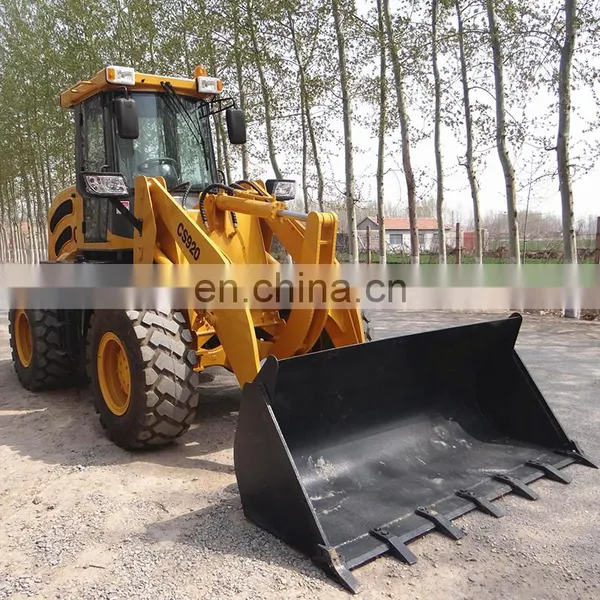

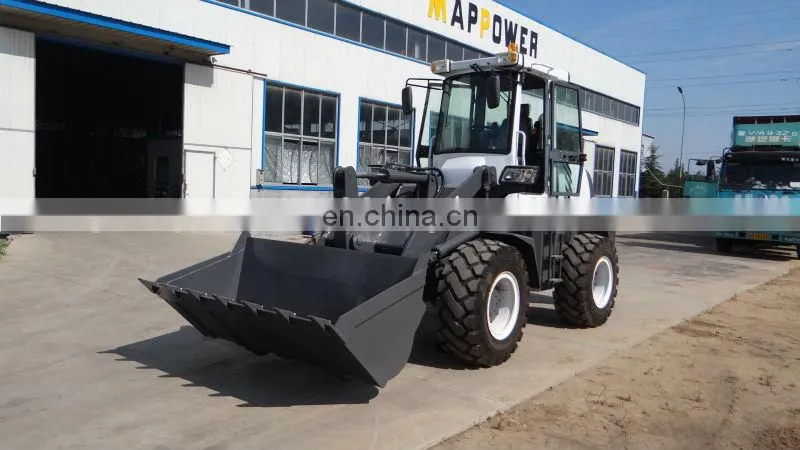

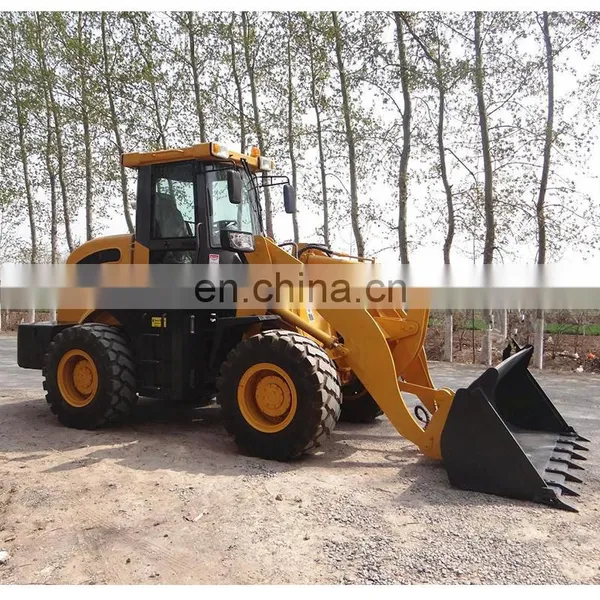

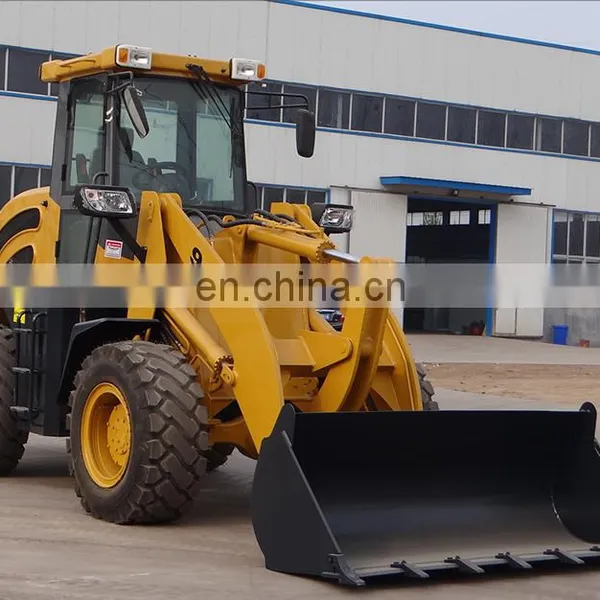

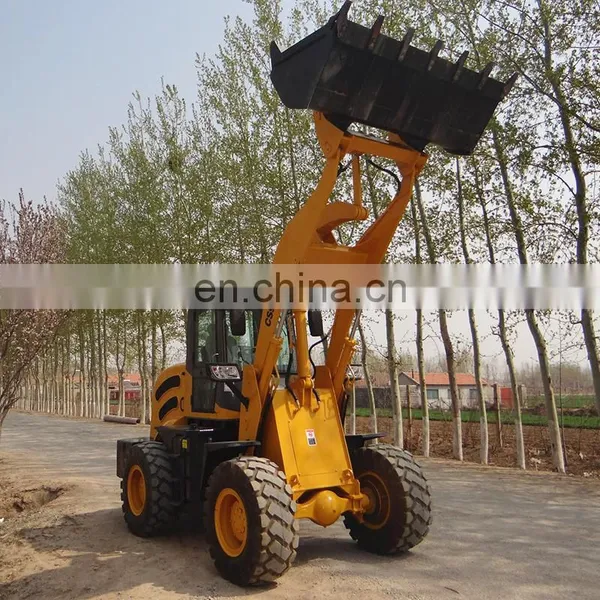

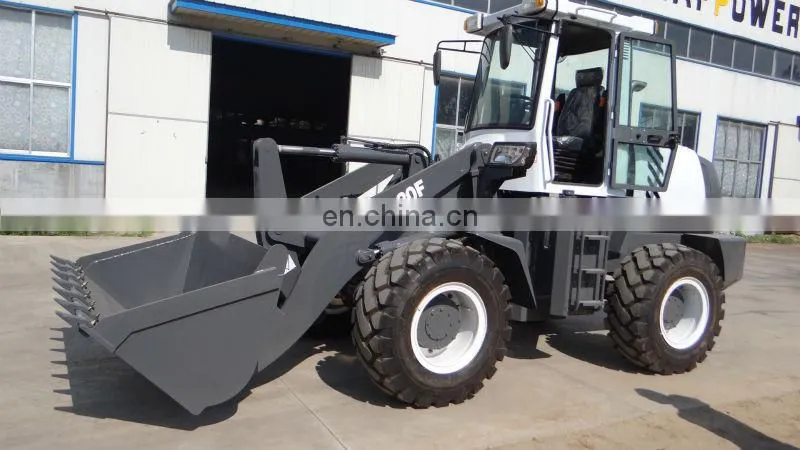

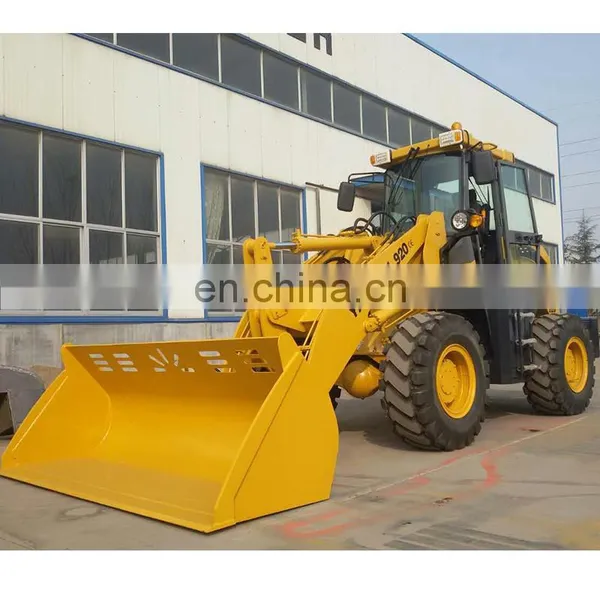

Help CenterChina ZL20 White Colour Wheel Shovel Loader With 4 in 1 Bucket and V-blade,
Related Products
-
CE Approved Mini Hydraulic Shovel Loader ZL16US$ 11,500 - 14,500MOQ: 1 Unit -
China Supplier Mini 1ton ZL10 Cheap Front Shovel Wheel LoaderUS$ 6,150 - 7,935MOQ: 1 Unit
-
CE Wheel Loader 1.0ton ZL10 Loader With 4 in 1 Bucket,snow Blade Mini Front LoaderUS$ 6,886 - 8,935MOQ: 1 Unit
-
Right Choice 1.6Ton International Quick Hitch Wheel LoaderUS$ 8,200 - 11,000MOQ: 1 Unit
-
ZL15 1.5 Ton Mini Front 4 Wheeled Chinese Wheel Loader for Sale!US$ 10,000 - 12,000MOQ: 1 Unit
hitch
shovel Loader
Weifang Map Power Co., Ltd.,is a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
If you have demand please let me know, I will offer best price for you.
Overall Dimension | ||
1 |
Length(with bucket on ground) |
5850(mm) |
2. |
Width(to outside of wheels) |
2050(mm) |
3 |
Height(To the top of the cab) |
2860(mm) |
4 |
Wheel base |
2400(mm) |
5 |
Tread |
1640(mm) |
6 |
Min. ground clearance |
310(mm) |
Main Technical Specification | ||
1 |
Rated load |
2000(Kg) |
2 |
Operating weight |
5800KG |
3 |
Rated bucket capacity |
1.2(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
51kN |
6 |
Max. dump clearance |
2950(mm) |
7 |
Min. turning radius |
5251mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
YTO 4108/WeiChai 4105 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
60(kW)/58KW |
4 |
Inter-bore of cylinder/stroke |
105×125mm |
5 |
Rated speed |
2400(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
235(g/Kw.h) |
Transmission System | ||
(A)Torque Converter | ||
1 |
Model |
YJ280 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
(B)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
20.5/70-16,16.70-20 for optional |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
