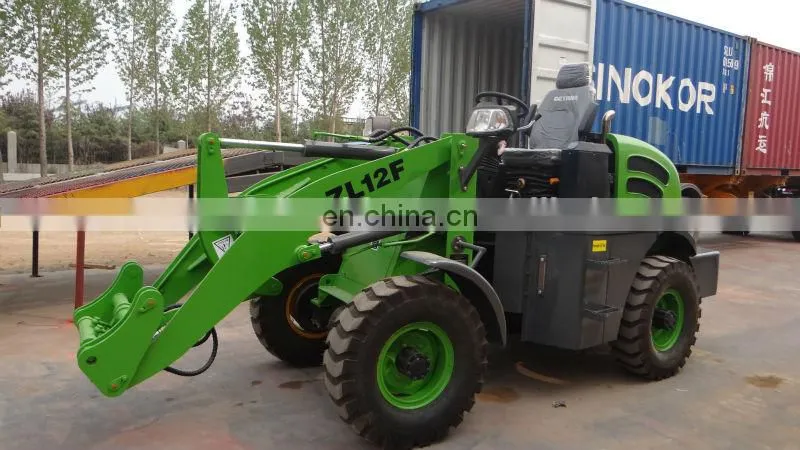

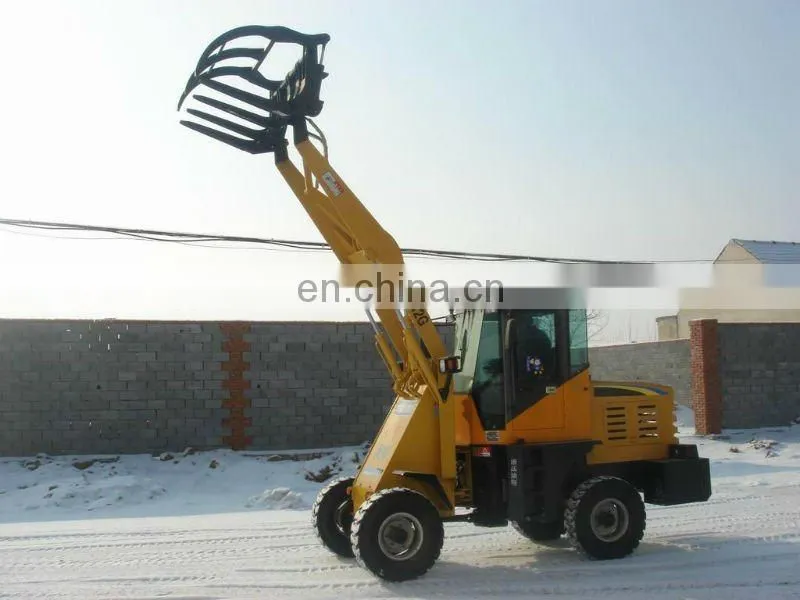

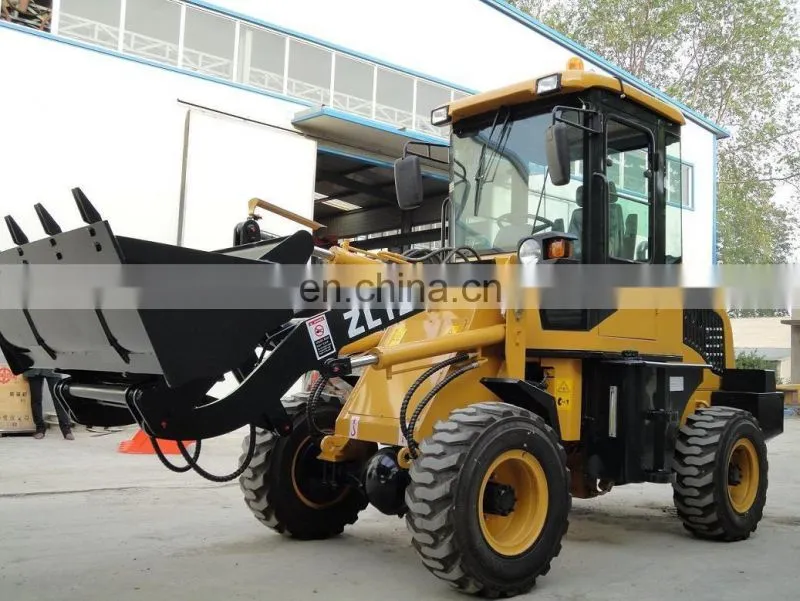

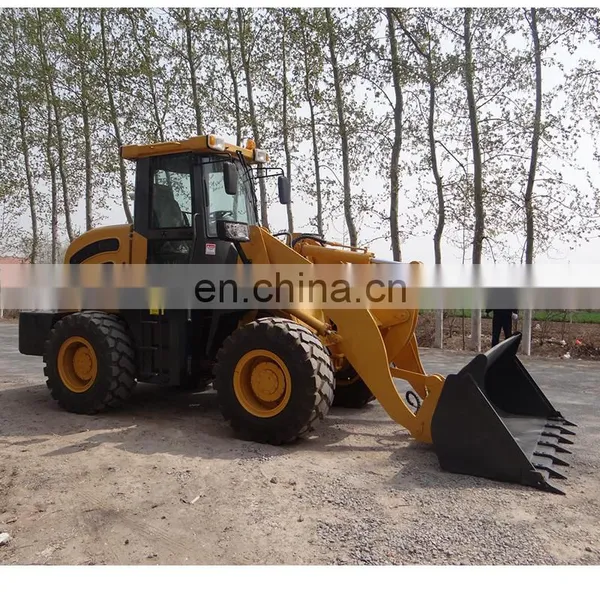

ZL12 small Sugar cane Loaders
Real Factory Directly Supplies Mini Wheel Loader Series, Customer Design is Welcome and available. More Loader Tools are in Hot Sale, too!
Overall Dimension | ||
1 |
Length(with bucket on ground) |
4800(mm) |
2. |
Width(to outside of wheels) |
1730(mm) |
3 |
Bucket width |
1700(mm) |
4 |
Height(To the top of the cab) |
2720(mm) |
5 |
Wheel base |
2060(mm) |
6 |
Tread |
1400(mm) |
7 |
Min. ground clearance |
210(mm) |
Main Technical Specification | ||
1 |
Rated load |
1200(Kg) |
2 |
Operating weight |
3100KG |
3 |
Rated bucket capacity |
0.50(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
36kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
4500mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
Diesel engine | ||
1 |
Model |
Changchai 4L68 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
37 (kW) |
4 |
Inter-bore of cylinder/stroke |
95 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. fuel consumption |
230(g/Kw.h) |
9 |
Net weight |
240(kg) |
Transmission System | ||
(A)Torque Converter | ||
1 |
Model |
YJ240 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
(B)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
1100-16(12-16.5 for optional) |
Brake system | ||
1 |
Service brake |
4 wheel hydraulic brake |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
Quality Assurance
1. Have established and implemented a standard procedure for quality management system and product certification.
2. QA/QC inspectors work independently form the production lines
3. Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
4. A procedure to conducting random inspection after final packaging.
5. A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
6. Tool case and partly consumable accessories attached with shipment meanwhile
7. After-sales and Quality Warrant Contact for every purchase order.
Company Profile
WeiFang Map Power is well-known constructional & agricultural machinery and implements exporter since 2007, and we have our own real factory- WeiFang YiShan Heavy Machinery Co., Ltd, which located in “China Machinery Town” – WeiFang city. The owners of these two companies are couplers.
With the experience in professional manufacturing and international trade, Map Power has successfully expanded our business to about 30 countries including Canada, America, Russia, Australia and west Europe and Mid-Asia etc.
Hope to have a long and good cooperation with you.
