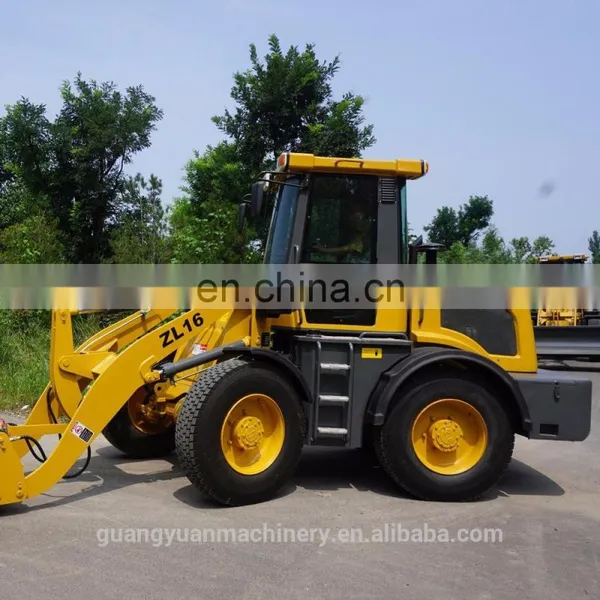

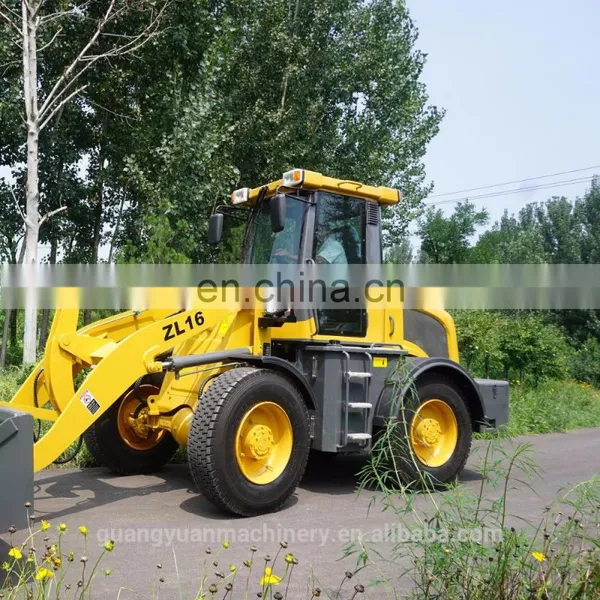

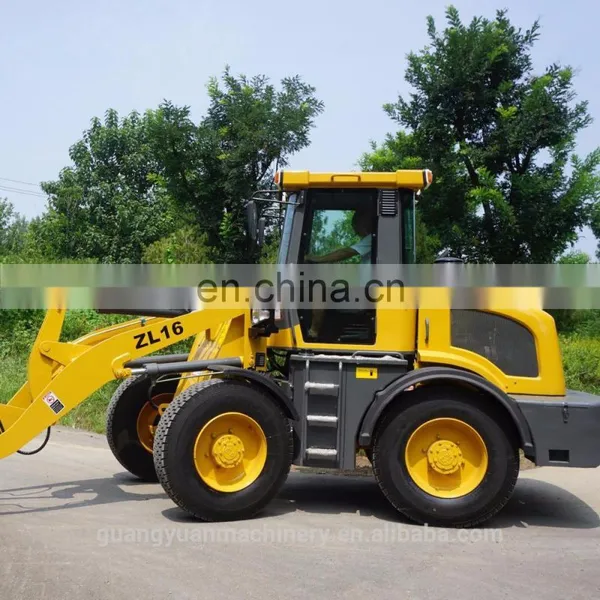

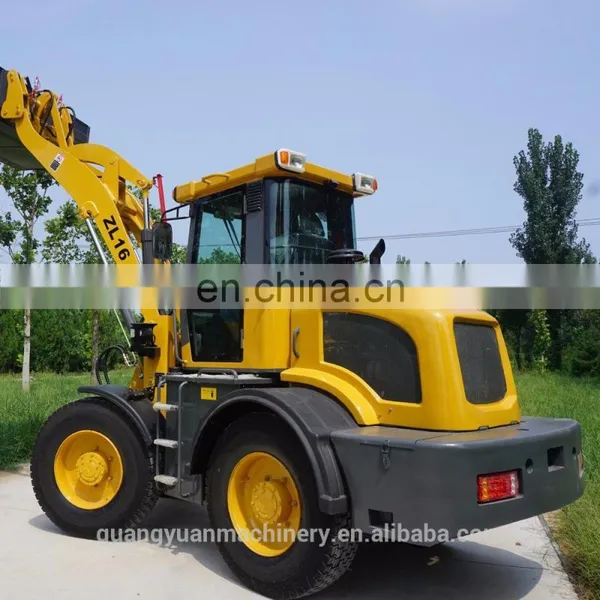

Compact Mini Wheel Loader ZL16F
US$ 10,492 - 10,820
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Model Number:
ZL16
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZL10F Wheel Loader Manufacturer CE,8 Years 1 TonUS$ 6,500 - 8,200MOQ: 1 Unit -
3000kg/1.5-2.0m3+4DW81-37 Engine Front Wheel LoaderUS$ 22,990 - 24,919MOQ: 1 Unit
-
China Weifang Map Wheel Loader With Weichai EngineUS$ 22,990 - 24,919MOQ: 1 Unit
-
6 Ton Cheap 968 Wheel Loader Farm With CE CertificateUS$ 52,000 - 62,296MOQ: 1 Unit
-
Wheel Loader Moving Type and New Condition Wheel LoaderUS$ 4,000 - 6,000MOQ: 1 Unit
Brand Name
Map Power
Place of Origin
Shandong, China
Model Number
ZL16
Type
Mini Loader
Certification
CE, CE
After-sales Service Provided
Overseas service center available
Warranty
one year
Condition
New
Dimension(Long * Breadth * High)
5500X1910X2700
Moving Type
Wheel Loader
Rated Load
1600KG/1.6Ton

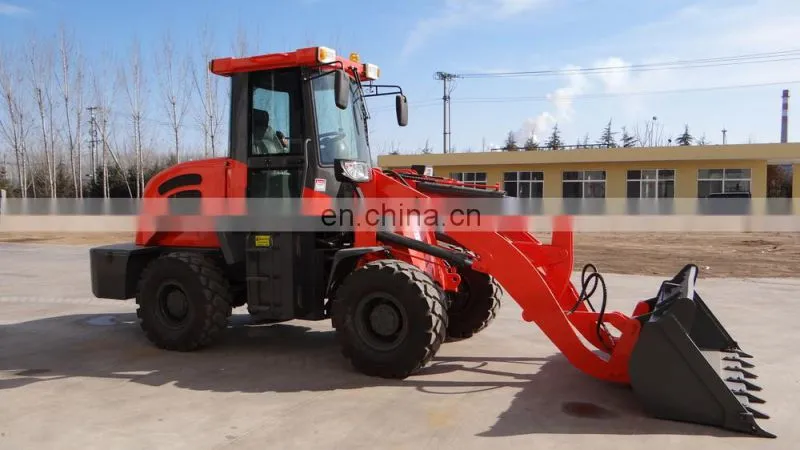

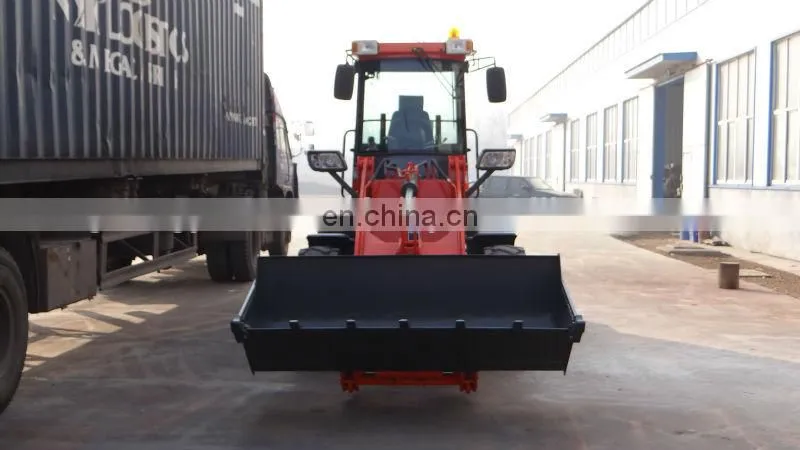

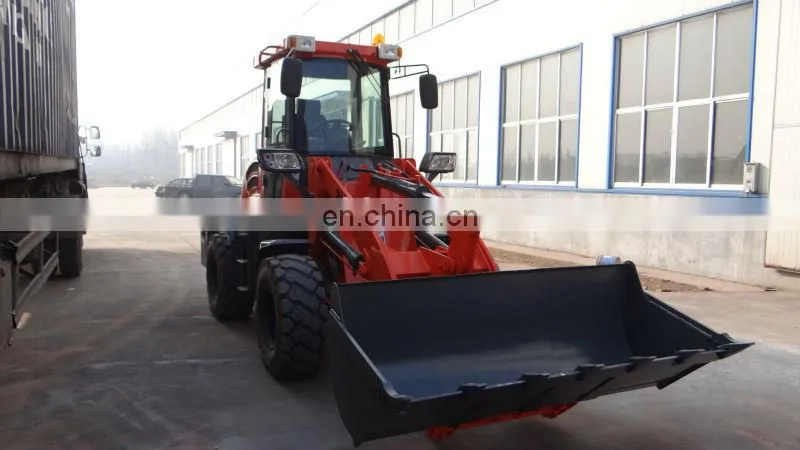

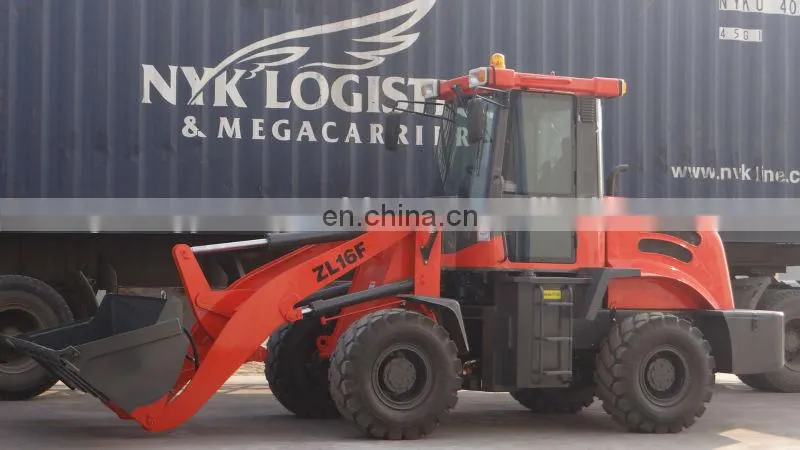

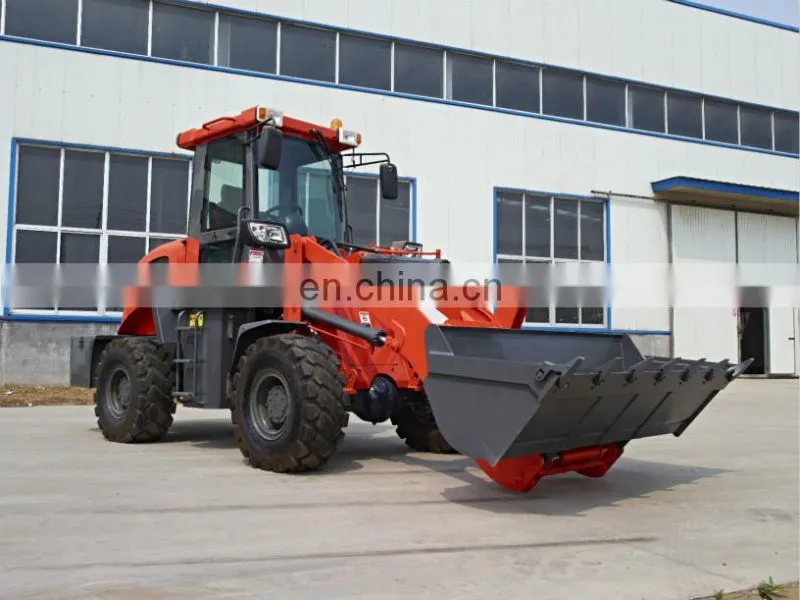

compact mini wheel loader ZL16F
Real Factory Supplies Directly Mini Wheel Loader Series, Customer Design is Welcome and Available.
Main Descriptions for Mini Wheel Loader Series
- Streamlined appearance, beautiful and elegant, and can attach different tools such as: coal bucket, pipe fork, grass fork, stone bucket… to realize multifunction. Wildly used building site, coal mines, brickyard, stone materials factory, urban construction and so on.
- Bucket that can be set level automatically, "Z" type turning bucket structure, to realize the enormous shovel digging forces.
- Dual pump meeting hydraulic system can economize on oil 10%,
- Central articulated frame and load sensing hydraulic steering gear, short turning radius and flexible turning, can work in narrow site and has sound off-road performance, good traffic ability and larger traction.
- Cabin made by double-layer1.4mm steel plate with strong steel frames inside.
- A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.
| Wheel loader model | ZL16F | |
| Engine Details | Model | Weichaihuafeng 4102 |
| Engine Type | In-line arrangement, Water cooled,4 cycle diesel engine | |
| Rated Power | 47kw | |
| Rated Speed | 2200rpm | |
| Buchet | Bucket Capacity | 0.8m³ |
| Bucket Type | Heavy-duty bolt on teeth | |
| Max.Breakout Force | 32KN | |
| Rated Load Weight | 1600kg | |
| Operating Weight | 3800kg | |
| Overall Dimensions | Overall Length | 5500mm |
| Overall Height | 2700mm | |
| Overall Width | 1650mm | |
| Max. Discharge Height | 2750mm | |
| Wheel Base | 2095mm | |
| Tread | 1360mm | |
|
Operating Specification |
Steering system |
Articulated Frame with Hydraulic steering |
| Min. Turning Radius | 3800mm | |
| Transmission | Hydraulic convertor | |
| Brake System | Service Brake |
Four wheel Hydraulic spread-shoed brake |
| Parking Brake | Hand Operated | |
| Tyre | 14.90-16 | |
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
- After-sales and Quality Warrant Contact for every purchase order.
