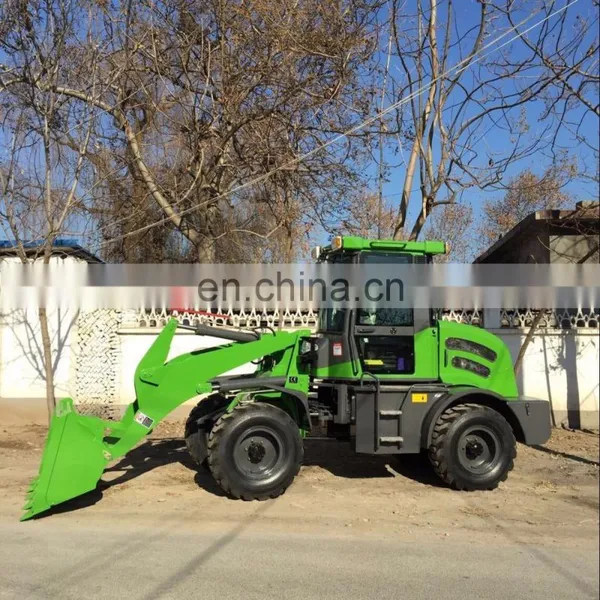

Help CenterLook Here~Cheap 1 Ton ZL10F Mini Wheel Loader With CE
Related Products
-
Hydraulic 4WD Boom Backhoe Loader ZL16DUS$ 9,000 - 10,000MOQ: 1 Unit -
Hydraulic 4WD Boom Backhoe Loader ZL16BUS$ 9,000 - 10,000MOQ: 1 Unit
-
1.6Ton Mini Loader Machine for ExportUS$ 9,000 - 10,000MOQ: 1 Unit
-
6 Ton Cheap Front Loader 968US$ 62,000 - 62,296MOQ: 1 Unit
-
6 Ton Cheap Front Loader 966US$ 40,000 - 70,000MOQ: 1 Unit
10ton ZL10F mini wheel loader
|
Overall Dimension | ||
1 |
Length(with bucket on ground) |
4800(mm) |
2. |
Width(to outside of wheels) |
1730(mm) |
3 |
Bucket width |
1700(mm) |
4 |
Height(To the top of the cab) |
2530(mm) |
5 |
Wheel base |
2150(mm) |
6 |
Tread |
1320(mm) |
7 |
Min. ground clearance |
200(mm) |
Main Technical Specification | ||
1 |
Rated load |
1000(Kg) |
2 |
Operating weight |
2500KG |
3 |
Rated bucket capacity |
0.5(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
36kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
4500mm |
8 |
Driving system |
Gear box |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
Diesel engine | ||
1 |
Model |
Changchai 490 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
29 (KW) |
4 |
Inter-bore of cylinder/stroke |
85 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
230(g/Kw.h) |
9 |
Net weight |
240(kg) |
Transmission System | ||
(a.)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(b.)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
8.25-16 |
Brake system | ||
1 |
Service brake |
4 wheel hydraulic brake |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
Packaging & Shipping
Our Services
Quality Assurance
1. Have established and implemented a standard procedure for quality management system and product certification.
2. QA/QC inspectors work independently form the production lines
3. Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
4. A procedure to conducting random inspection after final packaging.
5. A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
6. Tool case and partly consumable accessories attached with shipment meanwhile.
7. After-sales and Quality Warrant Contact for every purchase order.
