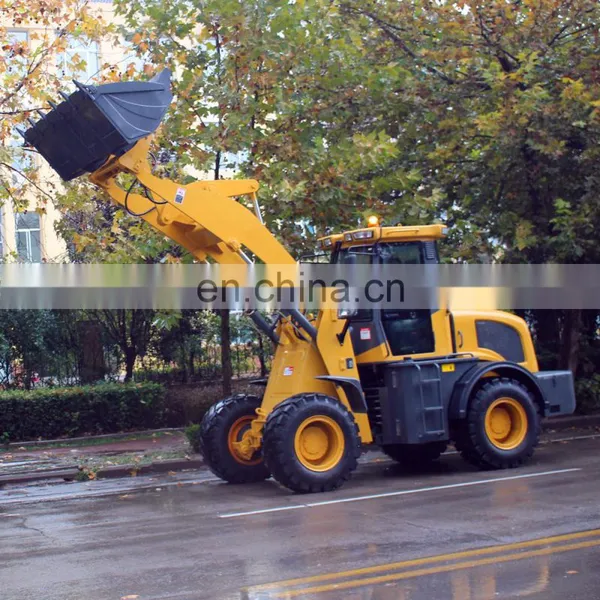

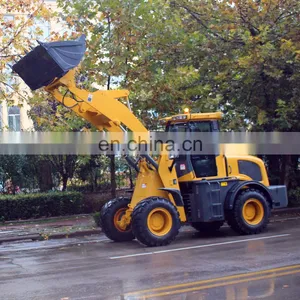

2.5ton wheel loader with trencher auger mix bucket
- 220 Unit / Units per Month
- Qingdao China
- T/T Credit Card
Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Model Number: | ZL25F |
Type: | Front Loader | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year | Condition: | New | Dimension(Long * Breadth * High): | 5850*2050*2860(MM) |
Moving Type: | Wheel Loader | Rated Load: | 2500kg |
Product Description

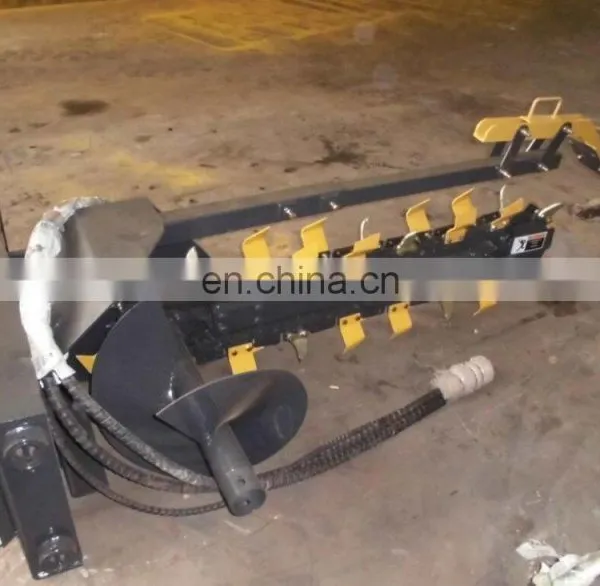

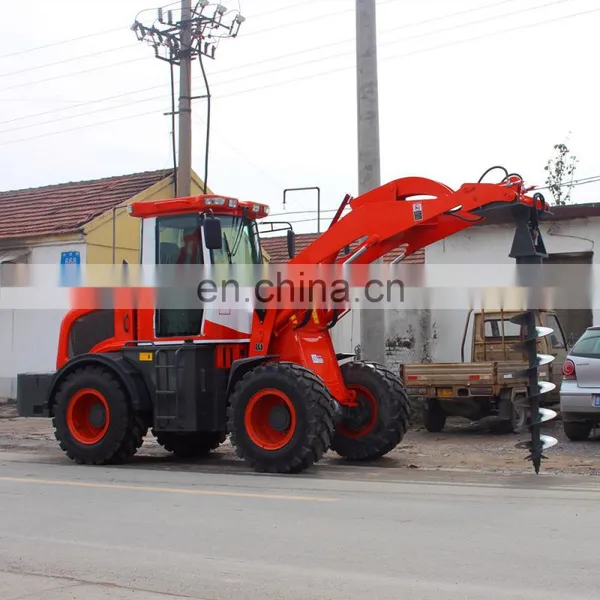

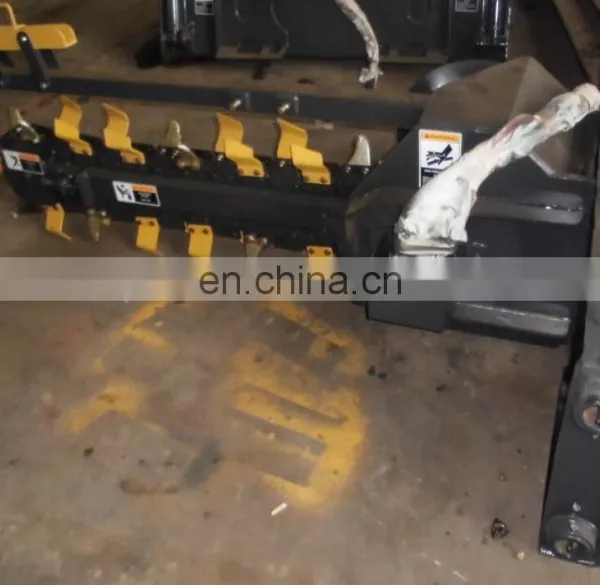

2.5ton wheel loader with trencher and auger
Weifang MAP Import & Export Co.Ltd is a professional manufacture of wheel loader,dumpers,tractors,implements and whole sale supplier,specializing in construction machinery and agricultural equipments.
The specifition of ZL25F are belowed,please kindly check it
OVERALL DIMENSION | ||
1 | LENGTH | 5850(MM) |
2 | WIDTH(to outside of wheels) | 2050(MM) |
3 | HEIGHT(to the top of the grab) | 2860(MM) |
4 | WHEEL BASE | 2400(MM) |
5 | TREAD | 1640(MM) |
6 | MIN.GROUND CLEARANCE | 310(MM) |
MAIN TECHNICAL SPECIFICATION | ||
1 | RATE LOAD | 2500(KG) |
2 | OPREATING WEIGHT | 6500(KG) |
3 | RATEED BUCKET CAPACITY | 1.5(M3) |
4 | BUCKET TYPE | Heavy-duty bolt teeth |
5 | MAX.DUMP CLEARANCE | 2950(MM) |
6 | MAX.BREAKOUT FORCE | 51KN |
7 | MIN.TURNING RADIUS | 5251(MM) |
8 | DRIVING SYSTEM | Hydraulic converter |
9 | TRAVELING SPEED | 2 FORWARD/REVERSE |
(1)1ST GEAR FORWARD | 5.75(KM/H) | |
(2)2ST GEAR FORWARD | 23.86(KM/H) | |
(3)1ST GEAR REVERSE | 5.85(KM/H) | |
(4)2ST GEAR REVERSE | 24(KM/H) | |
ENGINE | ||
1 | MODEL | CUMMINS 4BT3.9-C100 |
2 | TYPE | In-line arrangement,water-cooling |
4 strocks,4 cylinder | ||
3 | RATED OUTPUT | 75(kw) |
4 | Inter-bore of cylinder/stroke | 98*105MM |
5 | Rated speed | 2400(r/min) |
6 | Max.torque | 275(N.M) |
7 | starting type | Electric |
8 | Min.fuel consumption | 235(g/kw.h) |
TRANSMISSION SYSTEM | ||
1 | MODEL | YJ280 |
2 | TYPE | Fixed-spindle power shift |
3 | COLLING TYPE | Pressure oil circulating |
TRANSIMISSION CASE | ||
2 | TYPE | Power shift,spur gear constantly in mesh |
1 | Model | MAP |
3 | GEAR SHIFT POSITION | 2 forward and 2 reverse gears |
ALEX AND TYPE | ||
1 | TYPE OF MAIN REDUCER | Spiral bevel gear,single stage |
2 | SIZE OF TIRE | 16/70-24 |
BRAKE SYSTEM | ||
1 | Sevice brake | Air assisted oil on four wheel |
2 | Parkig brake | Hand operated |
STEERING SYSTEM | ||
1 | TYPE | Middle articulated frame with |
hydraulic | ||
power steering |

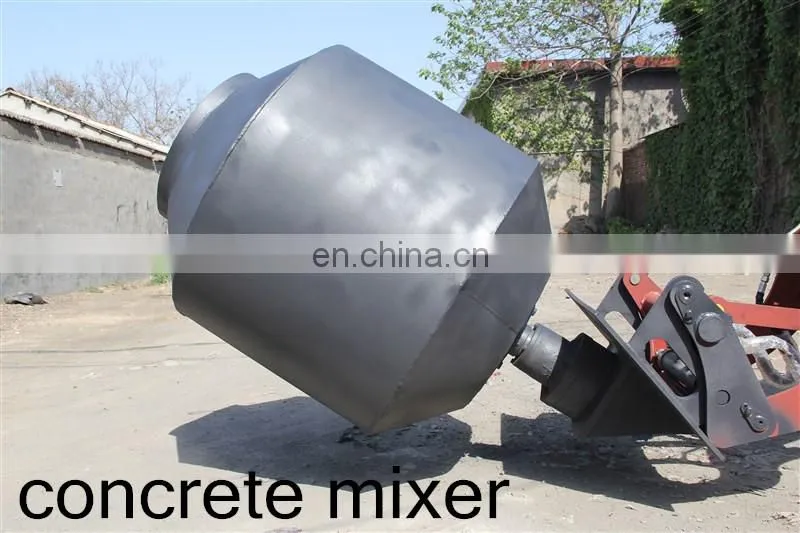

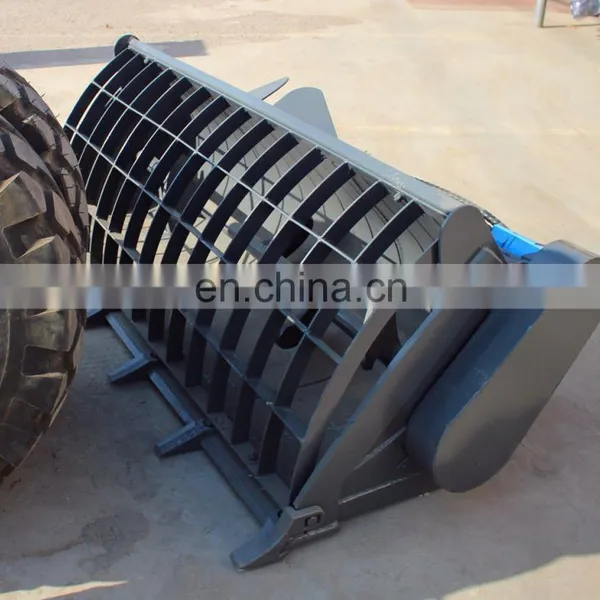

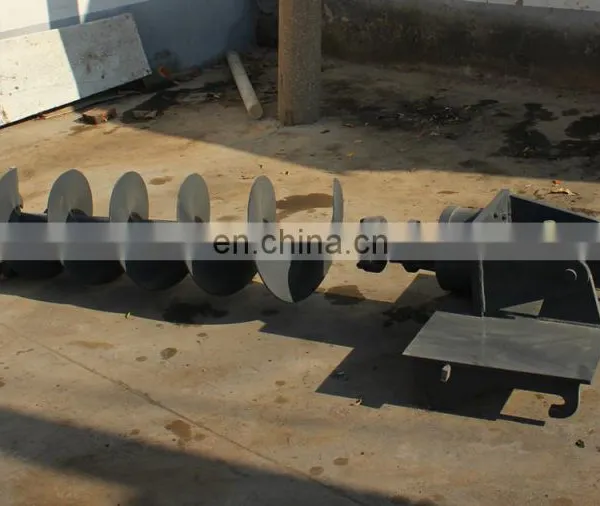

Implements photos
Company information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.
3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .
More information,fell free to contact me.
