Help CenterPopular Small Single Engine 4wd Mini Loader
Related Products
-
2ton 4wd Full Hydraulic LoaderUS$ 12900.00 - 15.00MOQ: 1 Unit -
New Type 4WD Articulated Mini Loader Z06FUS$ 5,300 - 7,090MOQ: 1 Unit
-
New 0.8Ton Mini Loader With Different AttachmentsUS$ 7100.00 - 15.00MOQ: 1 Piece
-
2000kgs Front End Small Mini Wheel LoaderUS$ 12,890 - 13,690MOQ: 1 Unit
-
1.0ton Construction Machinery Wheel LoaderUS$ 8,000 - 10,000MOQ: 1 Unit
1.4x4 wheel drive
2.with different attachment
3.Color can be optional
4. 2 Cylinders engine

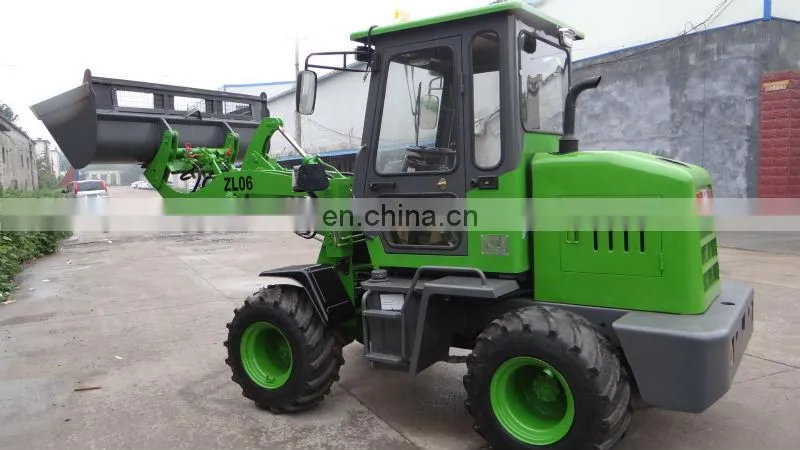

Specification Multifunction Wheel Loader ZL06
Wheel loader model |
ZL06 |
|
Specification |
overall weight(kg) |
2000 |
L×W×H(mm) |
4700×1200×2280mm |
|
rated bucket capacity(m3) |
0.4 |
|
Rated load(kg) |
800 |
|
dump height (mm) |
2350 |
|
Dump distance |
700mm |
|
Wheelbase |
2100mm |
|
Thread |
1400/1405mm |
|
Total time |
11s |
|
Engine |
Model |
ChangchaiL24
|
Type |
direct injection, horizontal, water-cooled, four stroke, single cylinder |
|
Rated power(KW) |
25KW |
|
Rated speed(r/min) |
2400 |
|
Working system |
Transmission System |
Manual clutch |
Distribution of work valve |
DF15.2C |
|
Working pump |
CBF32 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
350±1 |
|
Min turning radius(mm) |
3400 |
|
Tires |
Standard tires |
750-16 |
Optional tires |
28X9-15 tires, same as used on forklift |
|

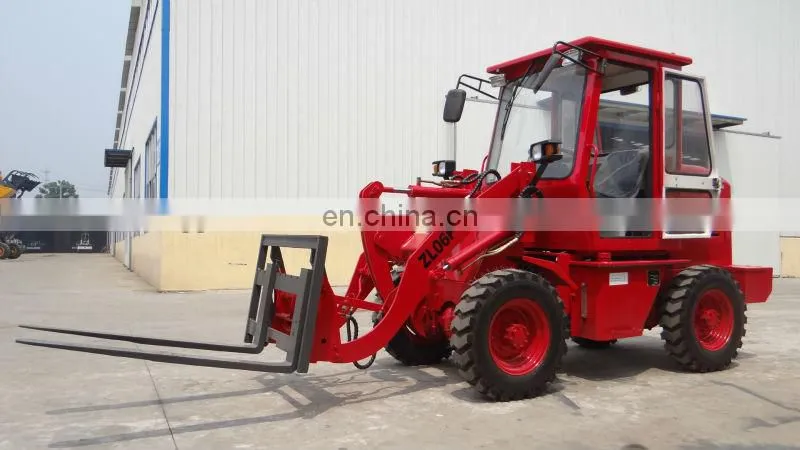

Red loader with fork
Green loader with snow bucket and widest tire optional

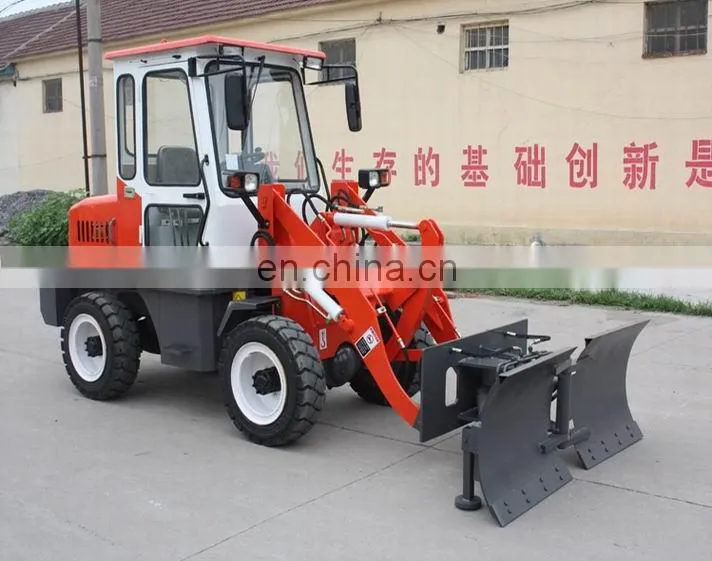

White and red color loader with snow blade
warmer in the front

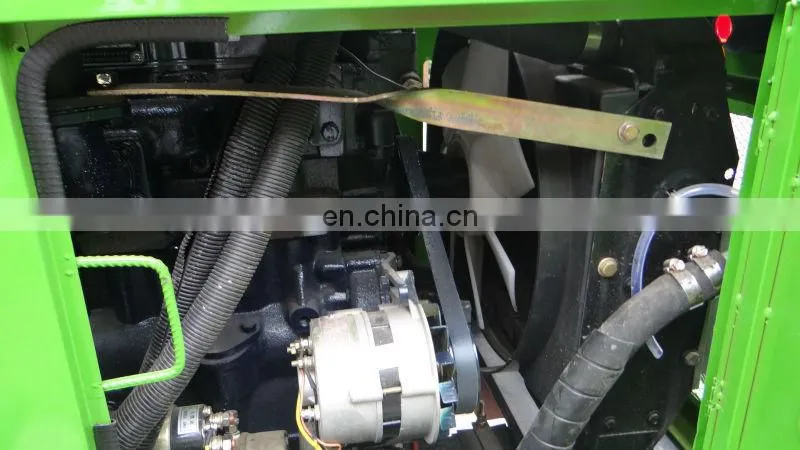

Belt transmission
Attachments avaliable
2sets in1*20GP container
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month
4. our site dumper are exported to many developed countries, and satisfied the customers
1. How to order?
-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
-If you still don't understand, please do not hesitate to ask me.
2. Related products?
ZL06F ZL08F ZL10F ZL12F ZL15F ZL16F ZL20F
3. How do we visit you and your factory?
-First of all, welcome you or any appointed agent to vist and inspect our factory.
-You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours)
-You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes)
-We can pick up you at Qingdao airport or Weifang railway station.
-Please kindly let us know your schedule in details, so that we can arrange everything for you.
4. Why you choose us?
-As manufacturer, our products have excellent quality and competitive price.
-Good after-sales services and 24 months warranty are visible.
-Strictly testing and checking before shipping.
-10 years experience in manufacturing and 10years exporting experience in Alibaba and Made-In-China
