Home > Products > Wheel Loader > 2000kgs front end small mini wheel loader
2000kgs front end small mini wheel loader
- 500 Unit / Units per Month
- China port
- T/T Credit Card
You May Like
-
1.0ton construction machinery wheel loader
-
2000kg Loading Capacity Construction Machinery Mini Wheel Loader ZL20
-
joystick control chinese front end loader grapple ZL-20
-
high quality new 3ton boom wheel loader
-
800kgs mini skid steer loader garden loader
-
China 908 mini skid steer loader mini skid loader
Product Details
Brand Name | MAP | Place of Origin | Shandong, China | |
Type | Mini Loader | Certification | ce, CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12months | |
Condition | New | Dimension(Long * Breadth * High) | 5600X2100X2850MM | |
Moving Type | Wheel Loader | Rated Load | 2000kgs |
Product Description
2000kgs front end small mini wheel loader
1)Dumping height:3100mm

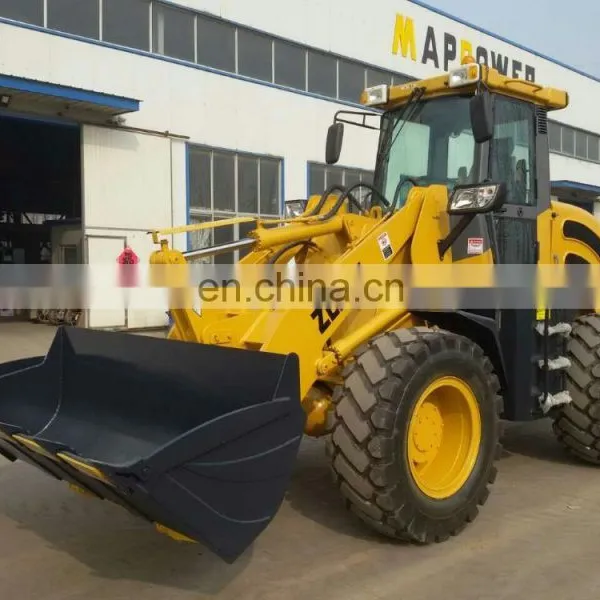

2)Loader Bucket :1.2CBM
3)17/16-20 Tire
4)Joystick and Pilot control
Wheel Loader CS920 WITH CE
Features 2.0 ton heavy machine tractor loader
*Fully hydraulic steering,power shift hydraulic operated working device.
*The full hydraulic steering system is smooth in operation, stable and reliable in performance

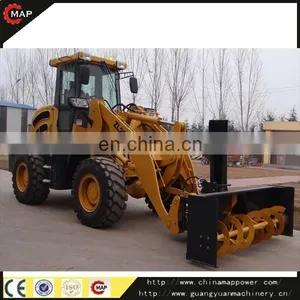

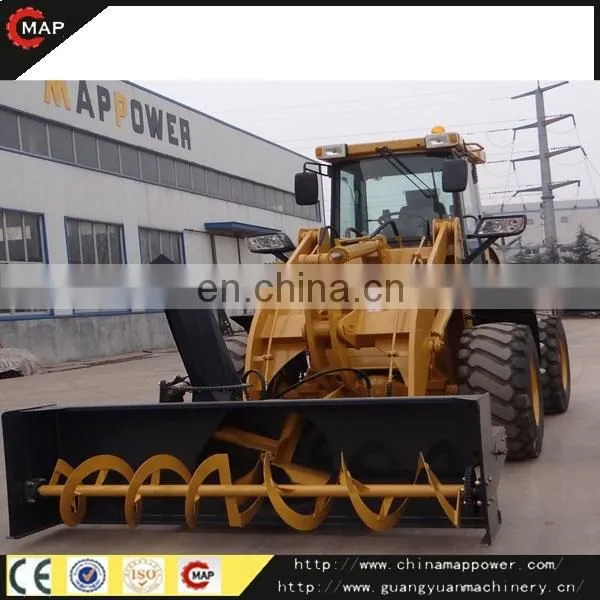

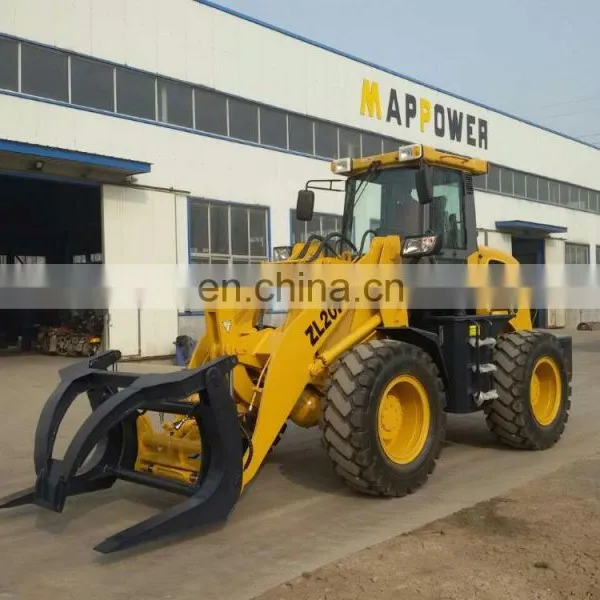

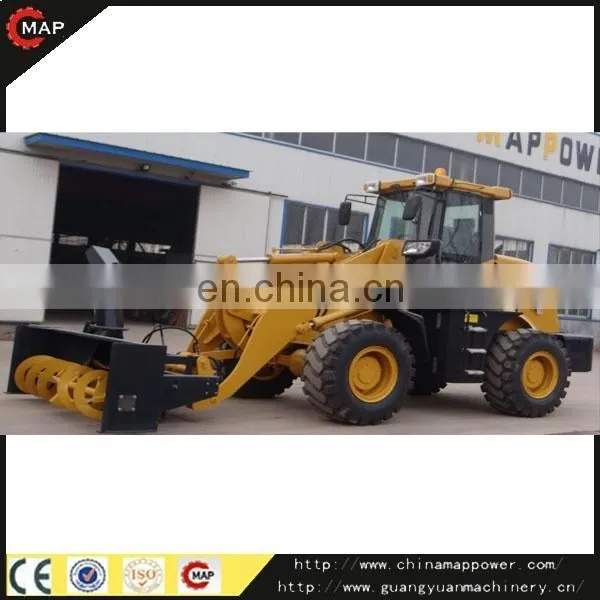

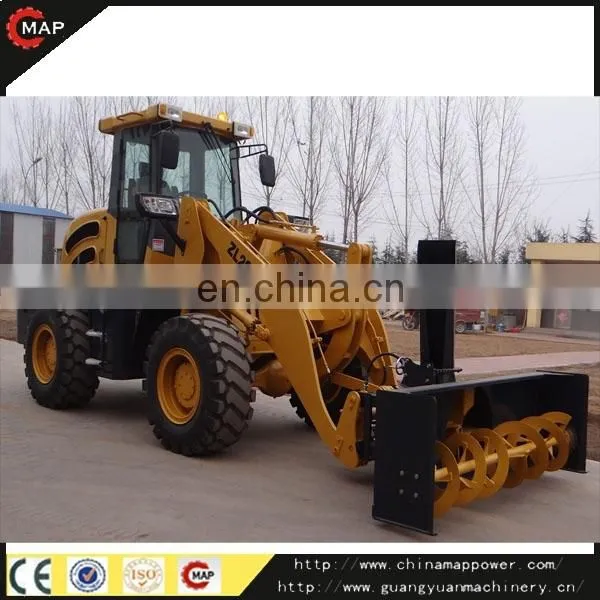

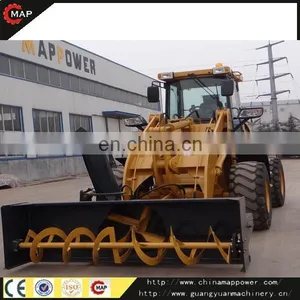

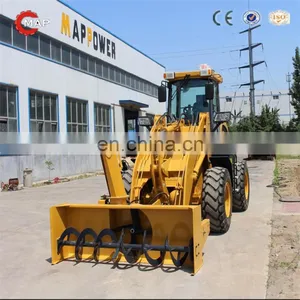

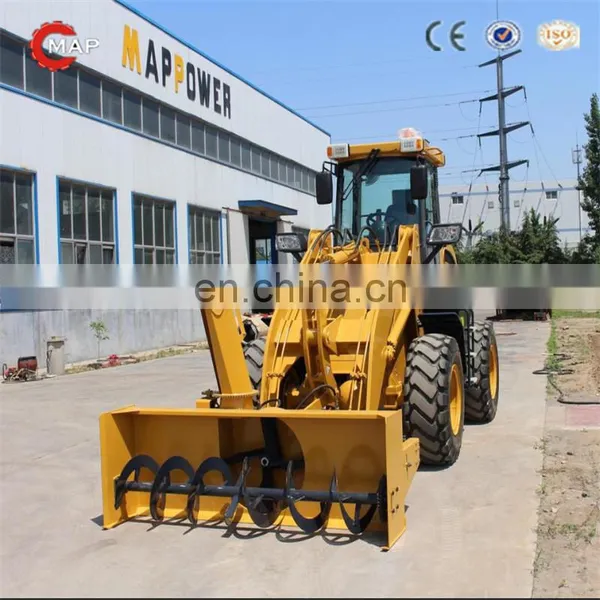

*Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
*High boom lifting capacity for heavy duty handing jobs.
*The bucket is equipped with automatic leveling device, so that the operation is easier.
*Big tractive force and traction device at the rear end, which meet more needs.
Detailed Specification:
Performance | 1 | rated loading | 2000kg |
2 | overall weight | 5800kg | |
3 | rated bucket capacity | 1.2m3 | |
4 | maximum tractive force | 54KN | |
5 | maximum breakout force | 45.4KN | |
6 | maximum grade ability | 30 | |
7 | maximum dump height | 3000mm | |
8 | maximum dump reach | 752mm | |
9 | overall dimension (L×W×H) | 5600×2100×2850mm | |
10 | minimum turning radius | 5251mm | |
Engine | 11 | model | 4105 |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | No. of cylinder-bore/stroke | 4105×125mm | |
14 | rated power | 58kw2200r/min | |
15 | maximum torque | 270N.m | |
16 | min fuel-consume ratio | ≤243g/kw.h | |
Transmission system | 17 | torque converter | YJ280A |
18 | gearbox mode | Countershaft power-shift | |
19 | gear shift | 2 forward shift 2 reverse shift | |
20 | maximum speed | 24km/h | |
Drive axles | 21 | main reducing spiral
| Circular Arc Bevel gear, single stage |
22 | decelerating mode | Single stage planetary type | |
23 | wheel base (mm) | 2400mm | |
24 | wheel tread | 1640mm | |
25 | ground clearance | 310mm | |
Hydraulic system | 26 | system working pressure | 16MPa |
27 | boom lifting time | 4.8s±0.2s | |
28 | total time | 9.2s±0.5s | |
29 | fuel tank capacity | 80L | |
30 | function of leveling automatically | yes | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | flexible shaft operated external drum | |
Tyre | 33 | type specification | 16/7020 |
34 | front tyre pressure | 0.22Mpa | |
35 | rear tyre pressure | 0.18Mpa |
Why choose us? |
Main Features of WEIFANG Map Power :
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month
Attachments avaliable
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Company Contact Information
Contact :tONY
| Company Name: | Weifang Map Power Import & Export Co., Ltd. |
| Operational Address: | Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong, China (Mainland) |
| Telephone: | 0086-536-8502890 |
| Website: | |
| Website on : | |
| Store: | /store/904969 |
Packing:Nude packing
Shipping: 2sets in 40HQ
