1.6ton shovel loader with pallet fork
Performance and characteristic
1.The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance.It avoids power failure of the engine due to the suddenly increased external load.The wheel loader can absorb and eliminate the vibration and impact of external load on engine.It protects the drive system and engine,increases the service life,facilitates the operation and achieves higher economical and production efficiency.
2.The wheel loader uses a central articulated frame and load sensing hydraulic steering gear.The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning(this will ensure safe driving.)The wheel loader has the advantages of easy operation on narrow sites,flexible operation,safety,convenient maintenance and so on.
3.The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment.The machine offers the driver s comfortable drive and wide view.
Earth moving machine small front wheel loader ZL16F specifications
| OVERALL DIMENSION | |||
| 1 | LENGTH OVERALL | 5050(MM) | |
| 2 | WIDTH(to outside of wheels) | 2050(MM) | |
| 3 | BUCKET WIDETH | 1800(MM) | |
| 4 | HEIGHT(to the top of the grab) | 2750(MM) | |
| 5 | WHEEL BASE | 2100(MM) | |
| 6 | TREAD | 1500(MM) | |
| 7 | MIN.GROUND CLEARANCE | 310(MM) | |
| MAIN TECHNICAL SPECIFICATION | |||
| 1 | RATE LOAD | 1600(KG) | |
| 2 | OPREATING WEIGHT | 4800(KG) | |
| 3 | RATEED BUCKET CAPACITY | 0.9(M3) | |
| 4 | BUCKET TYPE | Heavy-duty bolt teeth | |
| 5 | MAX.DUMP CLEARANCE | 2800(MM) | |
| 6 | MAX.BREAKOUT FORCE | 51KN | |
| 7 | MIN.TURNING RADIUS | 5251(MM) | |
| 8 | DRIVING SYSTEM | Hydraulic converter | |
| 9 | TRAVELING SPEED | 2 FORWARD/REVERSE | |
| (1)1ST GEAR FORWARD | 5.75(KM/H) | ||
| (2)2ST GEAR FORWARD | 23.86(KM/H) | ||
| (3)1ST GEAR REVERSE | 5.85(KM/H) | ||
| (4)2ST GEAR REVERSE | 24(KM/H) | ||
| ENGINE | |||
| 1 | MODEL | Cummins diesel engine with EPA | |
| 2 | TYPE | In-line arrangement,water-cooling | |
| 4-stroke diesel engine | |||
| 3 | RATED OUTPUT | 42kw/2200r.min | |
| 4 | Inter-bore of cylinder/stroke | 98*105MM | |
| 5 | Rated speed | 2200(r/min) | |
| 6 | Max.torque | 270(N.M) | |
| 7 | starting type | Electric | |
| 8 | Min.fuel consumption | 243(g/kw.h) | |
| TRANSMISSION SYSTEM | |||
| 1 | MODEL | YJ280 | |
| 2 | TYPE | Fixed-spindle power shift | |
| 3 | COLLING TYPE | Pressure oil circulating | |
| TRANSIMISSION CASE | |||
| 2 | TYPE | Power shift,spur gear constantly in mesh | |
| 1 | Model | MAP | |
| 3 | GEAR SHIFT POSITION | 2 forward and 2 reverse gears | |
| ALEX AND TYPE | |||
| 1 | TYPE OF MAIN REDUCER | Spiral bevel gear,single stage | |
| 2 | SIZE OF TIRE | 20.5/70-16 | |
| BRAKE SYSTEM | |||
| 1 | Sevice brake | Air assisted oil on four wheel | |
| 2 | Parkig brake | Hand operated | |
| STEERING SYSTEM | |||
| 1 | TYPE | Middle articulated frame with | |
| hydraulic | |||
| power steering | |||

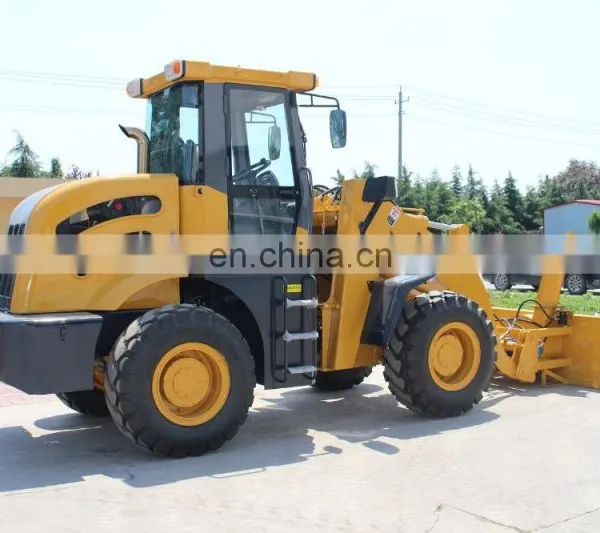

Earth moving machine small front wheel loader ZL16F photoes
Loading container. 2-3 pcs for a 40' container well fixed .
Lead time. 15 -20 working days after get the deposit.
Attachments photos

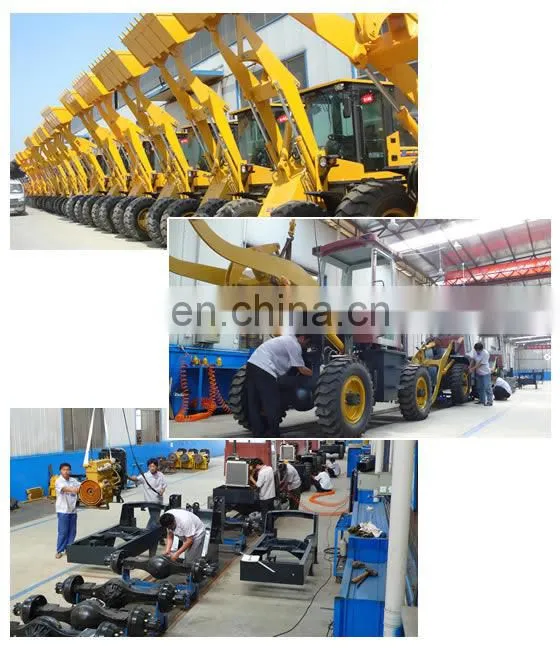

Company information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.
3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .
If there have any question ,please feel free to contact me ,
