1.6ton articulated wheel loader with joystick control
Performance and characteristic
I, Equipped with WEICHAI engine, optional EURO III engine.
II,The international CE certification provides an assurance in performance and safety of wheel loader.

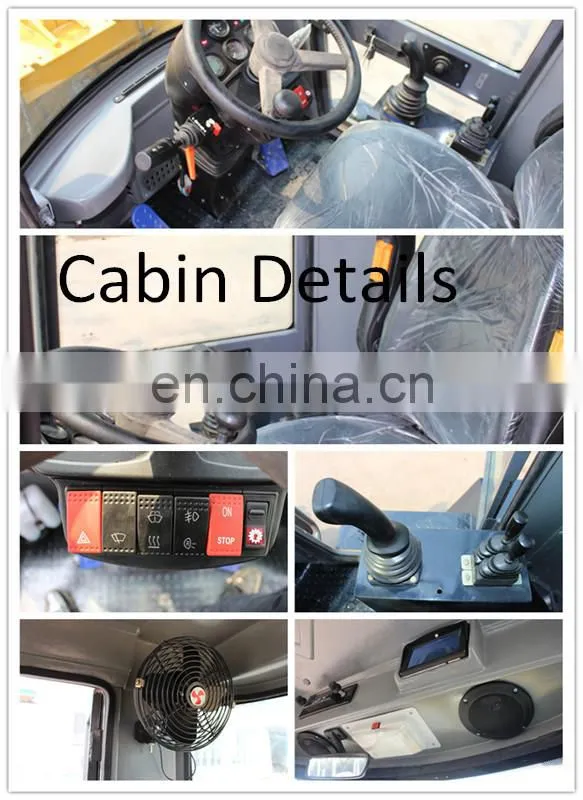

III,Joystick makes for supreme user comfort and easy control of the wheel loaders.
IV,Hydraulic quick change device, attached various optional tools to solve different tough work.
V,Strengthened and reliable hydraulic transmission, drive axle.
VI,Optimized and choose the best quality Hydraulic component which increase the productivity ,sealing reliabilit
VII,Articulated frame with box structure.
VIII,Option attachment: wooden fork, pipe/pallet fork, grass fork, rock bucket, bigger bucket, long arm
electric gear shift, snow blade,snow blower and etc.
Earth moving machine small front wheel loader ZL16F specifications
|
Mini Wheell Loader Specifications (1.6T wheel loader) Overall Dimension | |||
1 |
Length(with bucket on ground) |
4900(mm) |
|
2 |
Bucket width |
2070(mm) |
|
3 |
Height(To the top of the cab) |
2740(mm) |
|
4 |
Wheel base |
2150(mm) |
|
5 |
Tread |
1500(mm) |
|
6 |
Min. ground clearance |
342(mm) |
|
Main Technical Specification | |||
1 |
Rated load |
1600(Kg) |
|
2 |
Operating weight |
4300KG |
|
3 |
Rated bucket capacity |
1.0(CBM) |
|
4 |
Max. breakout force |
45KN |
|
5 |
Max. dump clearance |
2850(mm) |
|
6 |
Dump reach |
960(mm) |
|
7 |
Dump angle at any position |
≤40 |
|
8 |
Digging depth(with bucket bottom horizontal) |
146(mm) |
|
9 |
9 Max. turning radius |
|
|
|
(1) Outside of bucket |
4850(mm) |
|
(2) Outside of rear wheel |
4675(mm) |
||
10 |
Pivot angle frame |
38+ |
|
11 |
Oscillating angle of rear axle + |
±11° |
|
12 |
Lifting time of bucket |
≤5.9(sec.) |
|

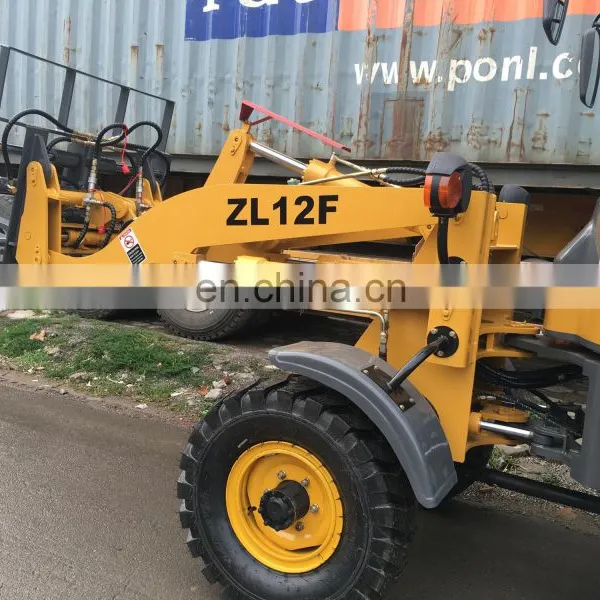

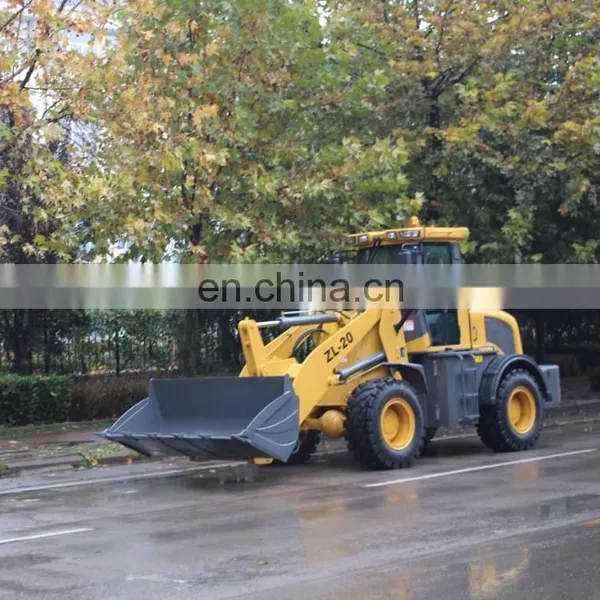

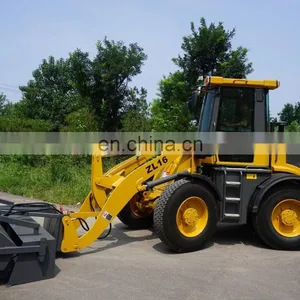

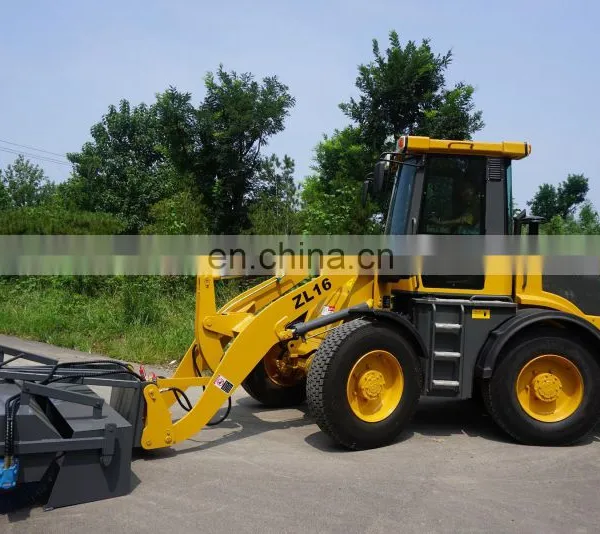

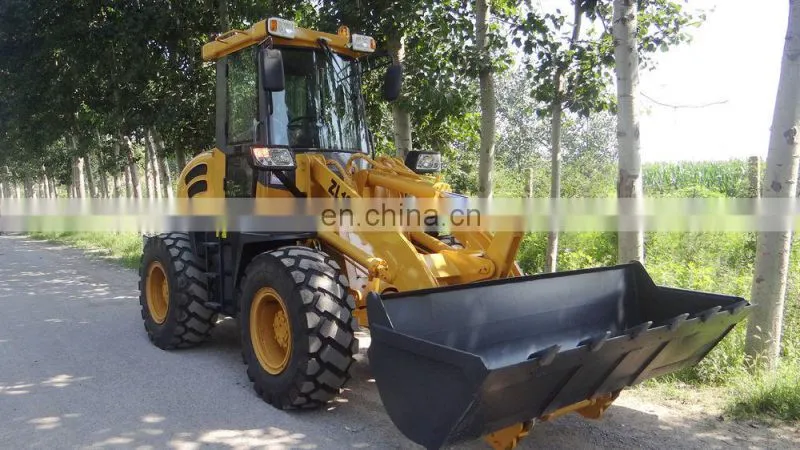

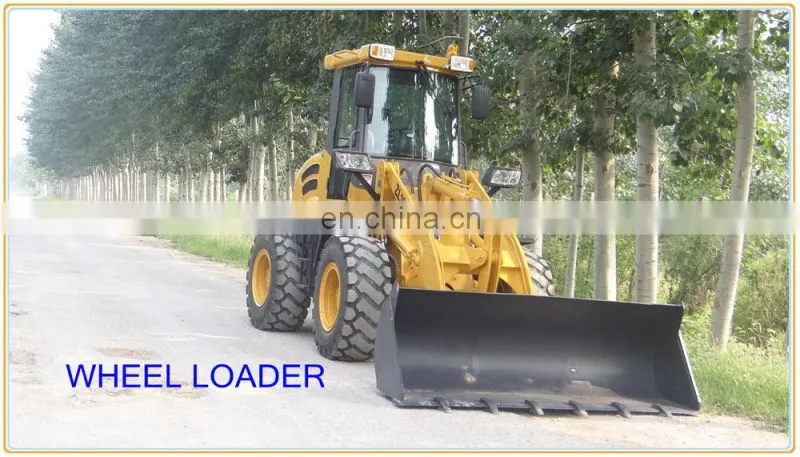

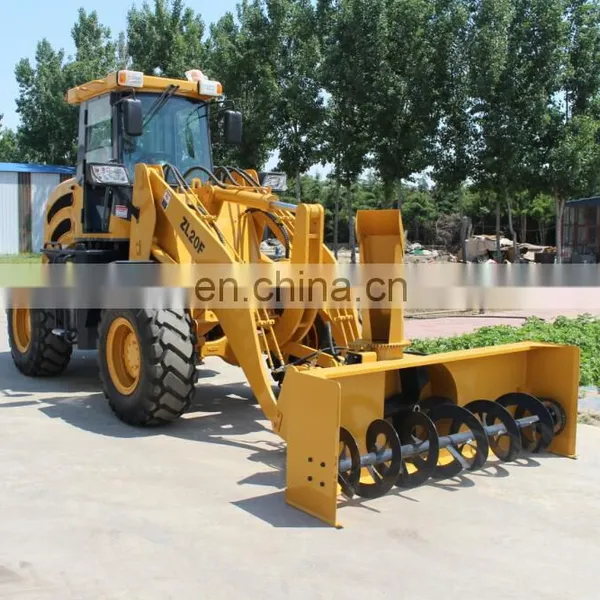

Earth moving machine small front wheel loader ZL16F photoes
Loading container. 2-3 pcs for a 40' container well fixed .
Lead time. 15 -20 working days after get the deposit.
Attachments photos

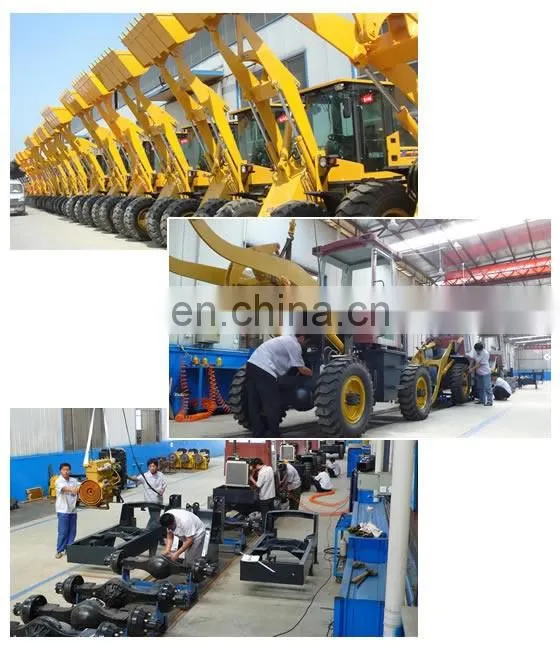

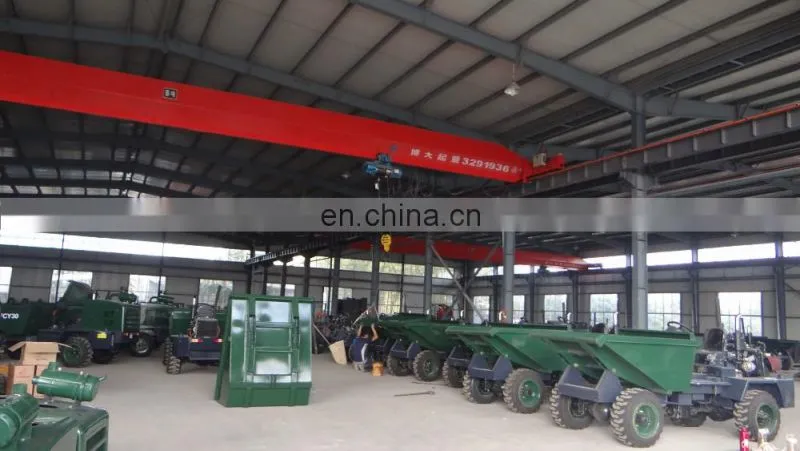

Company informaton
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.
3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .
If there have any question ,please feel free to contact me ,
