3.0ton ship cargo hold cleaning wheel loader, harbor dedicated loader, harbor dedicated loader
Product Description
This loader is well design for construction work .It can be attach many kond s of attachments made by ouy company,such as pallet fork ,4in1 bucket , snow bucket ,snow blower ,snow blade ,wood grapple , grass grapple, euro grass grapple,etc.Beacuse the midsize type,the loader can do well job in narrow place with high efficiency,such as cargo hold.
| Items | Parameter | Items | Parameter |
| Overall working weight | 10700kg | Max speed | 40km/h |
| Rated bucket capacity | 1.8M3 | Front and rear axles | |
| Rated load | 3000kg | Main transmission type | Spiral gear,first stage decelerate |
| Max. tractive force | ≥96KN | Final decelerate type | First stage,planetary gear decelerate |
| Max.breakout force | ≥96KN | Tyre | |
| Max.grade ability | 30° | Type Specification | 17.5-25 |
| Max.dumping height | 3100mm | Front pressure | 0.333-0.353MPa |
| Dumping distance | 2100mm | Rear tyre pressure | 0.275-0.294MPa |
| Overall dimension(L*W*H) | 7270*2220*3170(mm) | Steering system | |
| Engine | Type | Articulated load-sensing | |
| hydraulic steering system | |||
| Model | 6BT5.9-C130 | Steering angle | 36°each side |
| Type | Inline,water,,cooling,dry, | Min.turning radius | Outside of bucket outside |
| cylinder,direct injection | of rear wheel | ||
| No. of cylinder-bore/stroke | 6-105*130(mm) | Hydraulic system | |
| Max.torque | 510N.m | System working pressure | 16Pa |
| Rated power | 97KW | Boom lifting time | ≤5.3s |
| Rated speed | 2200r/min | Total time | ≤9.2s |
| Min fuel-consume ratio | ≤215g/KW.h | Brake system | |
| Transmission system | Service brake | Ait over hydraulic disc brake on 4 wheels | |
| Torque converter | Single plase,3 elements | Parking brake | Manual rose hoof type brake |
| Modulus of converter | 3.25 | Fill capacity | |
| Transmission | Fixed axis type power shift | Fuel | 140L |
| Gear shift | 4 forward shift,3 reverse shift | Hydraulic oil | 130L |

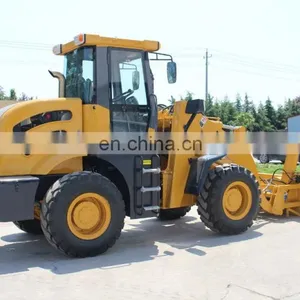

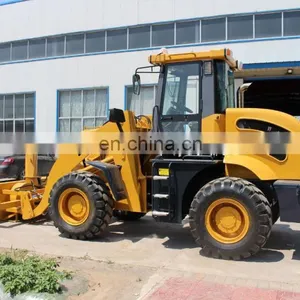

Attachments photos
With the attachments mentioned,the wheel loader can do mang kinds of ets all kinds of needs.
Company information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.
3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .
If there have any question,please feel free to contact me ,glad to help you .
