ZL16 hjullastare for snow, CE marked
- 100 Unit / Units per Month
- Qingdao Port
- T/T Credit Card
Product Details
Brand Name: | Wheel loader | Place of Origin: | Shandong, China | Model Number: | ZL16F |
Type: | Mini Loader | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year after arrived the destination port | Condition: | New | Dimension(Long * Breadth * High): | 4900X2070X2740MM |
Moving Type: | Wheel Loader | Rated Load: | 1600KGS |
Product Description
1.6ton compact wheel loader, front end wheel loader Main Feature:
1. rated load: 1600kg, bucket capacity: 0.9cbm
2. wheel loader engine: Weichai 4102 water cooled diesel engine
3. dump capacity: 2850mm
4. steering: hydraulic power steering
5. tyre: 16/70-16, 4 wheel drive
Here are the detailed specification as follows, pls kindly check:
Performance | rated loading | 1600kg |
overall weight | 4800kg | |
rated bucket capacity | 0.9m | |
maximum tractive force | 54KN | |
maximum breakout force | 45.4KN | |
maximum grade ability | 30 | |
maximum dump height | 2850mm | |
maximum dump reach | 752mm | |
overall dimension(L*W*H) | 5200*1950*2740mm | |
minimum turning radius | 5251mm | |
Engine | model | WEICHAI4102 |
type | vertical, in-line, water cooled, 4-stroke diesel engine | |
No. of cylinder-bore/stroke | 4-105*125mm | |
rated power | 47kw 2200rpm | |
maximum torque | 270N.m | |
min fuel-consume ratio | ≤243g/kw·h | |
Transmission system | torque converter | YJ265A |
gearbox mode | countershaft power-shift | |
gear shift | 2 forward shift 2 reverse shift | |
maximum speed | 24km/h | |
Drive axles | main reducing spiral | Circular Arc Bevel gear, single stage |
decelerating mode | single stage planetary type | |
wheel base(mm) | 2400mm | |
wheel tread | 1640mm | |
ground clearance | 310mm | |
Hydraulic system | system working pressure | 16MPa |
boom lifting time | 4.8s+0.2s | |
total time | 9.2s+0.5s | |
fuel tank capacity | 80L | |
function of leveling automatically | yes | |
Brake system | service brake | air assist disc brake on 4 wheel |
parking brake | flexible shaft operated external drum | |
Tyre | type specification | 16/70-16 |
front tyre pressure | 0.22MPa | |
rear tyre pressure | 0.18MPa |
Performance Features
- The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
- The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving.)The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
- The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
- The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
- The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.

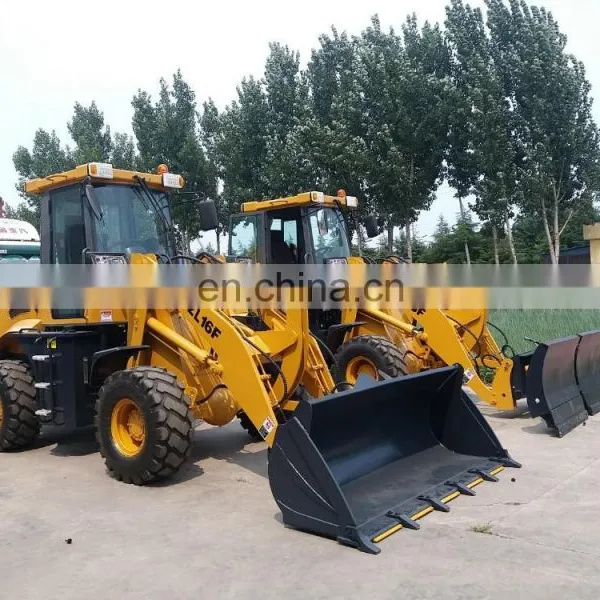

ZL16F wheel loader: 4wd, hydraulic operation, with joystick/quick hitch optional
ZL16F wheel loader with heavy duty teeth bucket

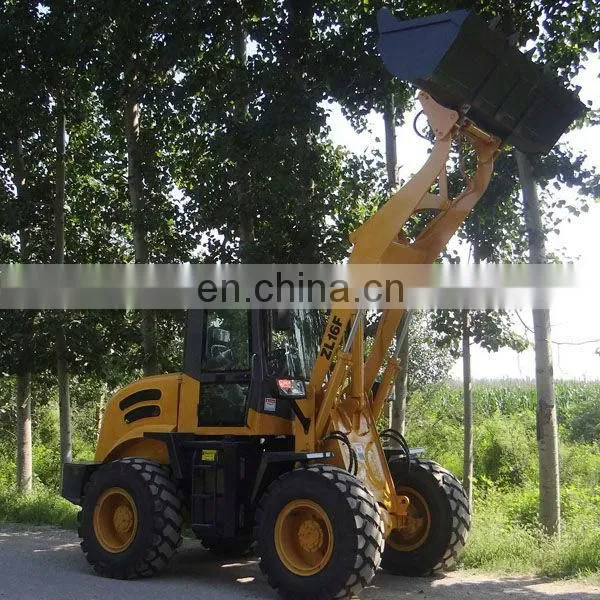

ZL16F mini wheel loader: long and strong arms, thick cabin

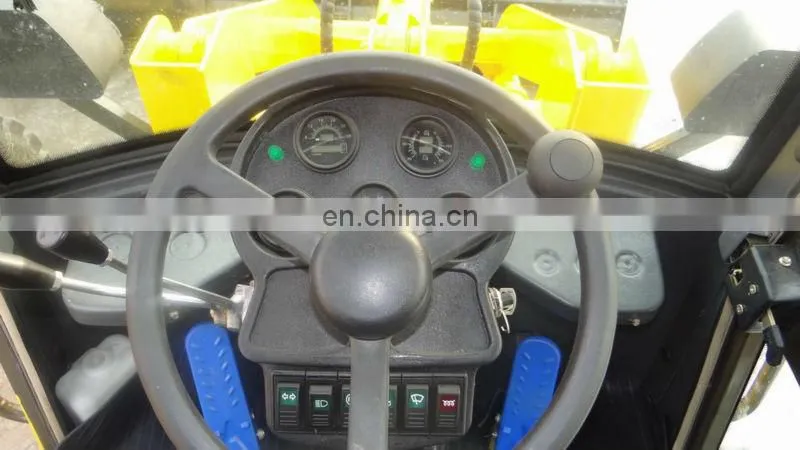

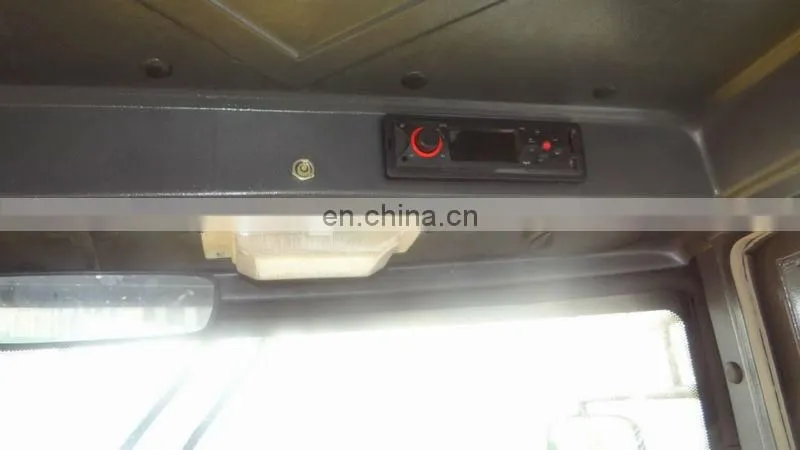

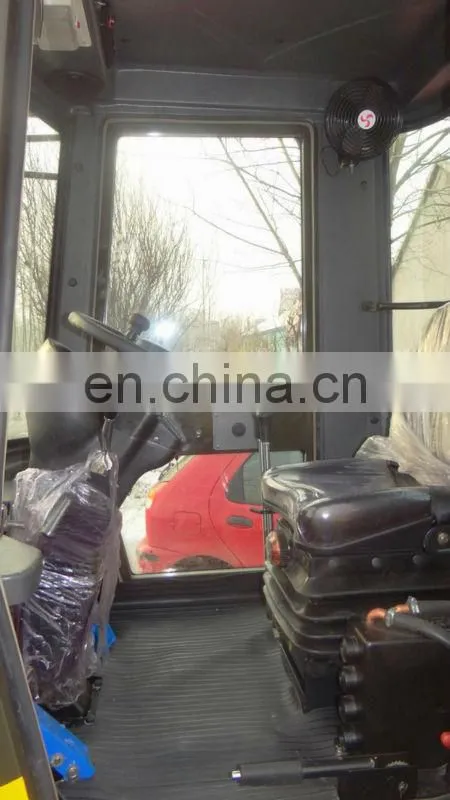

Cabin of ZL16F wheel loader: with fan, radio, heater, adjusting steering wheel and adjusting seat.etc
