Supply wheel loader cover 0.6ton to 2.0ton, with implements, like the forks, 4 in 1 bucket, snow bucket, snow chains, snow blade, snow blower, road sweeper and so on.

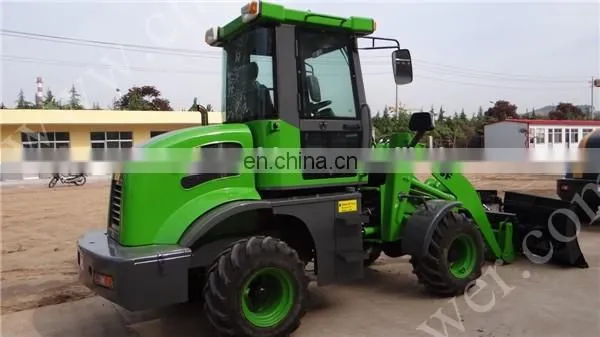

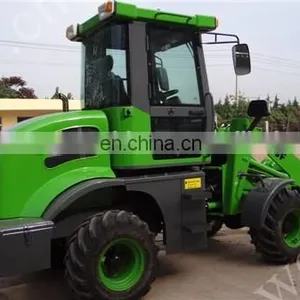

Main Features of Our ZL10F Mini Wheel Loader:
1. wheel loader rated load: 1000kg, bucket capacity:0.5cbm
2. wheel loader engine: Changchai 490 water cooled diesel engine
3. wheel loader Dump clearance: 2650mm
4. wheel loader steering: clutch or hydraulic optional
5. wheel loader tire size:8.25-16
6.wheel loader implements: available
Detailed specification of ZL10 mini wheel loader:
Overall Dimension | ||
1 |
Length(with bucket on ground) |
4800(mm) |
2. |
Width(to outside of wheels) |
1730(mm) |
3 |
Bucket width |
1700(mm) |
4 |
Height(To the top of the cab) |
2530(mm) |
5 |
Wheel base |
2150(mm) |
6 |
Tread |
1320(mm) |
7 |
Min ground clearance |
200(mm) |
Main Technical Specification | ||
1 |
Rated load |
1000(Kg) |
2 |
Operating weight |
2500KG |
3 |
Rated bucket capacity |
0.5(CBM) |
4 |
Bucket type |
Heavy duty bolt teeth |
5 |
Max breakout force |
36kN |
6 |
Max dump clearance |
2650(mm) |
7 |
Min turning radius |
4500mm |
8 |
Driving system |
Gear box |
9 |
Traveling speed(Km per h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
Diesel engine | ||
1 |
Model |
Changchai 490 |
2 |
Type |
In line arrangement Water cooling |
3 |
Rated output |
29 (KW) |
4 |
Inter bore of cylinder per stroke |
85 (mm) |
5 |
Rated speed |
2300(r per min) |
6 |
Max. Torque |
275(N M) |
7 |
Starting type |
Electric |
8 |
Min specific fuel consumption |
230(g/Kw h) |
9 |
Net weight |
240(kg) |
Transmission System | ||
Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
8.25 -16 |
Brake system | ||
1 |
Service brake |
4 wheel hydraulic brake |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |

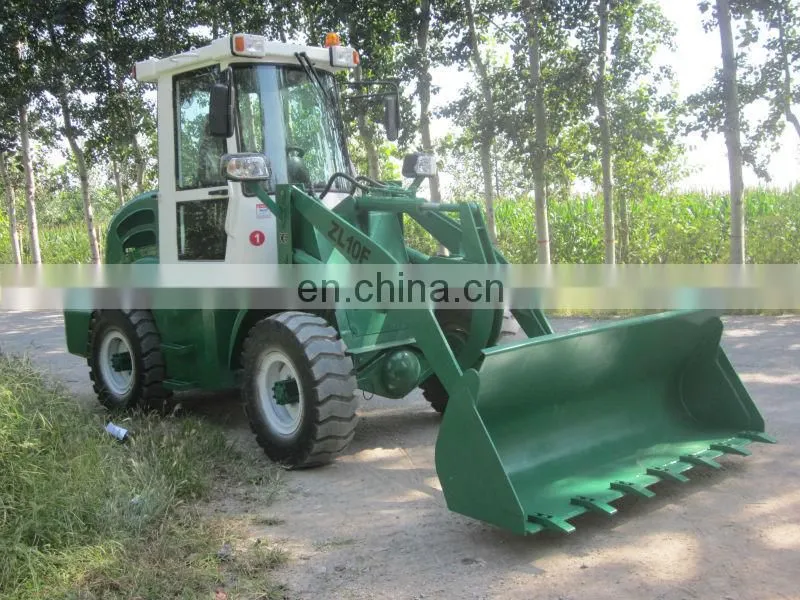

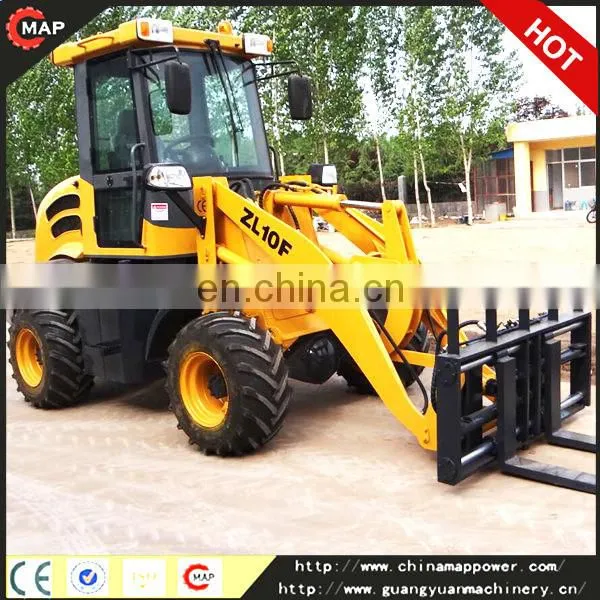

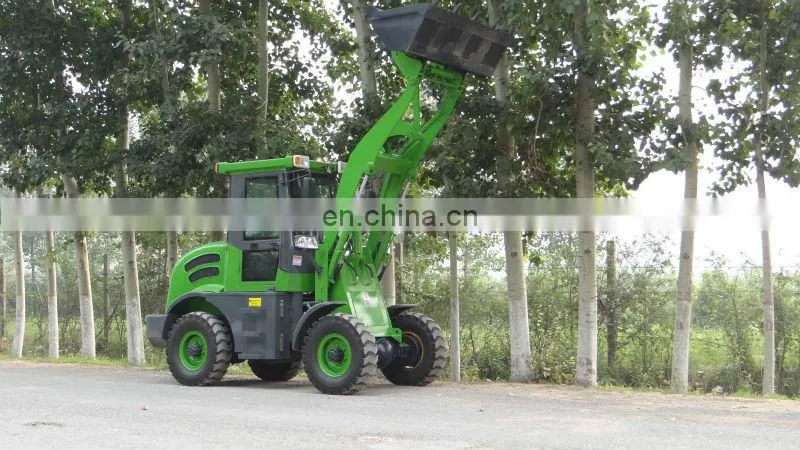

ZL10F Wheel loader: 2650mm max. dump height

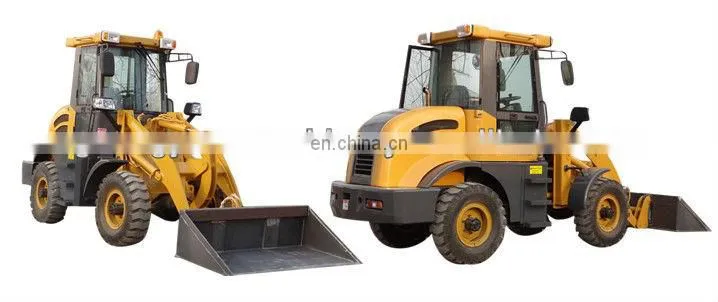

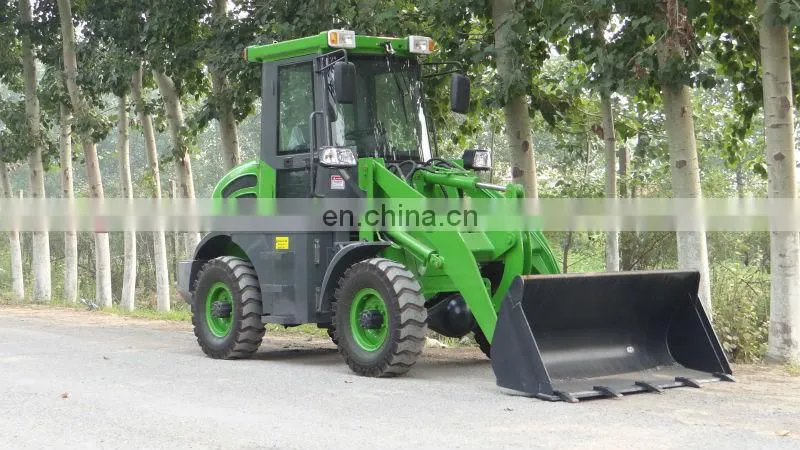

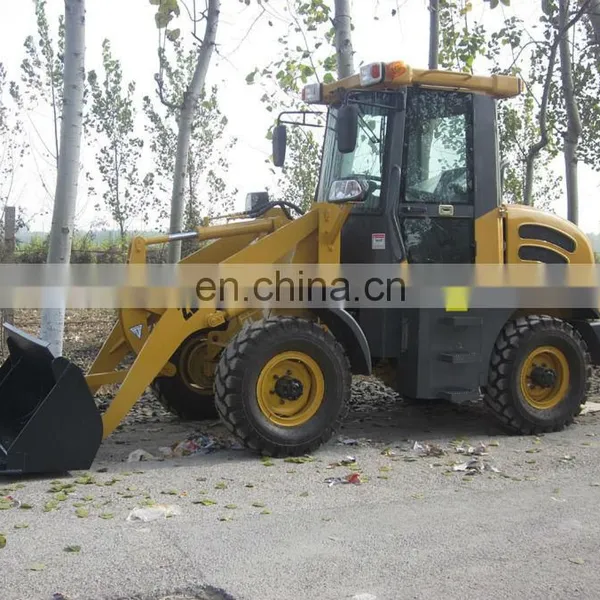

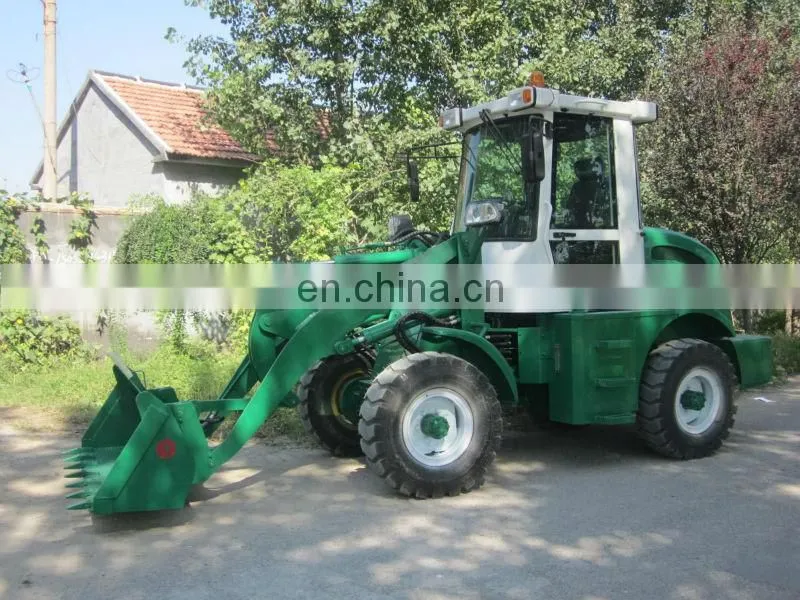

ZL10 mini wheel loader: with standard bucket. clutch or torque converter optional.

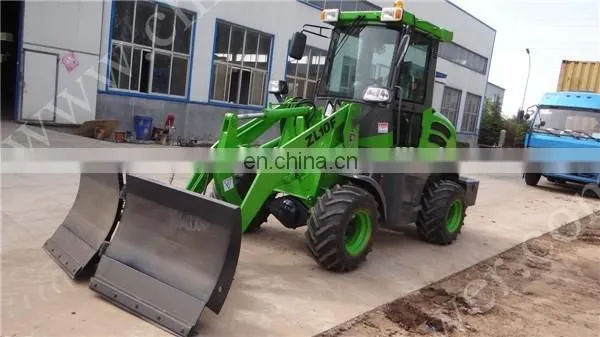

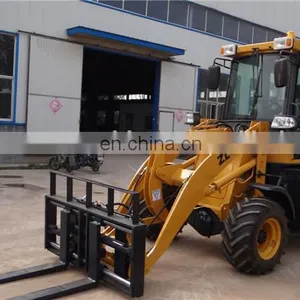

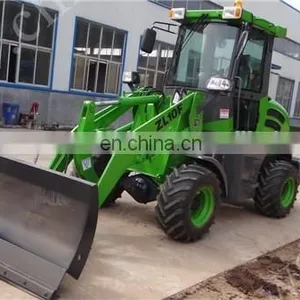

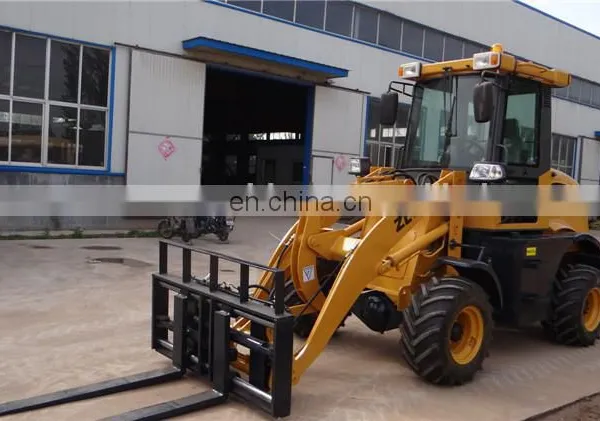

Joystick, quick hitch, 4 in 1 bucket, forks, light bucket, snow blade, snow blower, road sweeper.ect for ZL10 wheel loader are available
