ZL10F Construction Mini Wheel Loaders With Post Hole Digger

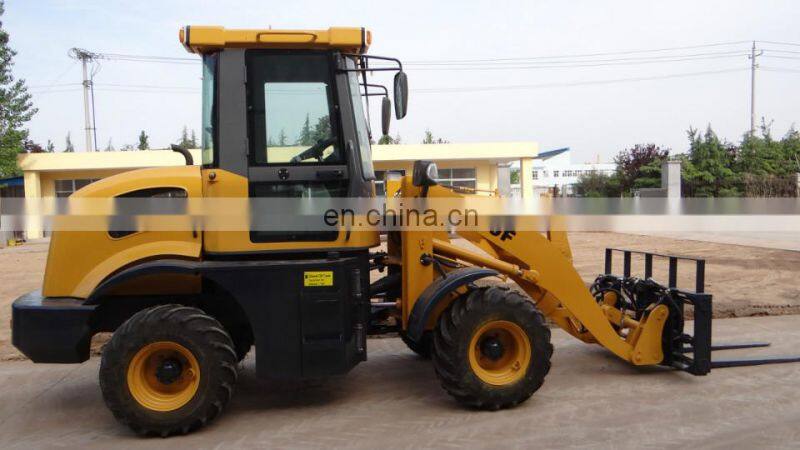

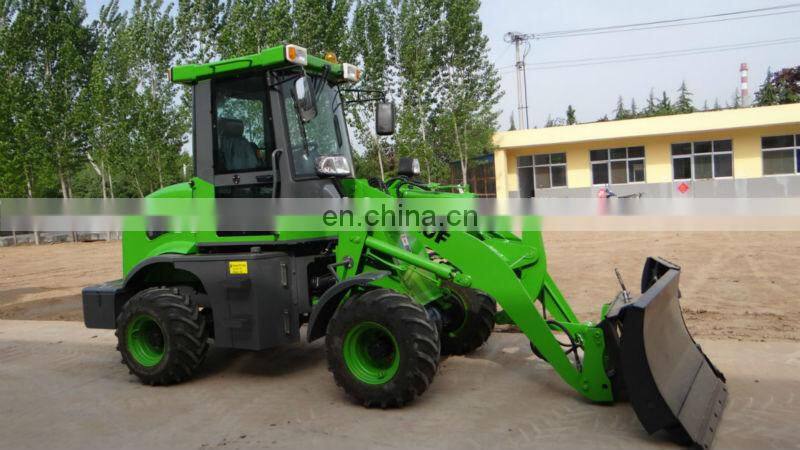

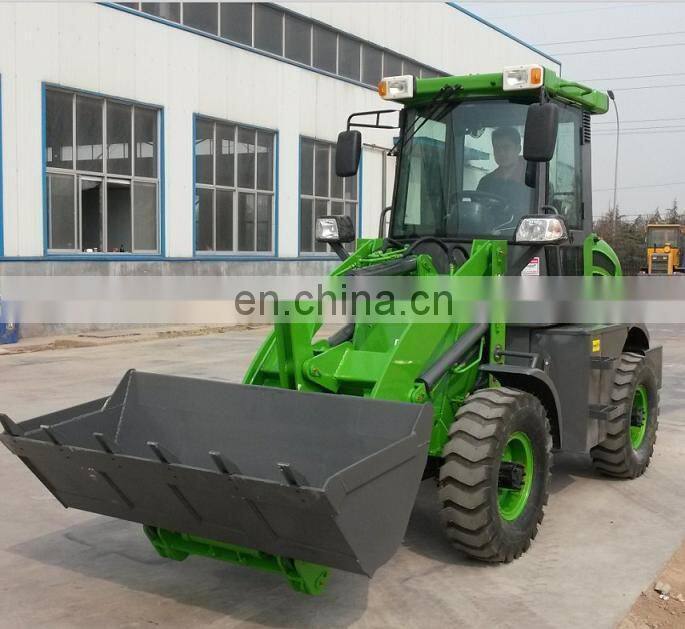

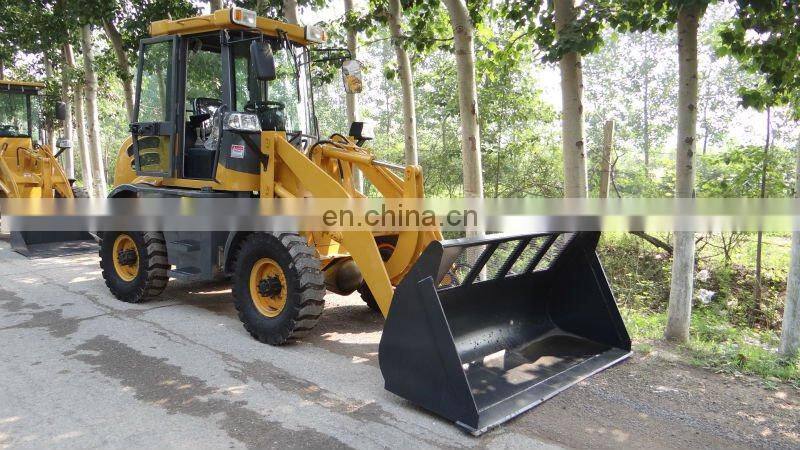

ZL10F Construction Mini Wheel Loaders With Post Hole Digger photo-1

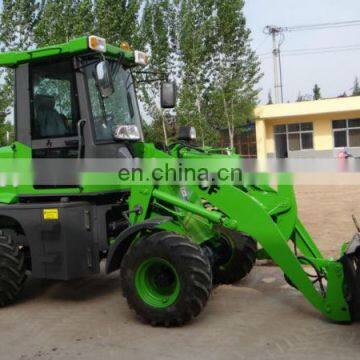

ZL10F Construction Mini Wheel Loaders With Post Hole Digger photo-2

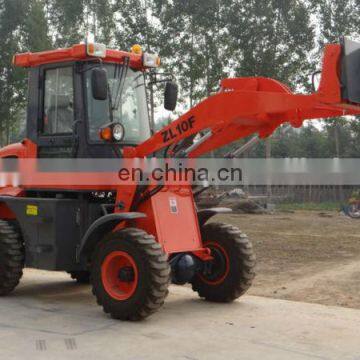

ZL10F Construction Mini Wheel Loaders With Post Hole Digger photo-3

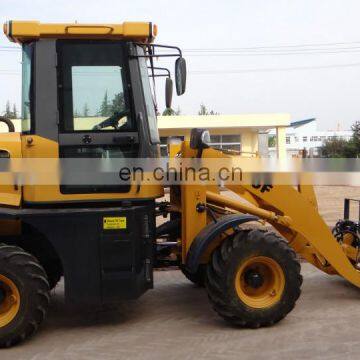

ZL10F Construction Mini Wheel Loaders With Post Hole Digger photo-4
US$ 5,500 - 6,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
MAP
Place of Origin:
Shandong, China
Model Number:
ZL10F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name MAP
Place of Origin Shandong, China
Model Number ZL10F
Type Mini Loader
Certification ce, CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Condition New
Dimension(Long * Breadth * High) 4750*1700*2650
Moving Type Wheel Loader
Rated Load 1000kg



Weifang Map Power Company, supply all kinds of agriculture machines like dumpers, loaders, tractors, concrete mixer, forklifts, excavators and so on. We keep diverse products according to customer and market demand, and supply adjustable designed machine to adapt the using environment and the market better.



ZL10F Wheel Loader Main Features:

1. 4*4 wheel drive, rated load 1000kg

2. bucket capacity:0.45cbm, dump clearance 2.65m

3. construction gear-box shaft drive transmission (mechanical drive) with clutch

4. Changchai 490 diesel engine, 33kw

5. tire model: 1200-16.0 or 1490-16





Here is the detailed specification of our 1.0T wheel loader, pls kindly check:

Wheel loader model ZL10F
Engine Details Model KM385
Engine Type In-line arrangement, Water cooled,3 cylinder diesel engine
Rated Power 20kw
Rated Speed 2200rpm
Buchet Bucket Capacity 0.45m³
Bucket Type Heavy-duty bolt on teeth
Rated Load 1000kg
Total Weight 2500kg
Overall Dimensions Overall Length 4750mm
Overall Height 2650mm
Overall Width 1700mm
Max. Discharge Height 2200mm
Wheel Base 1580mm
Tread 1400mm
Operating
Specification
Steering system Articulated Frame with Hydraulic
steering
Min. Turning Radius 3900mm
Transmission Hydraulic Motor
Brake System Service Brake Four wheel Hydraulic spread-shoed
brake
  Parking Brake Hand Operated
Tyre 8.25-16

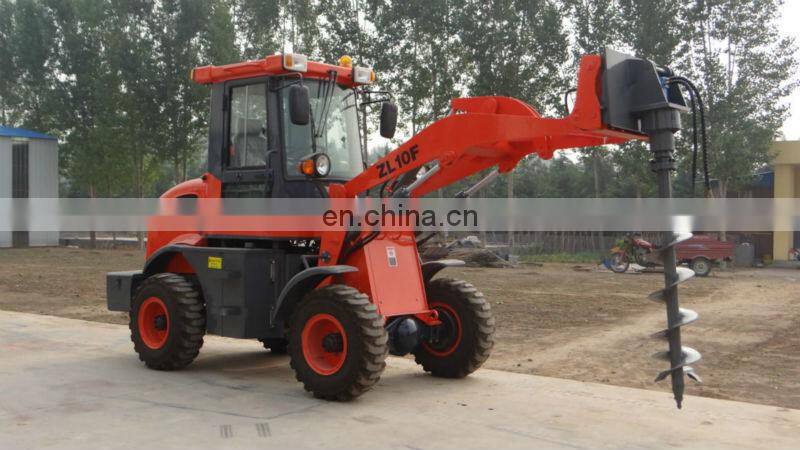

 ZL10F construction mini wheel loaders with post hole digger

Adjustable design and OEM are available from us. Any questions or special requirements, contact me as free pls, thank you. Welcome to our factory for visit.

ZL10F construction mini wheel loaders with post hole diggerZL10F construction mini wheel loaders with post hole diggerZL10F construction mini wheel loaders with post hole diggerZL10F construction mini wheel loaders with post hole digger
