Brand Name MAP
Place of Origin Shandong, China
Type Front Loader
Certification ce
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Condition New
Dimension(Long * Breadth * High) 4200X1685X2500MM
Moving Type Wheel Loader
Rated Load 1000kgs

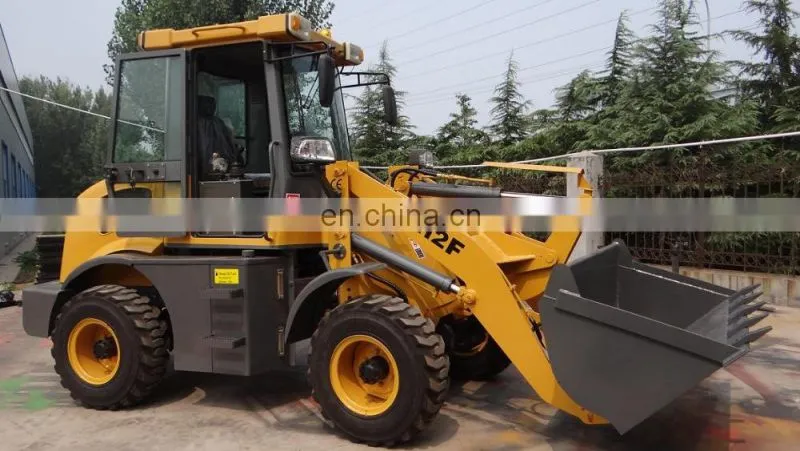

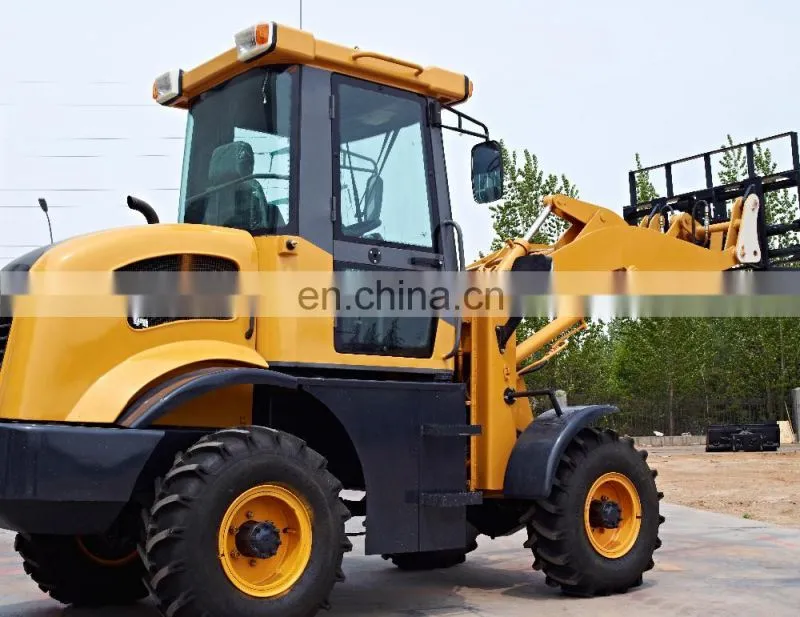

CE  Approved 1.0 Ton Mini Hydraulic Site dumper

4*4 wheel drive

Full seal cabin

Hot sale 1.0TON Mini Hydraulic Site DumperHot sale 1.0TON Mini Hydraulic Site DumperHot sale 1.0TON Mini Hydraulic Site Dumper



Joy stick

Engine Details

Model

Changchai490

Engine type

In-line arrangement, water-cooled, four-cycle diesel Engine

Rated Power

29kw, (39.44H.P.)

Rated Speed

2200 r/min

Min.ful consumption

230 g/kw.h

Bucket

Bucket Capacity

0.5m3

Bucket type

Heavy-duty bolt on teeth

Max. Breakout Force

36 KN

Rated Load

1000 kg

Operating Weight

3100 kg

Overall Dimensions

Overall Length

4200 mm

Overall Height

2500 mm

Overall Width

1685mm

Max. discharge height

2200 mm

Wheel base

1580 mm

Tread

1400 mm

Operating Specifications

Steering System

Articulated Frame with hydraulic power steering

Min Turning Radius

3900 mm

Transmission System

Gear box

Brake System

Service Brake

Four Wheel Hydraulic spread-shoed brake

Parking Brake

Hand operated

Tyre

825-16





 Hot sale 1.0TON Mini Hydraulic Site Dumper
