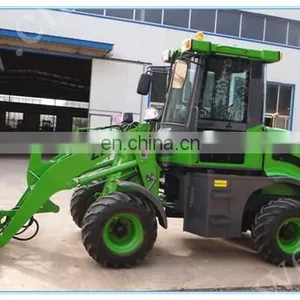

Zl10f Mini Loader small manual mini garden wheel loader
- 300 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
Product Details
Brand Name: | MAPPOWER | Place of Origin: | Shandong, China | Model Number: | ZL10F |
Type: | Front Loader | Certification: | CE | After-sales Service Provided: | Overseas service center available |
Warranty: | 1 Year | Condition: | New | Dimension(Long * Breadth * High): | 4750 mm *2650 mm*2650 mm |
Moving Type: | Wheel Loader | Rated Load: | 1000kgs, 1000kgs |
Product Description
Zl10f Mini Loader small manual mini garden wheel loader
(***For the ZL10F Wheel Loader We Offer You One Year Warranty Time And Whole Life Time Technical Support***)
Specifications
1.Manufacturer
2.CE approved
3.Engine:Changchai 490
4.Rated load:1000Kg/1Ton
5.Front discharge
6.Mechanical drive
Product Description

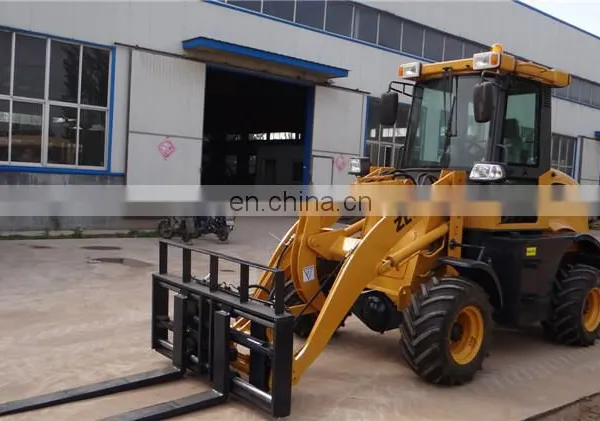

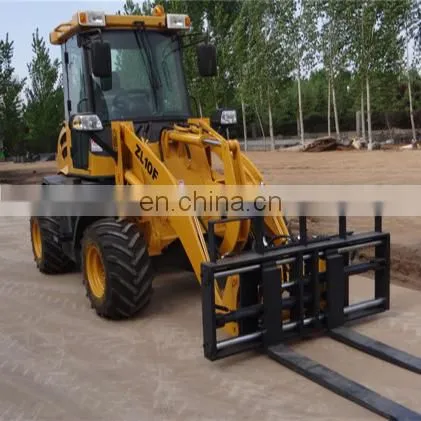

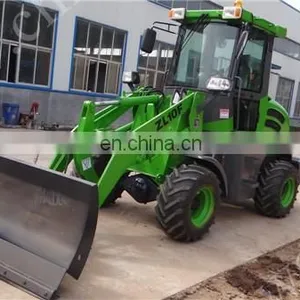

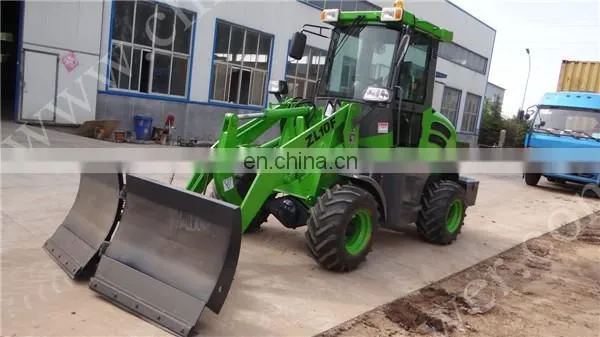

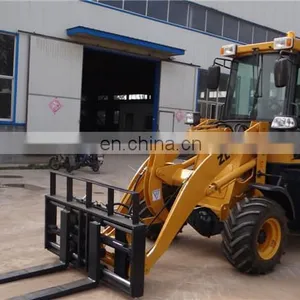

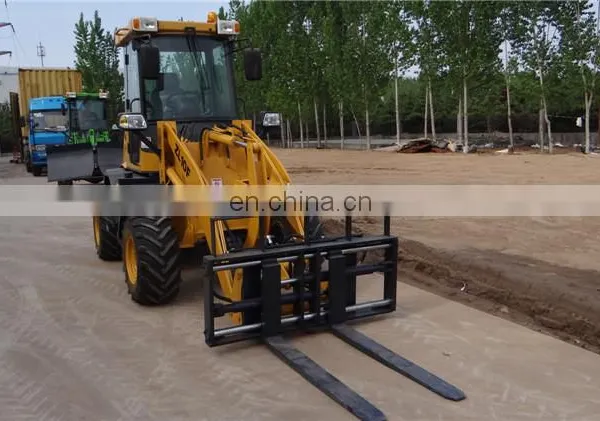

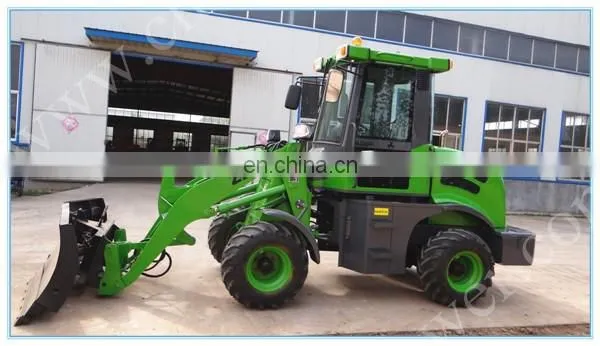

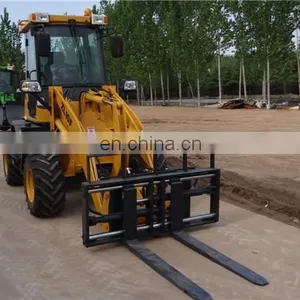

Multi-function Wheel Loader ZL10F/1.0 Ton loading capacity can be with snow blade, snow bucket, pallet fork, Grapple fork,4 in 1 Bucket, baler, snow blower, Grass fork, Grader, road sweeping machine, light bucket, auger and etc.

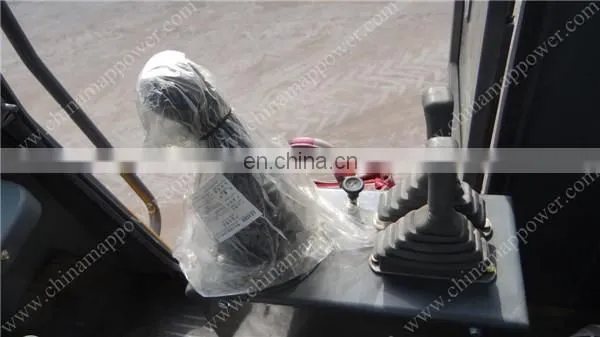

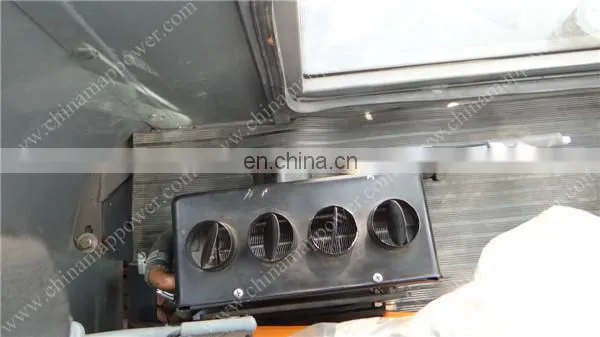

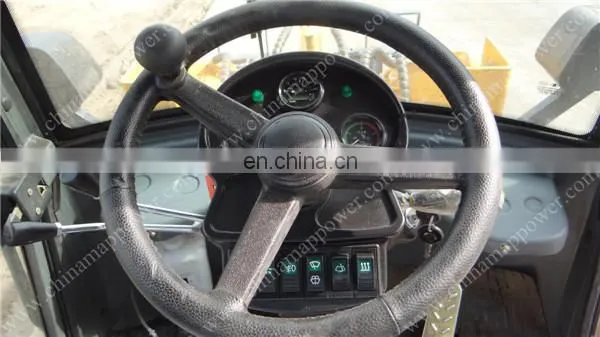

Wheel loader 1.0ton equip with hydraulic 240 torque converter,3-way pilot control, adjustable steering wheel, quick hitch, luxury seat, new cabin with warm and new engine cover, bigger tire
Features:
1. Hydro-mechanical transmission
2. Central articulated frame and load sensing hydraulic steering gear.
3. Four-wheel drive, low-pressure wide base off-road tires and an oscillating tear axle
4. Single-pipe type hydraulic four-wheel brake.
5. fully enclosed cab and the seats

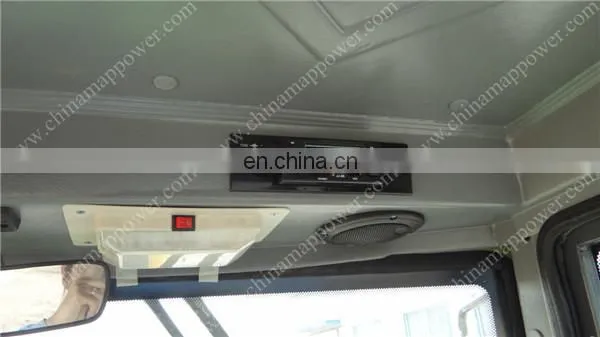

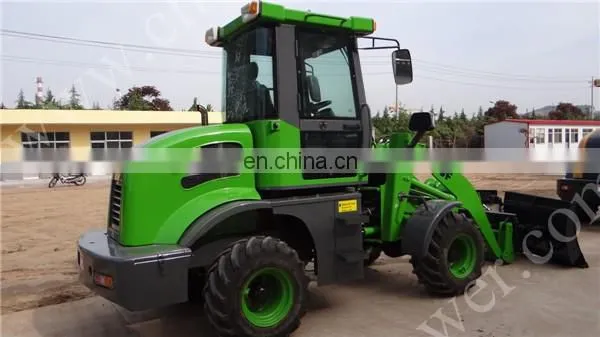

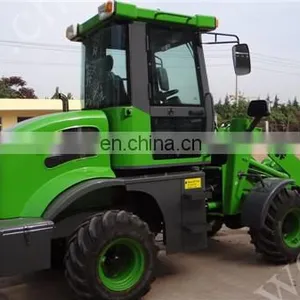

Detailed Picture:
Packaging & Shipping
1 Packaging Details: 3 units in 1 40'HQ container
2 Delivery Detail: 20days after receiving your deposit
Why choose us ?:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service
FAQ
1. How to order?
-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
-If you still don't understand, please do not hesitate to ask me.
2. Related products?
ZL06F ZL08F ZL10F ZL12F ZL15F ZL16F ZL20F
3. How do we visit you and your factory?
-First of all, welcome you or any appointed agent to vist and inspect our factory.
-You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours)
-You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes)
-We can pick up you at Qingdao airport or Weifang railway station.
-Please kindly let us know your schedule in details, so that we can arrange everything for you.
5. Why you choose us?
-As manufacturer, our products have excellent quality and competitive price.
-Good after-sales services and 24 months warranty are visible.
-Strictly testing and checking before shipping.
-7 years experience in manufacturing and 7 years exporting experience in Alibaba and Made-In-China.
Parameters:
wheel loader ZL10F specifications | ||
Engine Details | Model | KM385 |
Engine type | In-line arrangement, water-cooled, 3 Cylinders diesel Engine | |
Rated Power | 20 kw, | |
Rated Speed | 2200 r/min | |
Min.ful consumption | 235 g/kw.h | |
Bucket | Bucket Capacity | 0.45 m3 |
Bucket type | Heavy-duty bolt on teeth | |
Rated Loading weight | 1000 kg | |
Total Weight | 2500 kg | |
Overall Dimensions | Overall Length | 4750 mm |
Overall Height | 2650 mm | |
Overall Width | 1700 mm | |
Max. discharge height | 2200 mm | |
Wheel base | 1580 mm | |
Tread | 1400 mm | |
Operating Specifications | Steering System | Articulated Frame with Hydraulic steering |
Min Turning Radius | 3900 mm | |
Transmission | Hydraulic motor | |
Brake System | Service Brake | Four Wheel Hydraulic spread-shoed brake |
Parking Brake | Hand operated | |

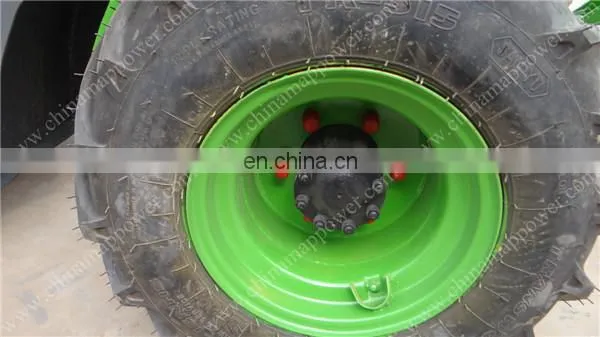

Tyre | 8.25-16 |
