1.2 Ton Zl12f Front Mini Front End Loader

1.2 Ton Zl12f Front Mini Front End Loader thumbnail-1
1.2 Ton Zl12f Front Mini Front End Loader thumbnail-2
1.2 Ton Zl12f Front Mini Front End Loader thumbnail-3
1.2 Ton Zl12f Front Mini Front End Loader thumbnail-4

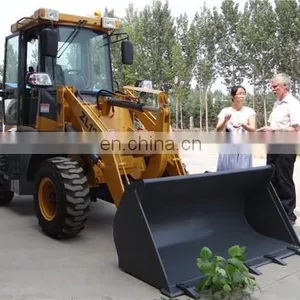

1.2 Ton Zl12f Front Mini Front End Loader thumbnail-5

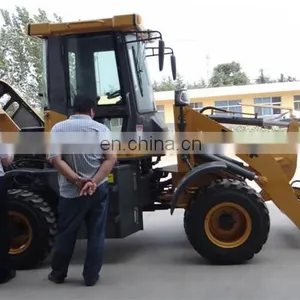

1.2 Ton Zl12f Front Mini Front End Loader thumbnail-6

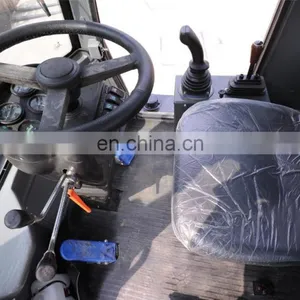

1.2 Ton Zl12f Front Mini Front End Loader thumbnail-7
1.2 Ton Zl12f Front Mini Front End Loader photo-1

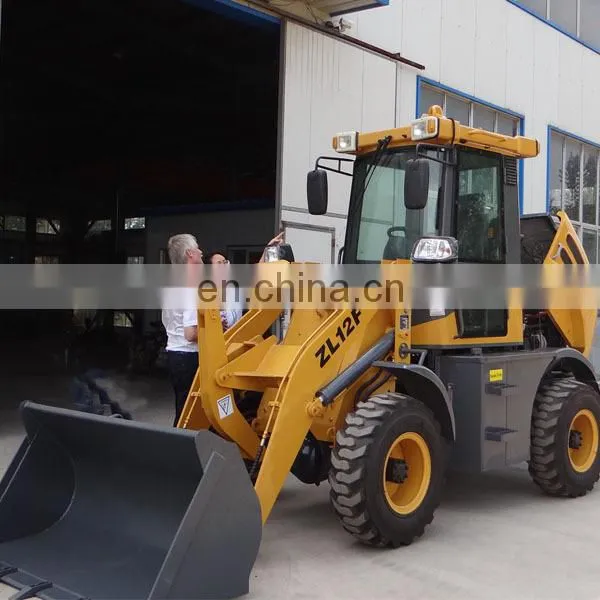

1.2 Ton Zl12f Front Mini Front End Loader photo-2

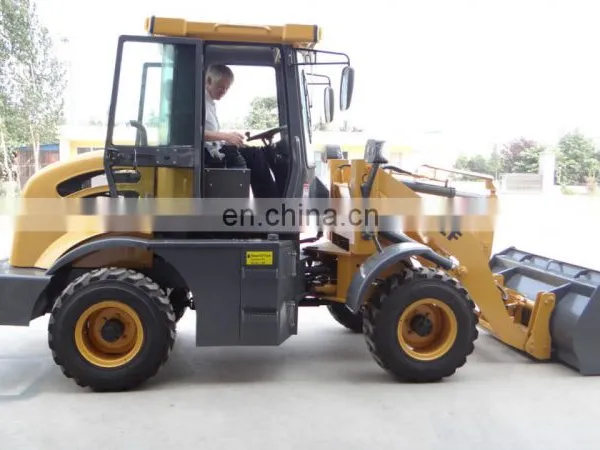

1.2 Ton Zl12f Front Mini Front End Loader photo-3
1.2 Ton Zl12f Front Mini Front End Loader photo-4

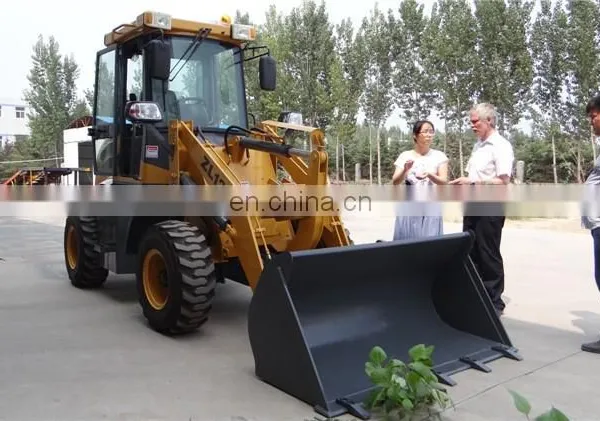

1.2 Ton Zl12f Front Mini Front End Loader photo-5

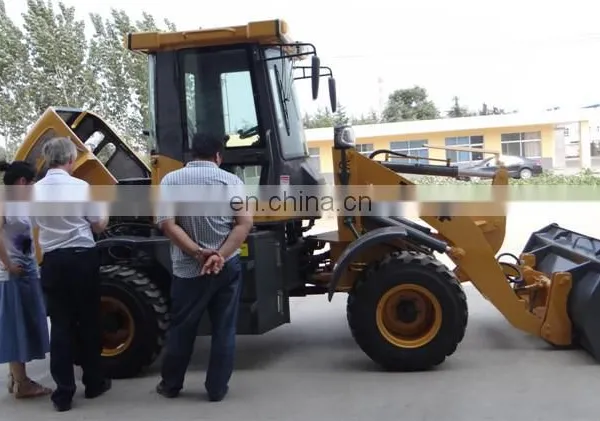

1.2 Ton Zl12f Front Mini Front End Loader photo-6

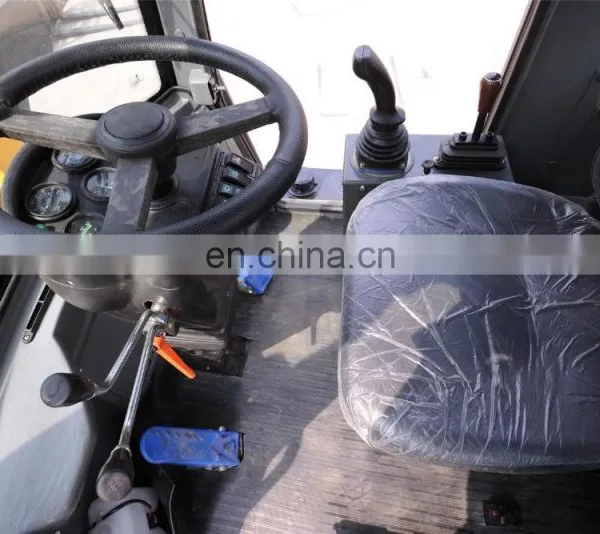

1.2 Ton Zl12f Front Mini Front End Loader photo-7
US$ 8,000 - 9,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MAPPWER
Place of Origin:
Shandong, China
Type:
Front Loader
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MAPPWER
Place of Origin Shandong, China
Type Front Loader
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Condition New
Dimension(Long * Breadth * High) 4750 mm*1700 mm*2650 mm, 4200X1685X2500
Moving Type Wheel Loader
Rated Load 1000KGS, 1200kg

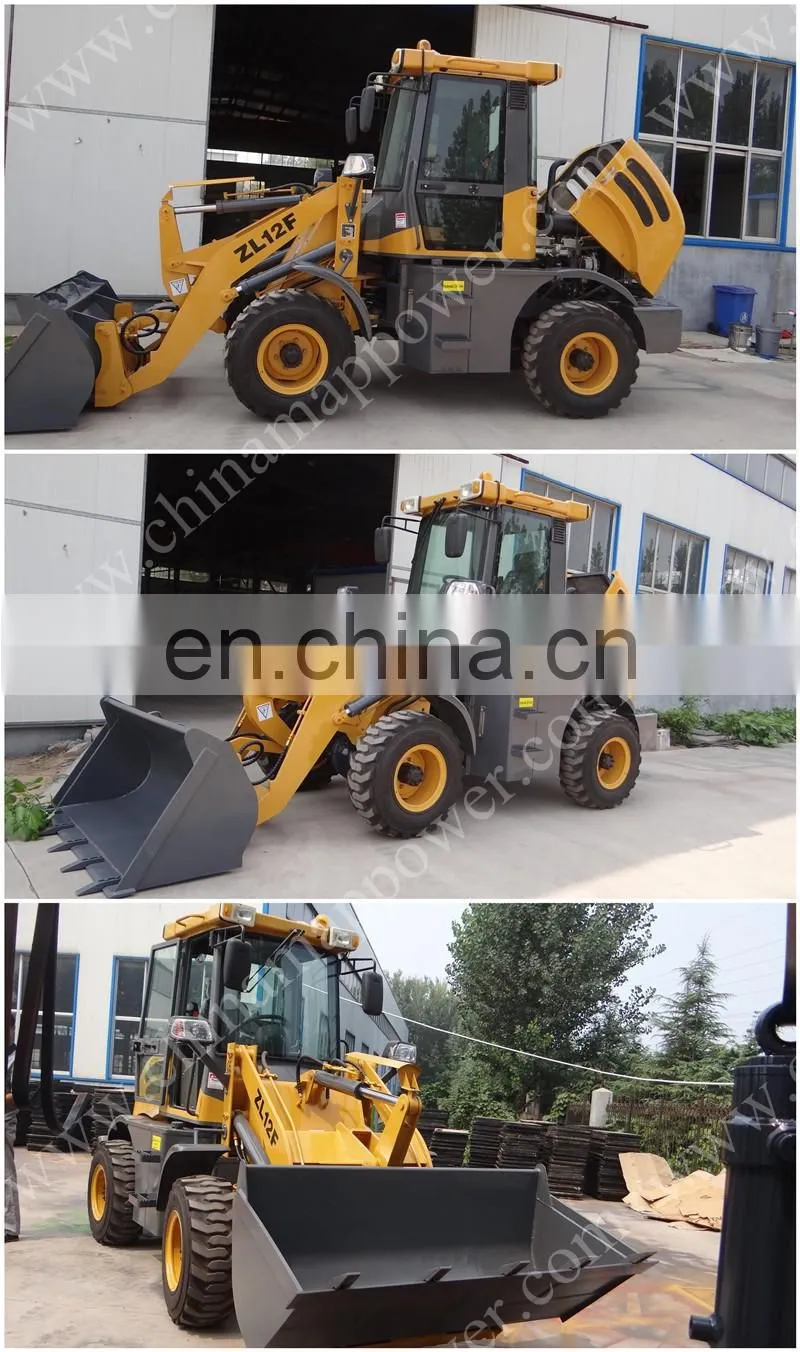

1.2 Ton Zl12f Front Wheel Loader mini payloader

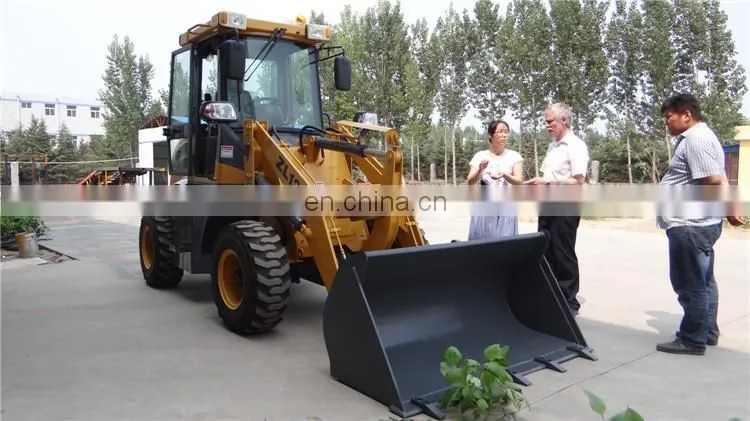

1.2 Ton Zl12f Front mini front end loader

1.2 Ton Zl12f Front mini front end loader1.2 Ton Zl12f Front mini front end loader
(***For The Wheel Loader We Offer you 1 Year Warranty And Wholelife Technical Support***)


Specification of ZL12F wheel loader

Rated Loading weight 1200kg
Rated Bucket Capacity 0.50m3
Whole weight 4500KG
Highest walking speed 24km/h
Engine Power 35kw/2200RPM
Engine Model "Changchai 4L68
16 Units inside 1X40' FCL
Engine type 4 Cylinders diesel engine
Chinese well-known brand
Dump cleanrance 2700mm
Min. Turning radicus 4360mm
Overall dimension 5430 X1800X2750mm
Drive type 4WD
Transmission gear box with torque convertor
Shipment 2units shipped in 1X40HC
Gear 2 forward and 2 backward
Tread 1310mm
Wheel base 2100mm
Tyre size 1100-16

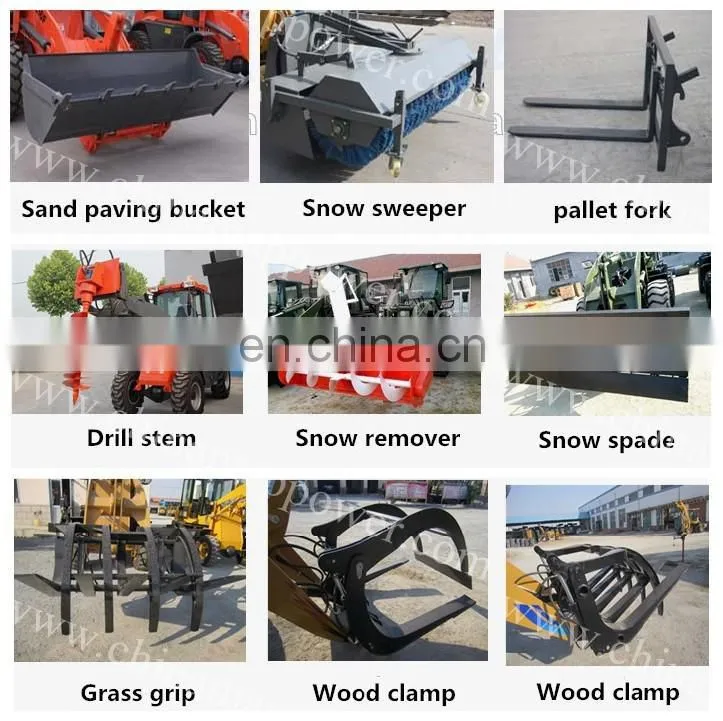

Front Equipments with the ZL12F

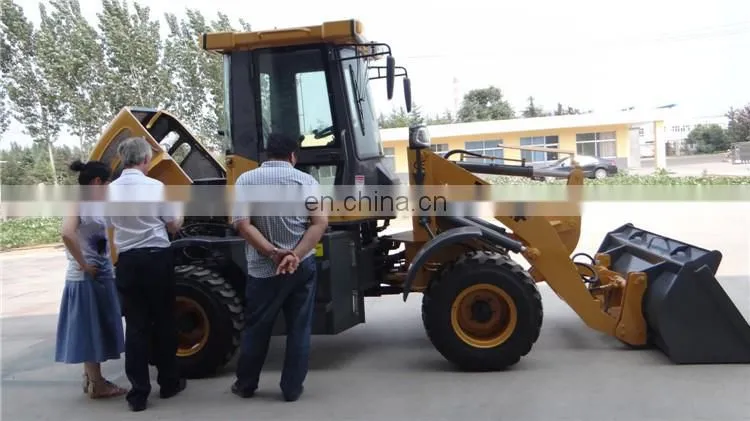

1.2 Ton Zl12f Front mini front end loader

Trade Information:

Time of manufacture: 20 days.
Delivery methods by sea.
Payment terms: 30% TT in advance, then 70%TT balance before shipment.
Warranty period: 12 months.
Price validity: 20 days.

Certificates:

1.2 Ton Zl12f Front mini front end loader

Parameters:

Specifications and Overall Dimensions
Wheel loader Model ZL12F
Overall Dimensions Overall Length 42450mm
Overall Width 1850mm
Overall Height 2650mm
Max. Discharge Height 2750mm
Wheel Base 1580mm
Tread 1400mm
Engine Details Model Changchai 490 4L68 or Xinchai A498(EURO III)
Engine Type In-line arrangement, Water cooled, 4 cylinders diesel engine
Rated Power   37KW
Rated Speed 2400rpm
Transmission System Torque converter Model YJ240
Gear box 2 forward + 2 Backward
Hydraulic system Working Pump CBGJ1045
Steering System Type Articulated hydraulic steering
Turning angle 27° +/- 1
Trunning Radius(MM) 3000MM
Brake system Brake Type Oil break(Vacuum booster)
Tyres Standard tyre 12-16.5
Option wider tyre 14-17.5
Bucket Bucket Capacity 0.50m³
Bucket Type Heavy-duty bolt on teeth
Rated Load 1200kg
Total Weight 2800kg

 1.2 Ton Zl12f Front mini front end loader1.2 Ton Zl12f Front mini front end loader

1.2 Ton Zl12f Front mini front end loader
