Home > Products > Site dumper > 2T FCY20 garden mini dumper truck, mini dunper 2 ton, 4wd mini truck

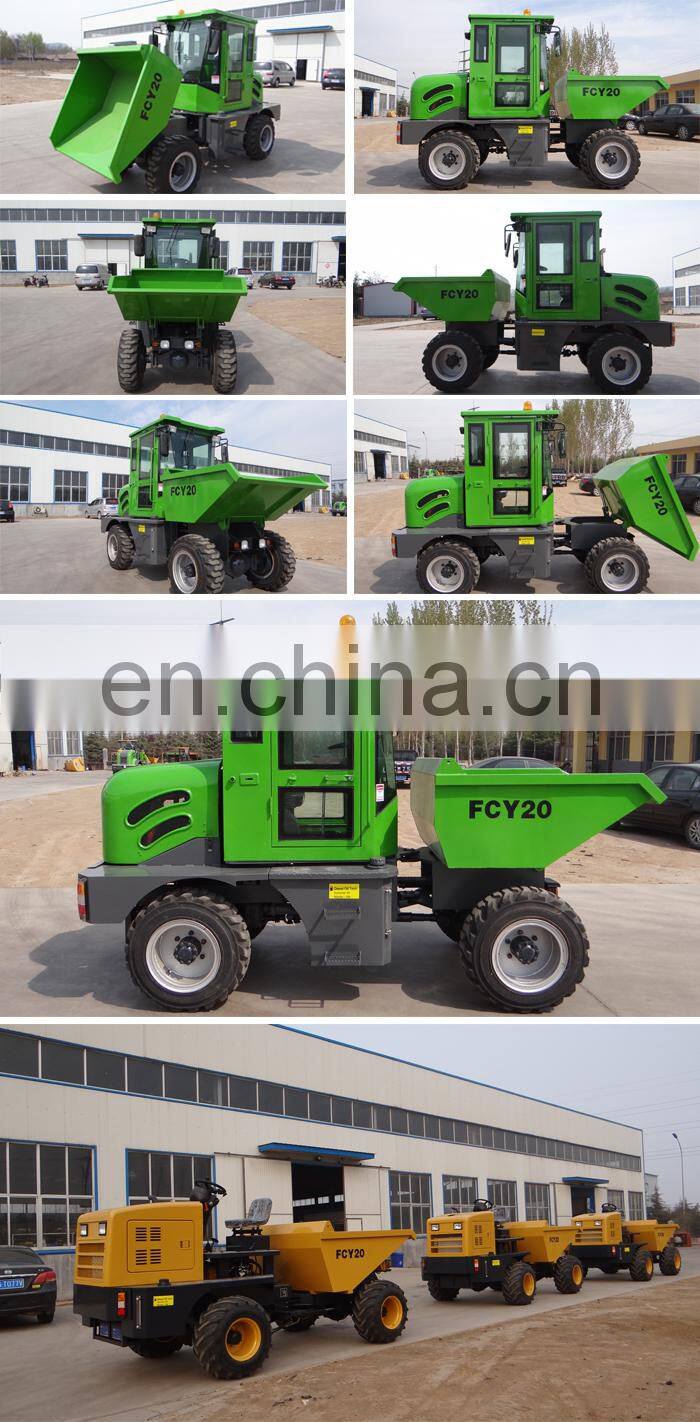

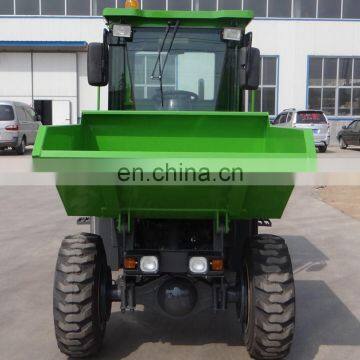

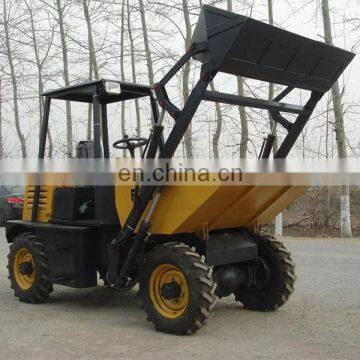

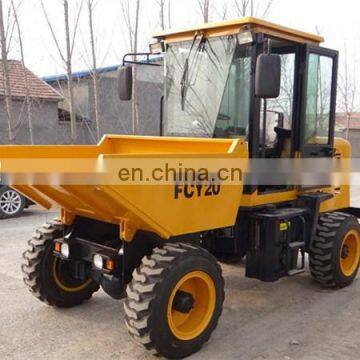

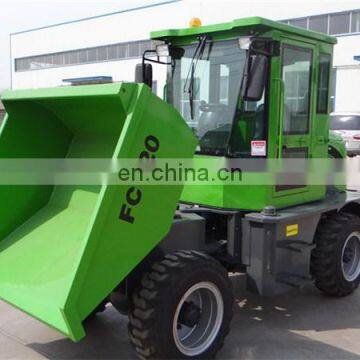

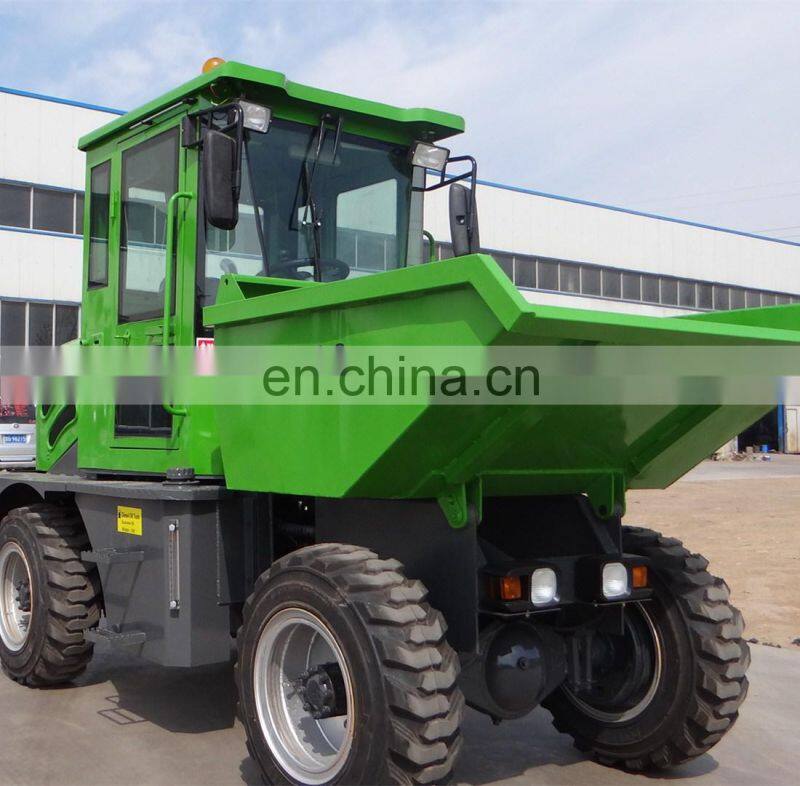

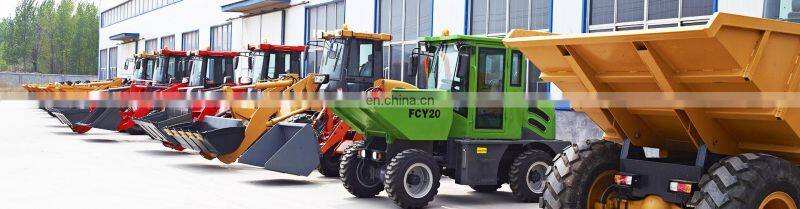

2T FCY20 garden mini dumper truck, mini dunper 2 ton, 4wd mini truck
- 150 Unit / Units per Month
- Qingdao china .Shanghai china or Tianjian China
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
FCY20 Construction Mini Dumper
Product Description
Site Dumper FCY20 Technical Specifications | ||
Item | Specifications | |
Bucket capacity | 1.0m3 | |
Rated load | 2000kg | |
Operating weight | 1850kg | |
Grade ability | 21º | |
Min turning radius | 4000mm | |
wheel tread/wheel base | 1960mm/1360mm | |
Overall dimension | 3017*1900*2465(without cab) | |
Engine | Model | NB490 / 3 cylinder |
Type | water-cooled | |
Rated power | 25kw/2200RPM | |
Max torque | 2200r/min | |
Transmission | Gearbox | Gear transmission |
clutch | dry friction | |
Nos of shifts | move forward 4 back 4 | |
Max speed | 24km/hr | |
Rear and front axle | 4×4,front axle fixed, rear axle swing(+/-110) | |
Steering | Type | hydraulic steering |
Steering angle | 35 degrees on both sides | |
Hydraulic system | Pressure | 16MPA |
Brake type | Drum brake | |
Tyre | Size | 8.25-16 |
Fuel capacity | Fuel tank | 26L |
Hydraulic oil tank | 26L | |
Cab | Optional |
Packaging & Shipping
Related Products
Company information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
Our Services
1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.
3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .
